TECHNICAL FEATURES
- Hydraulic control with FPS system (Bitubo Patent) Ø27mm Ergal piston
- Ø 10mm pumping rod with anti-friction surface coating
- Mechanical bottom-out with polyurethane buffer in NBR
- Upper fork cap with integrated spring preload adjustment
- Independent damping adjustment in compression and extension
- Coaxial Compensation Chamber (Bitubo Patent)
- Ergal cartridge body with anti-friction surface coating
- Hydraulic lubrication separated from sliding lubrication
- Pressurization force control system
LC: This product has a high percentage of special light alloys and details optimized in weight, with the aim of achieving the maximum lightness possible.

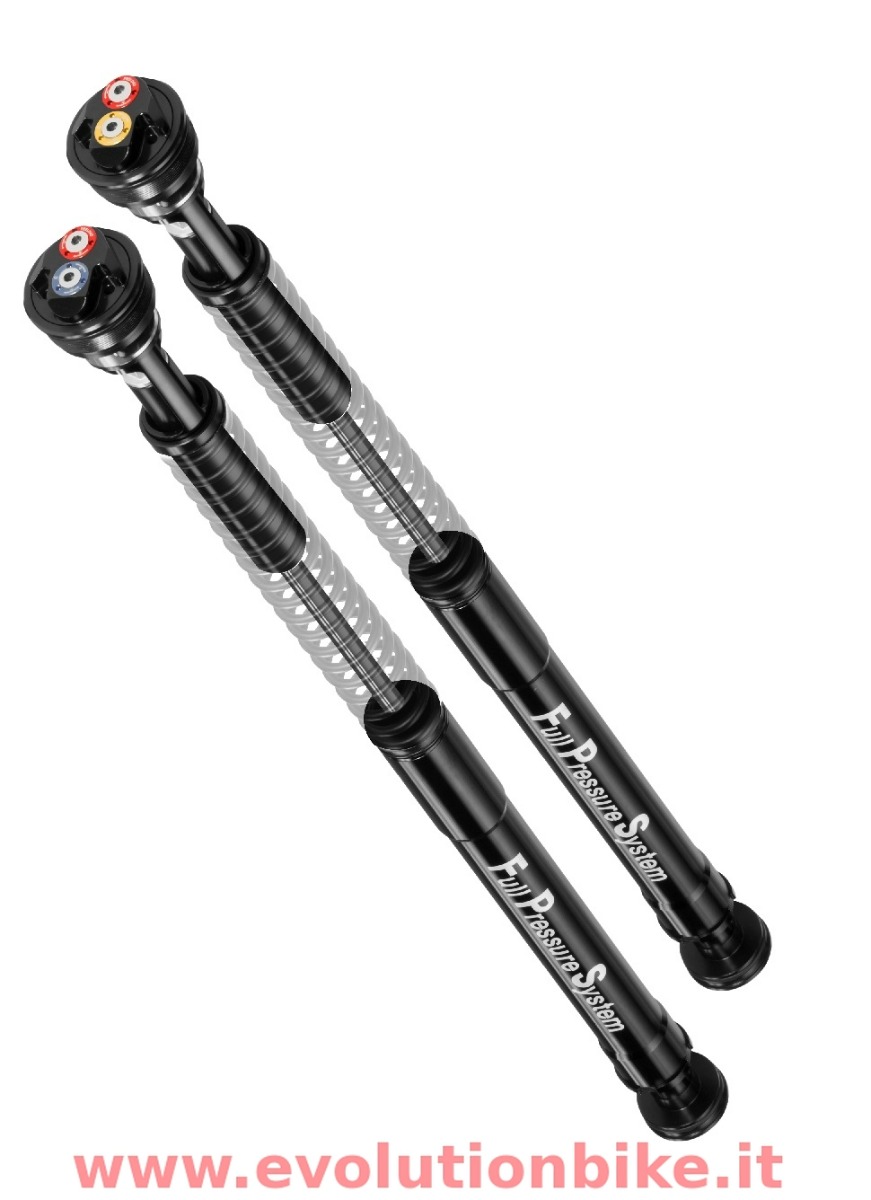

FPS: Full Pressure System exhibits the highest efficiency and practicality of this patented system. This innovative damping system provides immediate damping, while avoiding any cavitations of the internal fluid. The system is gas pressurized at low pressure. The cartridges are asymmetric: one controls compression, the other controls rebound. With two alternate chambers at both ends, it is possible to create high damping force even at very low speed.
FPS: Full Pressure System exhibits the highest efficiency and practicality of this patented system. This innovative damping system provides immediate damping, while avoiding any cavitations of the internal fluid. The system is gas pressurized at low pressure. The cartridges are asymmetric: one controls compression, the other controls rebound. With two alternate chambers at both ends, it is possible to create high damping force even at very low speed.
F4 750
- MY 1999
- MY 2000
- MY 2001
- MY 2002
- MY 2003
F4 1000 S
- MY 2004
- MY 2005
- MY 2006
F4 1000 R
- MY 2006
- MY 2007
F4 312 R
- MY 2007
- MY 2008
F4 1078
- MY 2008
- MY 2009
Brutale 750
- MY 2003
- MY 2004
- MY 2005
Brutale 910 S
- MY 2005
- MY 2006
Brutale 910 R
- MY 2006
- MY 2007
Brutale 989
- MY 2007
- MY 2008
Brutale 1078
- MY 2007
- MY 2008
- MY 2009
Brutale 920
- MY 2011
- MY 2012
Brutale 990
- MY 2010
- MY 2011
- MY 2012
Brutale 1090
- MY 2013
- MY 2014
- MY 2015
- MY 2016
- MY 2017
- MY 2018
Brutale 1090 R
- MY 2012
- MY 2013
- MY 2014
- MY 2015
Brutale 1090 RR
- MY 2010
- MY 2011
- MY 2012
- MY 2013
- MY 2014
- MY 2015
- MY 2016
- MY 2017
- MY 2018
