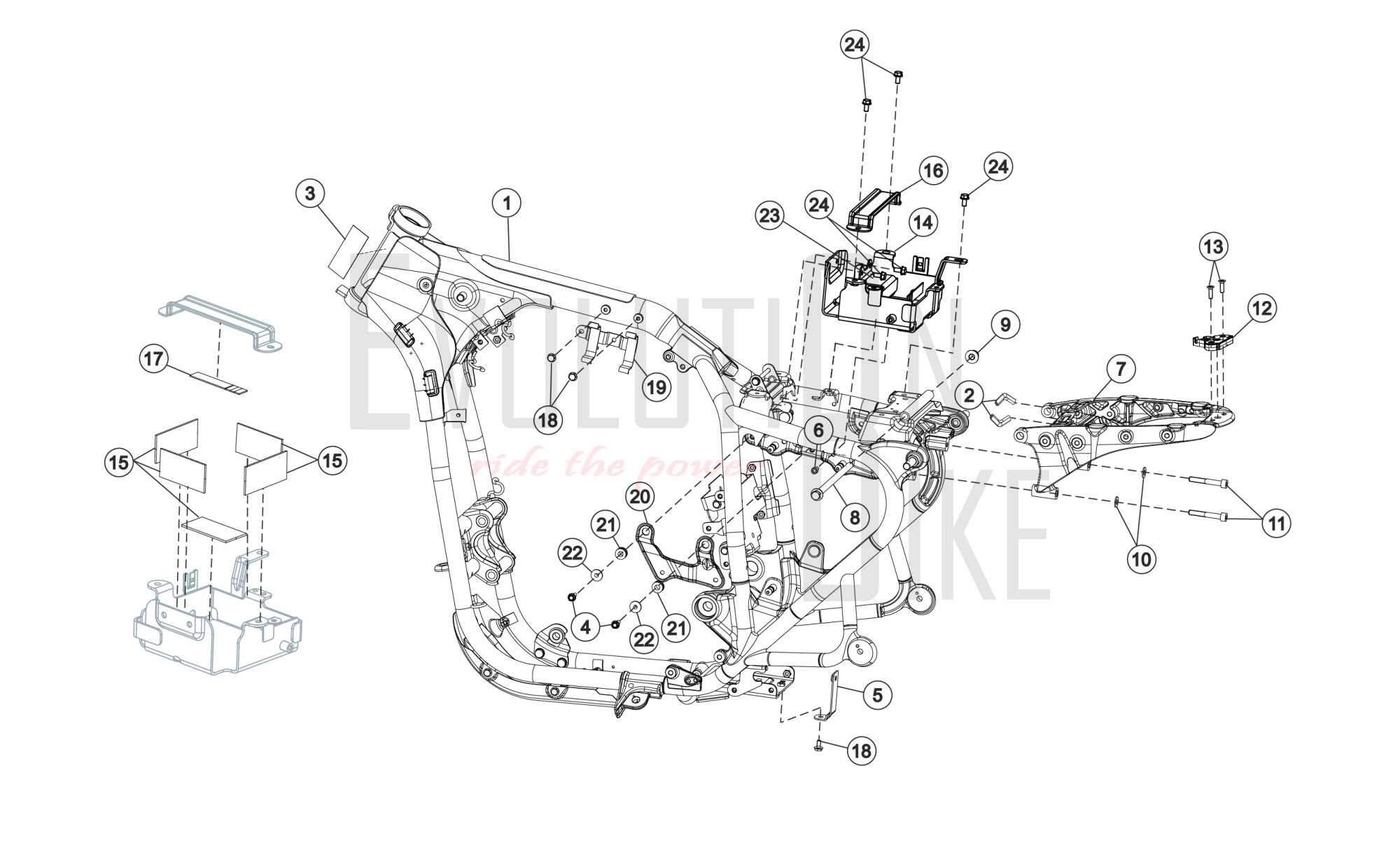

038 - FRAME - SUB FRAME MOUNTINGS 2

017 - EVAPORATIVE EMISSION SYSTEM - FUEL TANK SYSTEM 017 - EVAPORATIVE EMISSION SYSTEM - FUEL TANK SYSTEM 018 - THROTTLE BODY COVER ASSY 018 - THROTTLE BODY COVER ASSY 019 - AIR FILTER ASSY 019 - AIR FILTER ASSY 020 - FRONT BRAKE SYSTEM 020 - FRONT BRAKE SYSTEM 021 - BRAKE SYSTEM ASSY 021 - BRAKE SYSTEM ASSY 022 - FOOTREST ASSY AND REAR BRAKE PEDAL 022 - FOOTREST ASSY AND REAR BRAKE PEDAL 023 - FRONT WHEEL ASSY 023 - FRONT WHEEL ASSY 024 - FUEL TANK ASSY 024 - FUEL TANK ASSY 025 - FRONT MUDGUARD ASSY 025 - FRONT MUDGUARD ASSY 026 - RADIATOR 026 - RADIATOR 027 - REAR FENDER ASSY 027 - REAR FENDER ASSY 028 - REAR WHEEL ASSY 028 - REAR WHEEL ASSY 029 - SEAT ASSY 029 - SEAT ASSY 030 - SILENCER ASSY 030 - SILENCER ASSY 031 - SILENCER ASSY EURO5+ 031 - SILENCER ASSY EURO5+ 032 - STEERING 032 - STEERING 033 - FRONT FORK ASSY 033 - FRONT FORK ASSY 034 - FRONT FORK MOUNTINGS 034 - FRONT FORK MOUNTINGS 035 - FAIRING ASSY 035 - FAIRING ASSY 036 - SIDE PANELS BASH PLATE ECU COVER LOCK SET 036 - SIDE PANELS BASH PLATE ECU COVER LOCK SET 037 - FRAME - SUB FRAME MOUNTINGS 1 037 - FRAME - SUB FRAME MOUNTINGS 1 038 - FRAME - SUB FRAME MOUNTINGS 2 038 - FRAME - SUB FRAME MOUNTINGS 2 039 - ENGINE MOUNTING SYSTEM 039 - ENGINE MOUNTING SYSTEM 040 - HANDLE BAR ASSY 040 - HANDLE BAR ASSY 041 - SWING ARM ASSY - REAR SHOCK ABSORBER - SIDE STAND ASSY 041 - SWING ARM ASSY - REAR SHOCK ABSORBER - SIDE STAND ASSY 046 - HOMOLOGATION - INFORMATION STICKERS 046 - HOMOLOGATION - INFORMATION STICKERS 047 - DECALS 047 - DECALS
038 - FRAME - SUB FRAME MOUNTINGS 2
Ref. SKU Description Notes Availability
Price (tax excl.)
1 T08000B10470N FRAME ASSEMBLY KIT Available on backorder
€1.181,66
1
2 T08000B10340N BEADING FRAME Available on backorder
€0,54
1
3 T08000KE0020N ANTI ABRASIVE TAPE HEAD PIPE Available on backorder
€0,95
1
4 TSF0102271 FLANGE BOLT 6*18(FAN BOLT) Available on backorder
€0,36
1
5 T08000B10250N STARTER RELAY MOUNTING BRACKET Available on backorder
€2,12
1
6 SP0306006 SCREW TCEI M6X12 UNI 5931 Available on backorder
€1,22
1
7 T08000B10070W SUB FRAME COMPLETE WELDED GLOSS BLACK Available on backorder
€402,03
1
8 SF0102617 BOLT HEX FL M10X1.5X200X10.9 Available on backorder
€7,07
1
9 SF0315017 NUT HX NYL FL M10X1.50X13.5X10 Available on backorder
€1,17
1
10 TSF0401129 WASHER M8 (8.4X17X1.6) Available on backorder
€0,54
1
11 SF0224075 SOCKET HEAD SCREW M8X55 (WHITE) Available on backorder
€1,17
1
12 MF01450000400 SEAT LATCH (A02) Available on backorder
€5,04
1
13 SF0211010 SCREW FTCS CR M6 X 1 - 20 Available on backorder
€0,54
1
14 T08000B10150N BATTERY BOX Available on backorder
€63,99
1
15 T1503DKE0250N PAD BATTERY BOX Available on backorder
€0,54
1
16 T08000B10160N CLAMP BATTERY Available on backorder
€5,99
1
17 T15010KE0840N FOAM BATTERY CLAMP (J101) Available on backorder
€0,54
1
18 95701-06012-00 FLANGE BOLT M6X12 Available on backorder
€0,54
1
19 T08010B10520N BRACKET BS IV CANISTER MOUNTING LOOSE Available on backorder
€4,82
1
20 T08000B10200N BRACKET AIR FILTER MOUNTING LOOSE LH Available on backorder
€7,11
1
21 T13160KG0150N GROMMET FOR J103 Available on backorder
€0,54
1
22 T13160KG0210N COLLAR FAIRING MOUNTING J103 Available on backorder
€1,35
1
23 T08000B10460N LOOSE BRACKET BATTERY MOUNTING Available on backorder
€6,17
1
24 TSF0102282 FLANGE BOLT M6*14 Available on backorder
€0,54
1
