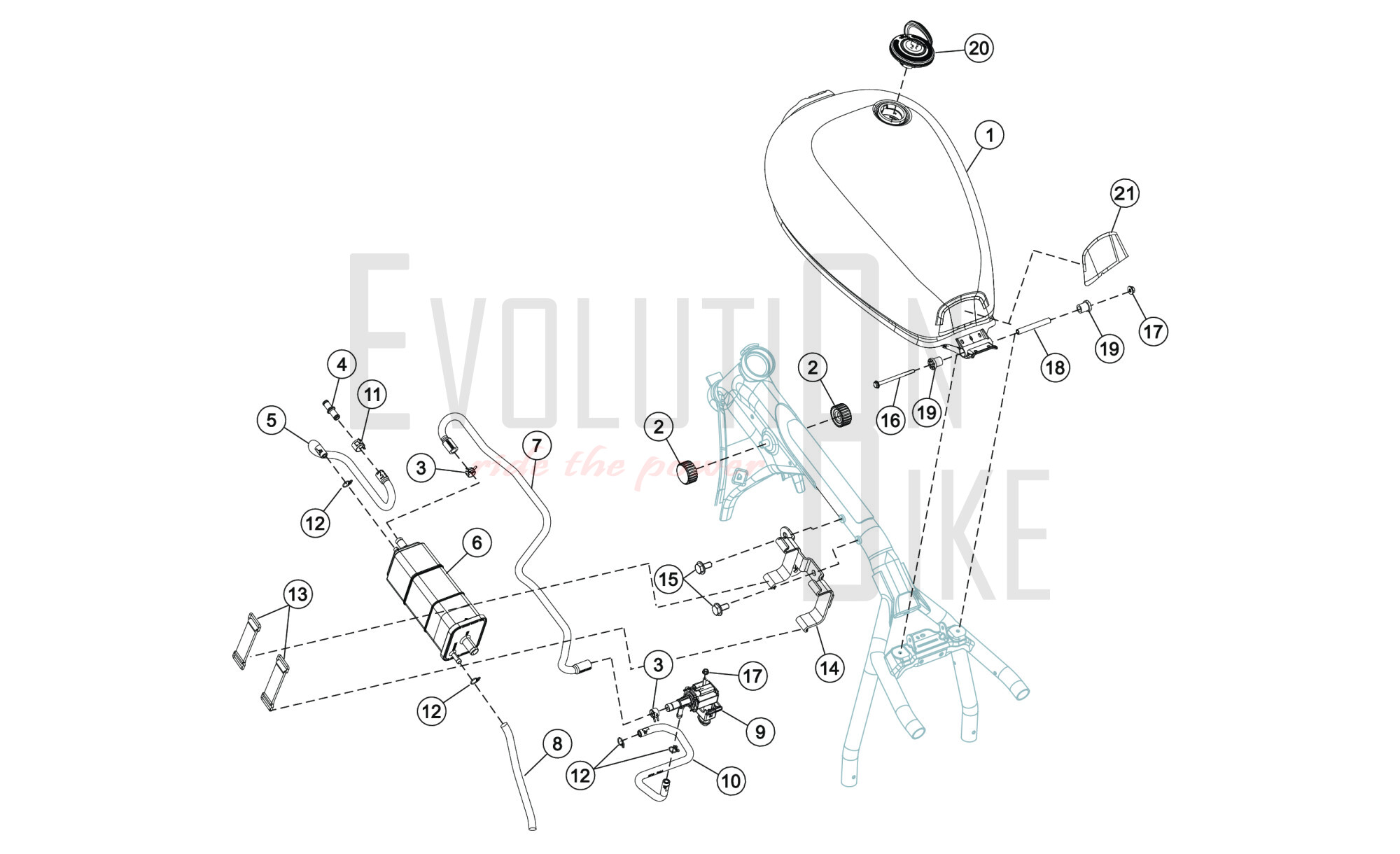

017 - EVAPORATIVE EMISSION SYSTEM - FUEL TANK SYSTEM

017 - EVAPORATIVE EMISSION SYSTEM - FUEL TANK SYSTEM 017 - EVAPORATIVE EMISSION SYSTEM - FUEL TANK SYSTEM 018 - THROTTLE BODY COVER ASSY 018 - THROTTLE BODY COVER ASSY 019 - AIR FILTER ASSY 019 - AIR FILTER ASSY 020 - FRONT BRAKE SYSTEM 020 - FRONT BRAKE SYSTEM 021 - BRAKE SYSTEM ASSY 021 - BRAKE SYSTEM ASSY 022 - FOOT REST ASSY - REAR BRAKE PEDAL 022 - FOOT REST ASSY - REAR BRAKE PEDAL 023 - FRONT WHEEL ASSY 023 - FRONT WHEEL ASSY 024 - FUEL TANK ASSY 024 - FUEL TANK ASSY 025 - FRONT MUDGUARD ASSY 025 - FRONT MUDGUARD ASSY 026 - RADIATOR 026 - RADIATOR 027 - REAR FENDER ASSY 027 - REAR FENDER ASSY 028 - REAR WHEEL ASSY 028 - REAR WHEEL ASSY 029 - SEAT ASSY 029 - SEAT ASSY 030 - SILENCER ASSY 030 - SILENCER ASSY 031 - STEERING 031 - STEERING 032 - FRONT FORK ASSY 032 - FRONT FORK ASSY 033 - FAIRING ASSY 033 - FAIRING ASSY 034 - SIDE PANELS BASH PLATE ECU COVER LOCK SET 034 - SIDE PANELS BASH PLATE ECU COVER LOCK SET 035 - FRAME SUB FRAME - MOUNTINGS 1 035 - FRAME SUB FRAME - MOUNTINGS 1 036 - FRAME SUB FRAME - MOUNTINGS 2 036 - FRAME SUB FRAME - MOUNTINGS 2 037 - ENGINE MOUNTING SYSTEM 037 - ENGINE MOUNTING SYSTEM 038 - HANDLE BAR ASSY 038 - HANDLE BAR ASSY 039 - SWING ARM ASSY - REAR SHOCK ABSORBER - SIDE STAND ASSY 039 - SWING ARM ASSY - REAR SHOCK ABSORBER - SIDE STAND ASSY 044 - HOMOLOGATION - INFORMATION STICKERS 044 - HOMOLOGATION - INFORMATION STICKERS 045 - DECALS - RAVEN BLACK 045 - DECALS - RAVEN BLACK 046 - DECALS - THUNDER GREY 046 - DECALS - THUNDER GREY 047 - DECALS - VICTOR YELLOW 047 - DECALS - VICTOR YELLOW
017 - EVAPORATIVE EMISSION SYSTEM - FUEL TANK SYSTEM
Ref. SKU Description Notes Availability
Price (tax excl.)
1 T10010B40010D FUEL TANK ASSEMBLY YELLOW AND CHROME GLO YELLOW- CHROME GLOSS Available on backorder
€354,00
1
1 T10010B40010L FUEL TANK ASSEMBLY BATTLE SHIP GREY GLOS GREY GLOSS Available on backorder
€362,85
1
1 T10010B40010E FUEL TANK ASSEMBLY EBONY BLACK GLOSS BLACK GLOSS Available on backorder
€362,85
1
2 T1001CKG0240N DAMPER TANK FRONT MOUNTING Available on backorder
€2,34
1
3 T10050KE0100N SPRING BAND CLAMP DIA 11.5MM Available on backorder
€0,90
1
4 T10000B10080N CONNECTOR EVAP TUBE Available on backorder
€0,54
1
5 T10000B10090N HOSE EVAP CONNECTOR TO CANISTER Available on backorder
€11,12
1
6 T10000KE0021N CARBON CANISTER MOJO Available on backorder
€49,82
1
7 T10000B10100N HOSE CANISTER TO CHECK VALVE BS IV Available on backorder
€12,20
1
8 T10000B10120N DRAIN TUBE CANISTER Available on backorder
€5,36
1
9 T1501PB10020N ELECTRONIC PURGE CONTROL VALVE Available on backorder
€35,64
1
10 T10000B10110N HOSE CHECK VALVE TO THROTTLE BODY Available on backorder
€13,19
1
11 SF0705068 CLAMP SPRING BAND 10 5X8 4X0 8 Available on backorder
€0,77
1
12 95002-02080 CLIP TUBE B8 Available on backorder
€0,54
1
13 T14010KE0010N TOOL KIT BAND (J101) Available on backorder
€2,61
1
14 T08010B10520N BRACKET BS IV CANISTER MOUNTING LOOSE Available on backorder
€4,82
1
15 95701-06012-00 FLANGE BOLT M6X12 Available on backorder
€0,54
1
16 SP0906034 FLANGE BOLT SH - M6 X 85 Available on backorder
€0,54
1
17 SF0303067 NUT HEX FL PR M6X1.0X7.0X8 Available on backorder
€0,54
1
18 T10010B10240N SLEEVE FUEL TANK MOUNTING Available on backorder
€3,51
1
19 T10010B10220N GROMMET TANK MOUNTING REAR Available on backorder
€1,13
1
20 T1002AB10020N FUEL TANK CAP WITH KEY Available on backorder
€168,98
1
21 T10010B10280N B1 STICKER FUEL TANK PROTECTOR Available on backorder
€1,26
1
