TECHNICAL CHARACTERISTICS:
- NOMINAL INSIDE DIAM. 1/8"
- MIN./MAX OUTSIDE DIAM. mm. 6/6,5
- MIN. BURSTING PRESSURE 1200 bar
- TEST PRESSURE 600 bar
- WORKING PRESSURE 150 bar
- MIN. RADIUS OF CURVATURE mm. 35
- WORKING TEMPERATURE - 40° C + 204° C ( MAX 240°C )

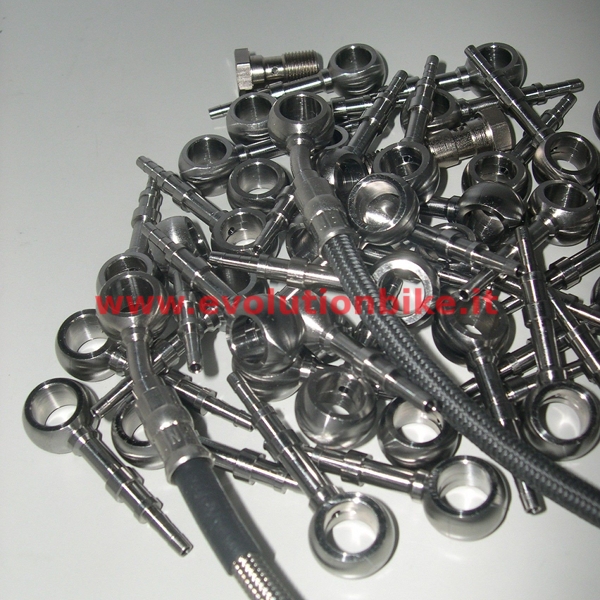

COMPOSITION:
- Titanium grade 5 fitting
- Stainless steel bushing to AISI 303
- 1st. CARBOFIBRE braiding
- 2nd. CARBOFIBRE braiding
- PTFE core
WHIP TEST: CARBOTECH hose whip test performance exceeds FMVSS 106 requirements.
F4 750
- MY 1999
- MY 2000
- MY 2001
- MY 2002
- MY 2003
F4 1000 S
- MY 2004
- MY 2005
- MY 2006
F4 1000 R
- MY 2006
- MY 2007
F4 312 R
- MY 2007
- MY 2008
F4 1078
- MY 2008
- MY 2009
