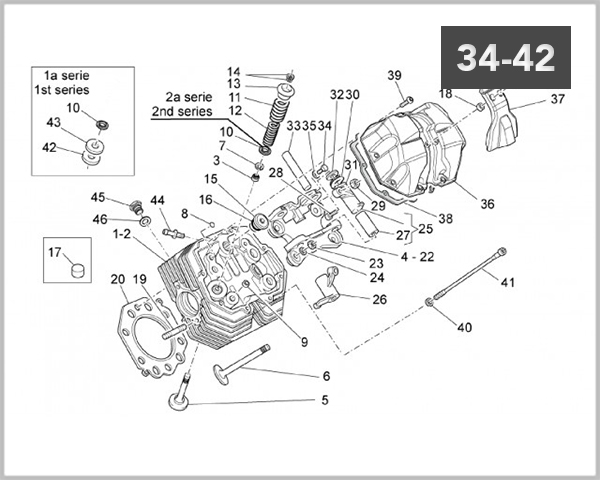

34-42 - CYLINDER HEAD AND VALVES 2

34-40 - CRANKCASE 34-40 - CRANKCASE 34-41 - CYLINDER HEAD AND VALVES 1 34-41 - CYLINDER HEAD AND VALVES 1 34-42 - CYLINDER HEAD AND VALVES 2 34-42 - CYLINDER HEAD AND VALVES 2 34-43 - CRANKSHAFT 34-43 - CRANKSHAFT 34-44 - TIMING SYSTEM 34-44 - TIMING SYSTEM 34-45 - OIL PUMP 1 34-45 - OIL PUMP 1 34-46 - OIL PUMP 2 34-46 - OIL PUMP 2 34-47 - OIL FILTERS 34-47 - OIL FILTERS 34-48 - CLUTCH 34-48 - CLUTCH 34-49 - TRANSMISSION CAGE 34-49 - TRANSMISSION CAGE 34-50 - GEAR BOX SELECTOR 34-50 - GEAR BOX SELECTOR 34-51 - PRIMARY GEAR SHAFT 34-51 - PRIMARY GEAR SHAFT 34-52 - DRIVEN SHAFT 34-52 - DRIVEN SHAFT 34-53 - CLUTCH SHAFT 34-53 - CLUTCH SHAFT 34-54 - CURRENT GENERATOR 34-54 - CURRENT GENERATOR 34-55 - STARTER MOTOR 34-55 - STARTER MOTOR 34-56 - THROTTLE BODY 34-56 - THROTTLE BODY

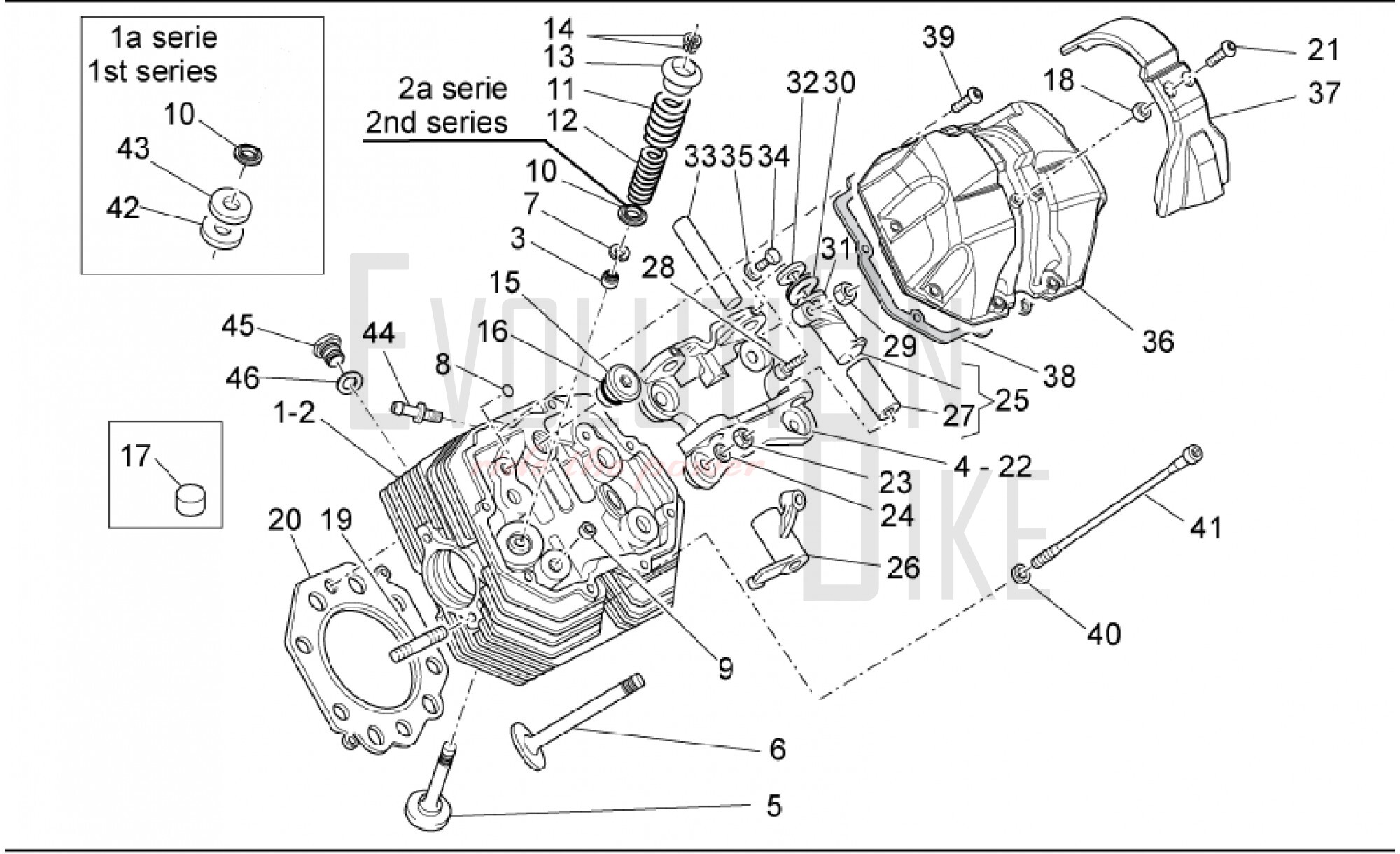

34-42 - CYLINDER HEAD AND VALVES 2
Ref. SKU Description Notes Availability
Price (tax excl.)
1 9760794 TESTA DX VERN TWIN SPARK (ERA 976079 Available on backorder
€1.208,58
1
2 9760801 TESTA SX VERN TWIN SPARK (ERA 976080 Out of Stock
€1.662,97
3 976107 SEAL, VALVE STEM ENGINE KP15051> Out of Stock
€9,72
4 976152 BRACKET, ROCKER ARM RH ENGINE KP15051> Available on backorder
€254,33
1
5 GU05036131 VALVE, EXHAUST Available on backorder
€78,53
1
6 GU05036030 VALVE, INTAKE Available on backorder
€69,01
1
7 GU90353016 RING, SNAP 15.5X1.5 In Stock
€0,75
1
8 224202 O-RING 8.73X1.78-VITON ENGINE KP15051> In Stock
€2,77
1
9 825597 PIN, DOWEL 11.8X10 ENGINE KP15051> Available on backorder
€1,80
1
10 GU01037030 SEAT, VALVE SPRING 14.2X32X5 1ST SERIES Available on backorder
€22,38
1
10 976181 SEAT, VALVE SPRING 14.2X32X7 2ND SERIES Available on backorder
€17,59
1
11 GU37037405 SPRING, VALVE OUTER Available on backorder
€14,90
1
12 GU37037605 SPRING, VALVE INNER Available on backorder
€16,91
1
13 GU01038060 RETAINER, VALVE SPRING Available on backorder
€32,65
1
14 GU01038160 COTTER, VALVE Available on backorder
€5,73
1
15 GU12022600 PLUG, OIL DRAIN Available on backorder
€26,51
1
16 GU90706203 O-RING 20.24X2.62 In Stock
€1,01
1
17 GU05025331 PAD, VIBRATION DAMPER 13X6.2 Available on backorder
€12,40
1
18 GU32116810 BUSH 6.8X8.8X9.8 Available on backorder
€3,70
1
19 GU96508040 STUD BOLT M8X42 Available on backorder
€11,48
1
20 976087 GASKET, CYLINDER HEAD ENGINE KP15051> Out of Stock
€23,74
21 AP8152298 SCREW TBEI M5X16 In Stock
€2,57
1
22 976153 BRACKET, ROCKER ARM LH ENGINE KP15051> Available on backorder
€254,33
1
23 GU92603010 NUT M10X1.5 Out of Stock
€1,34
24 GU14018400 WASHER, SPRING 10.5X21X1 Available on backorder
€0,91
1
25 GU14030201 ROCKER ARM, RH Available on backorder
€234,22
1
26 GU14030401 LEFT ROCKER ARM Available on backorder
€234,22
1
27 GU91111511 BUSH 15X18X43 Available on backorder
€49,61
1
28 GU17034050 SCREW SET, ADJUST Available on backorder
€10,71
1
29 GU10034100 NUT Available on backorder
€9,57
1
30 GU94322215 SPRING, ROCKER ARM Available on backorder
€9,99
1
31 GU90118152 THRUST WASHER 15.2X26X1 Available on backorder
€9,86
1
32 GU10032700 THRUST WASHER 15.2X26X0.5 Out of Stock
€1,08
33 GU12031800 ROCKER ARM SHAFT Out of Stock
€96,64
34 GU98084316 SCREW TE M6X16 Available on backorder
€0,91
1
35 GU95120065 WASHER, SPRING 6.5X11X2 Available on backorder
€0,75
1
36 GU05023530 COVER, CYLINDER HEAD Available on backorder
€195,04
1
37 GU05023430 INSERT Available on backorder
€28,24
1
38 976139 GASKET CYLINDER HEAD COVER In Stock
€8,80
1
39 GU05025930 SCREW M6X25 Out of Stock
€10,73
40 GU95129180 WASHER, SPRING 10.5X18X0.8 Available on backorder
€0,75
1
41 976144 SCREW TCEI M10X118 Available on backorder
€26,53
1
42 GU13037200 THRUST WASHER 14.2X31X1 1ST SERIES Available on backorder
€2,80
1
43 GU14037300 THRUST WASHER 14.2X31X0.3 1ST SERIES Available on backorder
€1,87
1
44 GU32023910 BOLT UNION Available on backorder
€19,32
1
45 976068 PLUG, THREADED Available on backorder
€10,78
1
46 486075 ROSETTA (16X10.5X2.5 Available on backorder
€0,93
1
