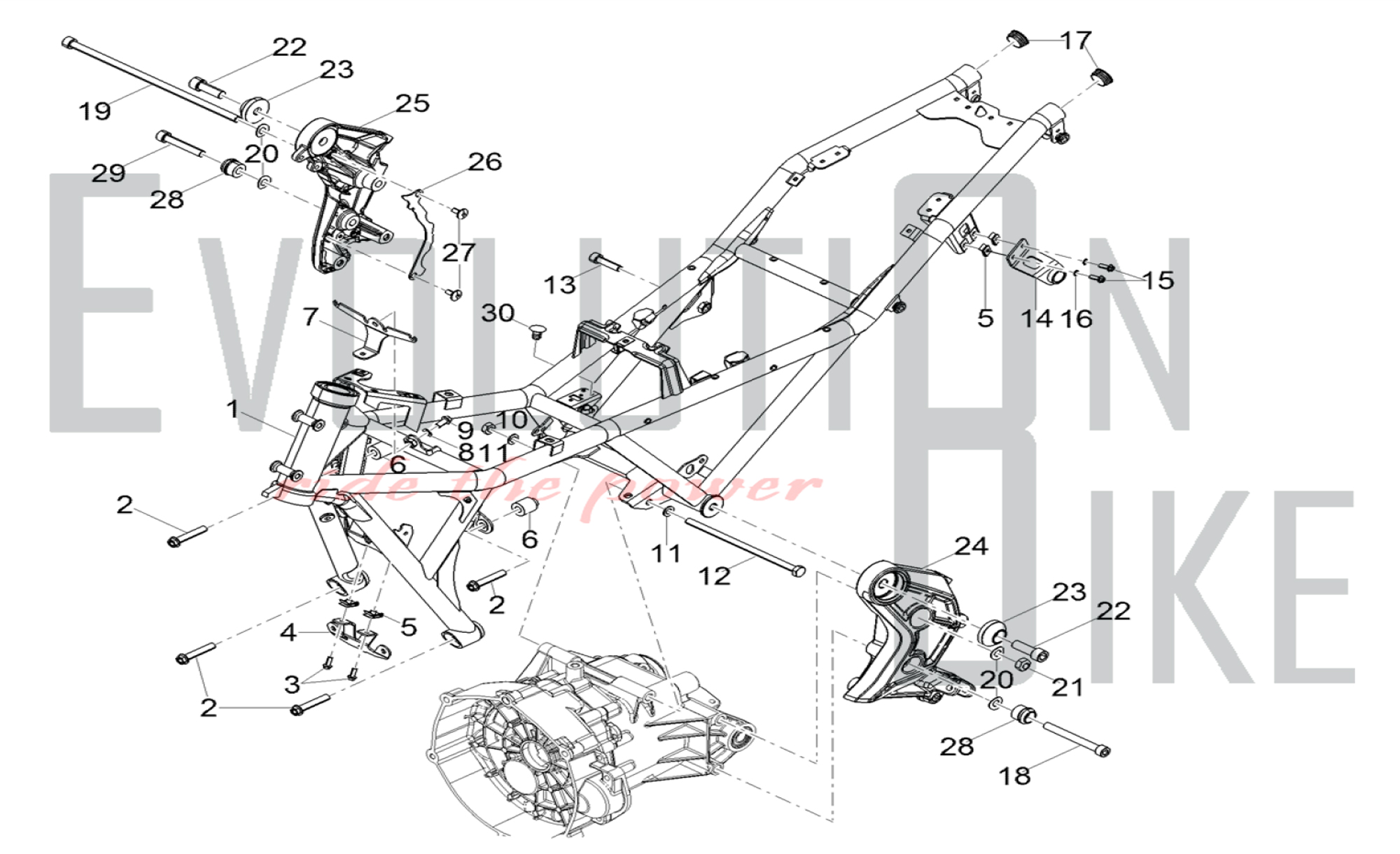

01-010 - FRAME
Ref. SKU Description Notes Availability
Price (tax excl.)
1 2B005033000YR8 FRAME FOR SAHARA YELLOW SP Available on backorder
€1.332,53
1
1 2B005033000YE9 FRAME FOR VOLCANO RED Available on backorder
€1.287,47
1
1 2B005033000YR8 FRAME FOR KALAHARI RED SPE Available on backorder
€1.332,53
1
1 2B005033000YE9 FRAME FOR ATLAS BLUE, ATAC Available on backorder
€1.287,47
1
2 2B006398 SCREW, FLANGED M10X1,25X55 Available on backorder
€3,43
1
3 AP8152278 SCREW, FLANGED M6X16 In Stock
€1,41
1
4 2B005144 BRACKET, RECTIFIER & REGULATOR Available on backorder
€21,18
1
5 254485 NUT 6MM Available on backorder
€1,27
1
6 2B004675 BUSH Available on backorder
€6,25
1
7 2B005419 PLATE, HOLDER Available on backorder
€10,65
1
8 658837 WASHER Out of Stock
€1,14
9 AP8152285 BOLT, FLANGE TE M 8X16 Available on backorder
€1,41
1
10 GU92630510 NUT M10X1.5 Available on backorder
€1,17
1
11 GU95008210 WASHER 10.5X18X2 In Stock
€0,65
1
12 AP8150412 SCREW TEPF M10X205 Available on backorder
€9,64
1
13 AP8150048 SCREW TCEI M10X40 Available on backorder
€1,93
1
14 2B005039 BRACKET, MUFFLER SUPPORT Available on backorder
€48,96
1
15 AP8152278 SCREW, FLANGED M6X16 In Stock
€1,41
1
16 AP8152105 RONDELLA DI SICUREZZA ZIGR. Ø6.4XØ10X0. In Stock
€0,91
1
17 978301 CAP, AXLE NUT Available on backorder
€5,64
1
18 AP8150287 SCREW TCEI M10X90 Available on backorder
€3,73
1
19 2B001230 SCREW Available on backorder
€20,25
1
20 AP8150210 WASHER, SPRING WAVE Available on backorder
€0,91
1
21 GU92630510 NUT M10X1.5 Available on backorder
€1,17
1
22 GU98682635 SCREW TCEI M12X35 Available on backorder
€1,66
1
23 2B005686 BUSH Available on backorder
€8,70
1
24 2B005623 PLATE LH Available on backorder
€164,49
1
25 2B005513 PLATE RH Available on backorder
€164,61
1
26 2B005804 COVER Available on backorder
€4,87
1
27 AP8150500 SCREW TBEI M5X9 In Stock
€1,67
1
28 2B005849 BUSH Available on backorder
€4,85
1
29 AP8150049 BOLT, SOCKET HEAD M10X60 Available on backorder
€9,64
1
30 AP8102600 PLUG Available on backorder
€0,52
1
