B02 - Rear Suspension Assembly

A01 - Frame Assembly A01 - Frame Assembly A02 - Rear Frame Assembly A02 - Rear Frame Assembly B01 - Swing Arm Assembly B01 - Swing Arm Assembly B02 - Rear Suspension Assembly B02 - Rear Suspension Assembly B03 - Front Suspension Assembly B03 - Front Suspension Assembly B04 - Right Hand Fork (Tv 800 - Edition 1) B04 - Right Hand Fork (Tv 800 - Edition 1) B05 - Left Hand Fork (Tv 800 - Edition 1) B05 - Left Hand Fork (Tv 800 - Edition 1) B06 - Right Hand Fork (TV Lusso - RC - SCS) B06 - Right Hand Fork (TV Lusso - RC - SCS) B07 - Left Hand Fork (TV Lusso - RC - SCS) B07 - Left Hand Fork (TV Lusso - RC - SCS) C01 - Rear Wheel Assembly C01 - Rear Wheel Assembly C02 - Front Wheel Assembly C02 - Front Wheel Assembly D01 - Left Hand Footrest Assembly D01 - Left Hand Footrest Assembly D02 - Right Hand Footrest Assembly D02 - Right Hand Footrest Assembly D03 - Right Hand Handlebar Assembly D03 - Right Hand Handlebar Assembly D04 - Left Hand Handlebar Assembly D04 - Left Hand Handlebar Assembly D05 - Locks D05 - Locks E01 - Fairing Assembly E01 - Fairing Assembly E02 - Fairing Assembly E02 - Fairing Assembly E03 - Airbox Assembly E03 - Airbox Assembly E04 - Fuel Tank Assembly E04 - Fuel Tank Assembly E05 - Rear Fairing Assembly E05 - Rear Fairing Assembly E06 - Front Fender E06 - Front Fender E07 - Windscreen E07 - Windscreen E08 - Side Bags (TV Edition 1 - Lusso - RC - SCS) E08 - Side Bags (TV Edition 1 - Lusso - RC - SCS) K01 - Abs Braking System K01 - Abs Braking System K02 - Carbon Canister Assembly K02 - Carbon Canister Assembly K03 - Version For Foreign Countries K03 - Version For Foreign Countries

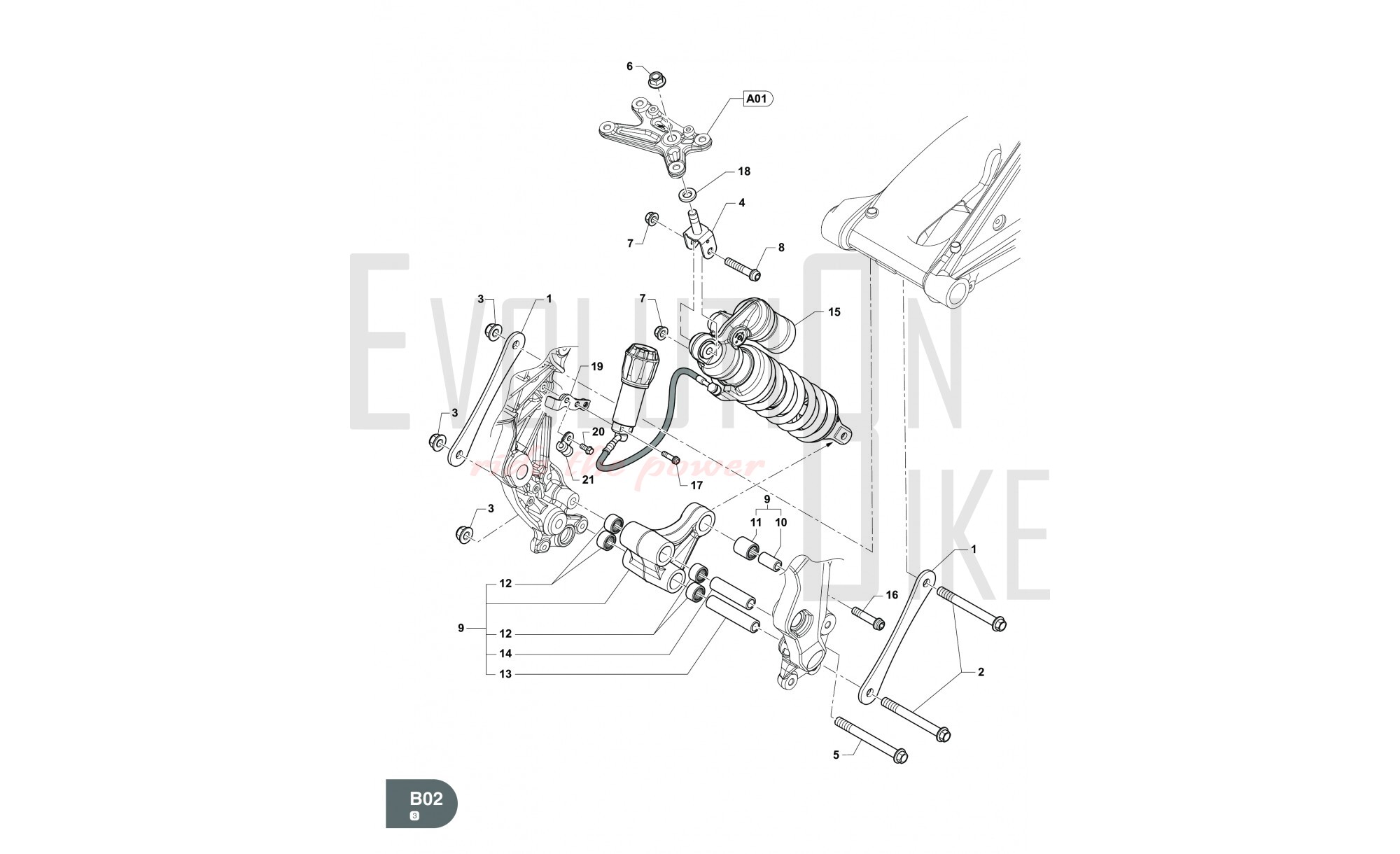

B02 - Rear Suspension Assembly
Ref. SKU Description Notes Availability
Price (tax excl.)
1 8000C0187 ARM RELAY, REAR CUSHION LEVER Available on backorder
€6,51
1
2 8000B5645 SCREW M12 Available on backorder
€2,00
1
3 8000B2715 NUT M12X1.25 H12.5 CH17 Available on backorder
€0,77
1
4 8A00B5790 FORK Available on backorder
€22,90
1
5 8D00B5645 SCREW M12X1.25 Available on backorder
€14,19
1
6 8000B2715 NUT M12X1.25 H12.5 CH17 Available on backorder
€0,77
1
7 8000B6064 NUT Available on backorder
€2,56
1
8 8G00B2691 VITE TCEIF M10X1,25 L 45 Available on backorder
€3,66
1
9 8000C0188 SWINGARM, CUSHION RELAY Available on backorder
€220,09
1
10 8000B5823 PIN Available on backorder
€14,68
1
11 8000B5876 BEARING, NEEDLE Available on backorder
€22,59
1
12 8000B5875 BEARING, NEEDLE In Stock
€11,45
1
13 8A00B5824 PIN Available on backorder
€23,48
1
14 8B00B5824 PIN 18X12X111 Available on backorder
€19,62
1
15 8000C0190 REAR SHOCK ABSORBER 800, ED.1 Available on backorder
€656,49
1
15 8000C0407 REAR SHOCK ABSORBER LUSSO, RC, SCS Available on backorder
€1.031,64
1
16 8H00B2691 SCREW TCEIF M10X1.25X50 Available on backorder
€1,43
1
17 8F00B2688 VITE TCEIF M6X1 L25 Available on backorder
€1,37
1
18 8000B5791 SPACER Available on backorder
€3,42
1
19 8000C3196 BRACKET Available on backorder
€15,07
1
20 8G00B2681 SCREW TEF M6X1X25 LUSSO, RC, SCS In Stock
€0,78
1
20 8E00B2681 VITE TEF M6X1 CH8 L20 800, ED.1 In Stock
€1,04
1
21 8A0068690 CLAMP, BRAKE HOSE LUSSO, RC, SCS Available on backorder
€2,65
1
