E03 - CYLINDER BLOCK ASSY

E01 - CYLINDER HEAD COVER E01 - CYLINDER HEAD COVER E02 - CYLINDER HEAD ASSY E02 - CYLINDER HEAD ASSY E03 - CYLINDER BLOCK ASSY E03 - CYLINDER BLOCK ASSY E04 - VALVE SYSTEM E04 - VALVE SYSTEM E05 - RIGHT CRANKCASE COVER E05 - RIGHT CRANKCASE COVER E06 - LEFT CRANKCASE COVER E06 - LEFT CRANKCASE COVER E07 - CLUTCH ASSY E07 - CLUTCH ASSY E08 - OIL PUMP E08 - OIL PUMP E09 - UPPER CRANKCASE E09 - UPPER CRANKCASE E10 - LOWER CRANKCASE E10 - LOWER CRANKCASE E11 - CRANKSHAFT & PISTON E11 - CRANKSHAFT & PISTON E12 - MAIN SHAFT COUNTER SHAFT E12 - MAIN SHAFT COUNTER SHAFT E13 - GEARSHIFT SYSTEM E13 - GEARSHIFT SYSTEM E14 - MAGNETO ASSY E14 - MAGNETO ASSY E15 - ELECTRIC STARTING SYSTEM E15 - ELECTRIC STARTING SYSTEM E16 - OIL PAN E16 - OIL PAN E17 - REAR COVER BRACKET E17 - REAR COVER BRACKET F01 - EFI SYSTEM F01 - EFI SYSTEM

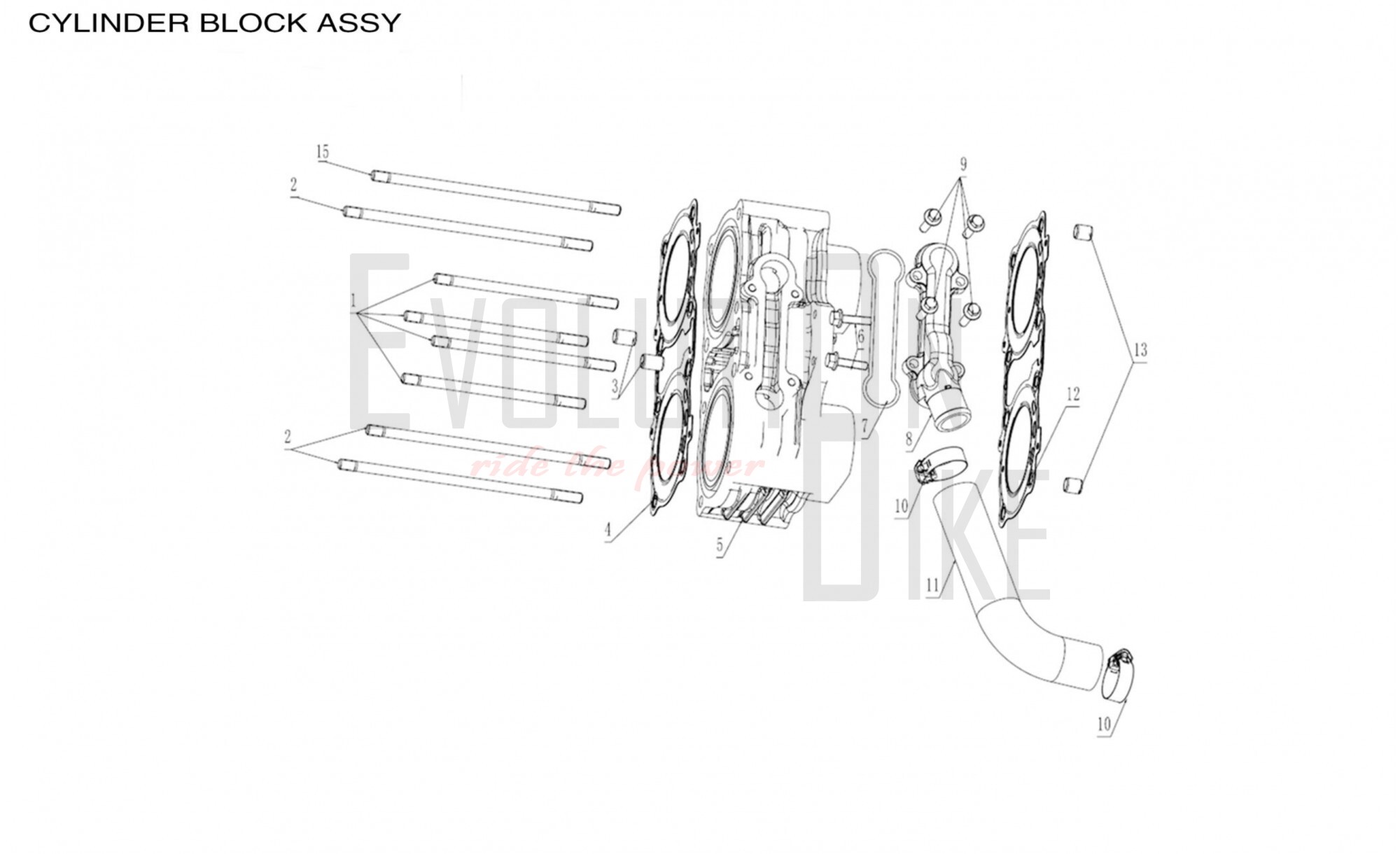

E03 - CYLINDER BLOCK ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 100053278 DOUBLE END BOLT A (170MM) Out of Stock
€0,00
2 100053277 DOUBLE END BOLT B (212MM) Out of Stock
€0,00
3 100102732 DOWEL PIN -D11×16 Out of Stock
€0,00
4 100149299 GASKET ASSY, CYLINDER HEAD Out of Stock
€0,00
5 100149305-0002 CYLINDER BLOCK ASSY Out of Stock
€0,00
6 100011269-0003 BOLT-M6×28 Out of Stock
€0,00
7 100053181 SEAL RING, CYLINDER BLOCK WATER COVER Out of Stock
€0,00
8 100053182-0001 CYLINDER BLOCK WATER COVER Out of Stock
€0,00
9 100011533-0005 BOLT-M6×22 Out of Stock
€0,00
10 100095558 CLAMP-D35 Out of Stock
€0,00
11 100053190 WATER INTAKE PIPE Out of Stock
€0,00
12 100053287 GASKET, CYLINDER BLOCK Out of Stock
€0,00
13 100102731 DOWEL PIN -D11×12 Out of Stock
€0,00
15 100157951 DOUBLE END BOLT B (210.5MM) Out of Stock
€0,00
