008 - RIGHT HALF CRANKCASE

002 - CYLINDER PISTON 002 - CYLINDER PISTON 003 - CYLINDER HEAD (RS 300R-RS 500R) 003 - CYLINDER HEAD (RS 300R-RS 500R) 03B - CYLINDER HEAD (SM 500R E4) 03B - CYLINDER HEAD (SM 500R E4) 004 - CRANKSAHFT 004 - CRANKSAHFT 005 - PRIMARY DRIVE CLUTCH 005 - PRIMARY DRIVE CLUTCH 006 - VALVE TIMING 006 - VALVE TIMING 007 - LEFT HALF CRANKCASE 007 - LEFT HALF CRANKCASE 008 - RIGHT HALF CRANKCASE 008 - RIGHT HALF CRANKCASE 009 - RIGHT HALF CRANKCASE COVERS 009 - RIGHT HALF CRANKCASE COVERS 010 - LEFT HALF CRANKCASE COVERS 010 - LEFT HALF CRANKCASE COVERS 011 - OIL PUMP 011 - OIL PUMP 012 - THROTTLE BODY (RS 300R-RS 500R) 012 - THROTTLE BODY (RS 300R-RS 500R) 12B - THROTTLE BODY (SM 500R E4) 12B - THROTTLE BODY (SM 500R E4) 015 - GEARSHIFT MECHANISM 015 - GEARSHIFT MECHANISM 016 - COOLING SYSTEM (RS 300R-RS 500R) 016 - COOLING SYSTEM (RS 300R-RS 500R) 16B - COOLING SYSTEM (SM 500R E4) 16B - COOLING SYSTEM (SM 500R E4) 017 - AIR FILTER (RS 300R-RS 500R) 017 - AIR FILTER (RS 300R-RS 500R) 17B - AIR FILTER (SM 500R E4) 17B - AIR FILTER (SM 500R E4)

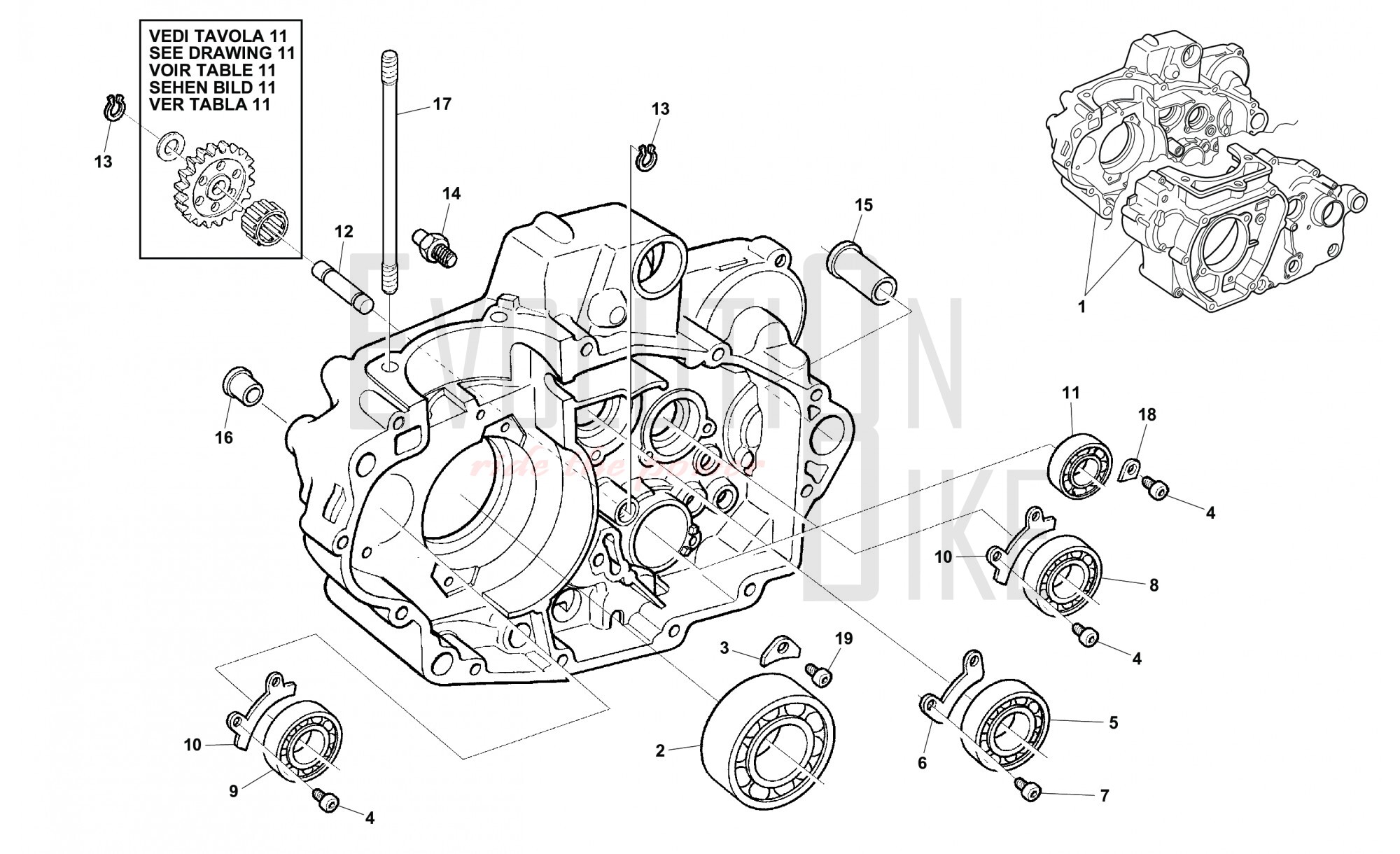

008 - RIGHT HALF CRANKCASE
Ref. SKU Description Notes Availability
Price (tax excl.)
1 8A00A5665 CRANKCASE SET Available on backorder
€370,00
1
2 800099846 BEARING, BALL 30X72X19 MM Available on backorder
€40,00
1
3 800097941 RETAINER, BEARING Available on backorder
€1,90
1
4 YA0055241 SCREW TCEI M6X1X14 CH5 Available on backorder
€0,70
1
5 8A0043567 BEARING 25X52X15MM Available on backorder
€7,50
1
6 8A0042100 PLATE Available on backorder
€4,30
1
7 YB0055241 SCREW TCEI M6X1.00X10 CH5 Available on backorder
€1,00
1
8 800017040 BEARING, BALL 20X42X12 Available on backorder
€5,45
1
9 8A0019768 BEARING, BALL Available on backorder
€7,50
1
10 800091602 RETAINER, BEARING Available on backorder
€1,60
1
11 800085395 BEARING, BALL 25X42X9 Available on backorder
€15,00
1
12 8000A5662 AXLE, GEAR Available on backorder
€3,00
1
13 66N021312 CIRCLIP E-TYPE 18.5X9X1.1 MM Available on backorder
€0,10
1
14 M000P00686 PIN Available on backorder
€5,00
1
15 800073500 BUSHING, SWING ARM Available on backorder
€4,60
1
16 161077703 BUSH WITH COLLAR Available on backorder
€3,33
1
17 8D0081650 BOLT, STUD M10X193 RS 500R Available on backorder
€4,50
1
17 8C0081650 STUD BOLT L165 RS 300R Available on backorder
€4,00
1
18 800051746 RETAINER, BEARING Available on backorder
€9,50
1
19 Y00028327 SCREW TSEI M6X1X14 CH4 Available on backorder
€1,00
1
