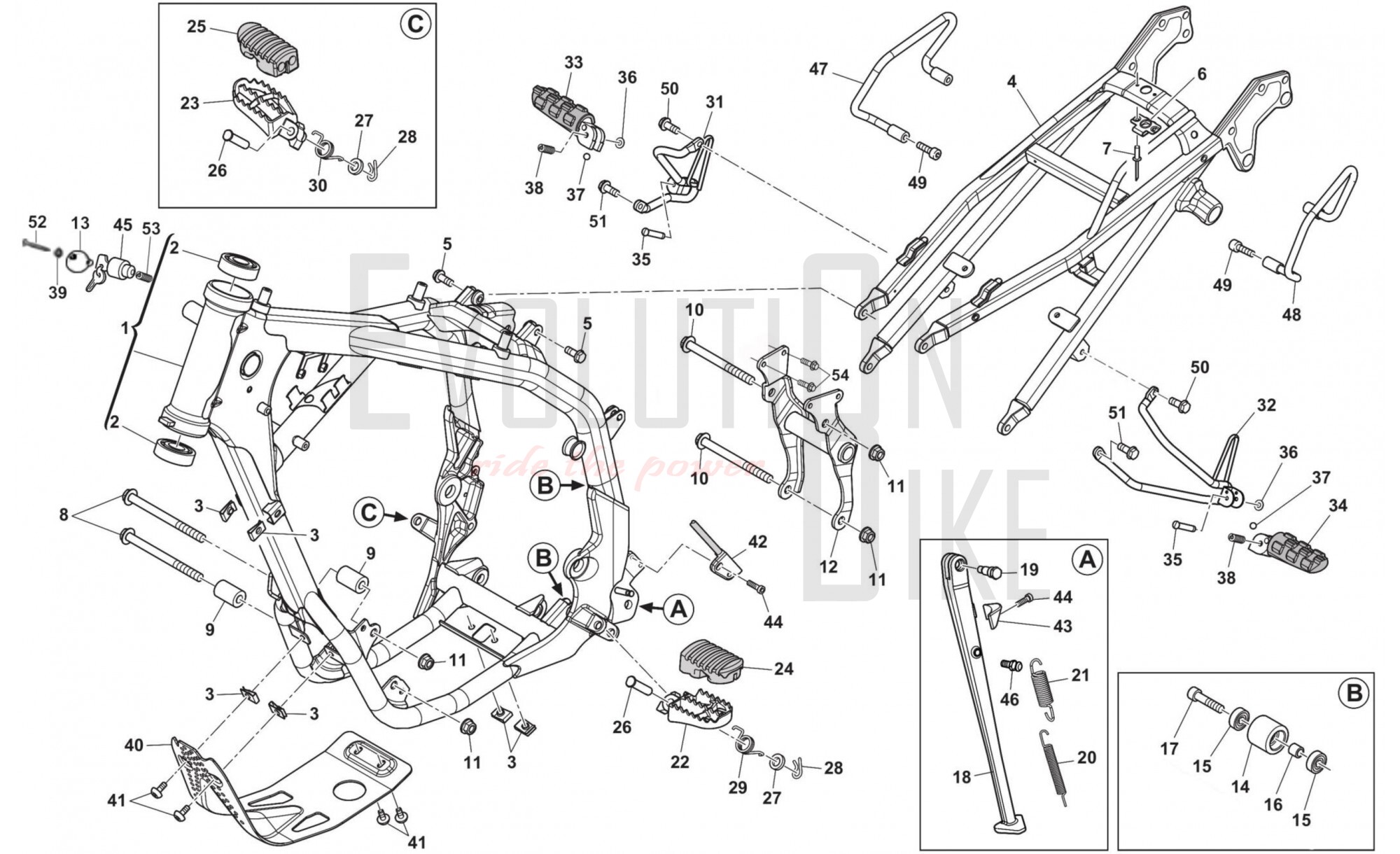

F04 - FRAME

F02 - COOLING SYSTEM F02 - COOLING SYSTEM F03 - INTAKE F03 - INTAKE F04 - FRAME F04 - FRAME F05 - FRONT FORK F05 - FRONT FORK F06 - REAR SHOCK ABSORBER F06 - REAR SHOCK ABSORBER F07 - REAR CUSHION LEVER F07 - REAR CUSHION LEVER F08 - SWINGARM F08 - SWINGARM F09 - HANDLEBAR CONTROLS F09 - HANDLEBAR CONTROLS F10 - BODY F10 - BODY F11 - FUEL TANK F11 - FUEL TANK F12 - EXHAUST SYSTEM F12 - EXHAUST SYSTEM F13 - MASTER CYLINDER FRONT F13 - MASTER CYLINDER FRONT F14 - MASTER CYLINDER REAR F14 - MASTER CYLINDER REAR F15 - FRONT WHEEL ABS F15 - FRONT WHEEL ABS F16 - REAR WHEEL ABS F16 - REAR WHEEL ABS F19A - EMBLEM RED VERSION F19A - EMBLEM RED VERSION F19B - EMBLEM YELLOW VERSION F19B - EMBLEM YELLOW VERSION
F04 - FRAME
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F000A04467 FRAME FRAME YELLOW Available on backorder
€1.084,16
1
1 F0A0A04467 FRONT PART, FRAME FRAME RED Available on backorder
€1.057,33
1
2 800087243 NEEDLE BEARING Available on backorder
€20,00
1
3 U00046893 NUT CLAMP M6X1 Available on backorder
€1,00
1
4 F000A02082 REAR FRAME Available on backorder
€432,59
1
5 10000352 BOLT-M8XL25 Available on backorder
€0,37
1
6 800069150 BRACKET, SEAT Available on backorder
€2,90
1
7 800033373 SHEAR RIVET 3.3X14 Available on backorder
€0,10
1
8 10000535 BOLT M10XL125 Out of Stock
€0,00
9 F000P01286 BUSH Available on backorder
€2,00
1
10 72012348 BOLT M10XL110 Available on backorder
€1,55
1
11 10000335 SELF-LOCKING NUT M10XSP10 Available on backorder
€2,05
1
12 10000517 REAR SUSPENSION SUPPORT Out of Stock
€0,00
12 10000515 REAR SUSPENSION SUPPORT Available on backorder
€62,19
1
13 10000566 DIRECTION LOCK COVER Available on backorder
€7,47
1
14 8AA059433 CHAIN GUIDE WHEEL Available on backorder
€3,50
1
15 10000354 BALL BEARING Available on backorder
€2,82
1
16 10000382 SPACER RING Available on backorder
€0,50
1
17 10000318 BOLT M8XL40 Available on backorder
€0,59
1
18 F000P02394 SIDE STAND Available on backorder
€64,88
1
19 F000P01802 SCREW, SIDE STAND In Stock
€11,00
1
20 F000P03052 MOLLA INT.RICHIAMO GAMBA LAT. In Stock
€3,48
1
21 F000P03051 MOLLA EST.RICHIAMO GAMBA LAT. In Stock
€5,00
1
22 F000P01246 L.H. FOOTREST In Stock
€27,29
1
23 F000P01247 R.H. FOOTREST In Stock
€27,29
1
24 F000P00138 RUBBER In Stock
€4,60
1
25 F000P00139 RUBBER Available on backorder
€4,60
1
26 72060170 PIN Available on backorder
€0,71
1
27 10000380 WASHER-D16-D10.5-H1 Available on backorder
€0,31
1
28 64ND20068 SPLIT PIN-L18-THK2.0 In Stock
€0,20
1
29 800096907 LEFT FOOTREST SPRING In Stock
€0,90
1
30 800096908 RIGHT FOOTREST SPRING In Stock
€0,90
1
31 F000A02131 RIGHT FOOTREST In Stock
€28,84
1
32 F000A02133 LEFT FOOTREST Available on backorder
€28,84
1
33 8A0085928 VULCANIZED RIGHT FOOTREST Available on backorder
€16,94
1
34 8A0085929 VULCANIZED LEFT FOOTREST In Stock
€16,94
1
35 10000392 PIN Available on backorder
€0,75
1
36 10000322 CLIP RING Available on backorder
€0,19
1
37 6BN021507 SFERA ACCIAIO D1/4" In Stock
€0,10
1
38 800062655 MOLLA DI ARRESTO PEDANA POST. In Stock
€0,62
1
39 62N115763 WASHER Available on backorder
€0,20
1
40 8000B0157 ENGINE GUARD Available on backorder
€55,52
1
41 10000344 BOLT M6XL15 Available on backorder
€0,36
1
42 E000P01648 SENSOR SIDE STAND In Stock
€50,00
1
43 E000P01117 MAGNET In Stock
€9,00
1
44 60ND02461 VITE TCEI M4X0,7-L10 Available on backorder
€0,11
1
45 10000378 KEY LOCKS ASSY Available on backorder
€34,83
1
46 8000H0235 SPRING PIN Available on backorder
€6,67
1
47 80A0H1852 RIGHT PASSENGER ARMREST Available on backorder
€16,02
1
48 80A0H1853 LEFT PASSENGER ARMREST Available on backorder
€16,02
1
49 10000317 BOLT M8X1.25XL20 Available on backorder
€0,38
1
50 10000356 FLANGED EXAGON HEAD SCREW Available on backorder
€0,34
1
51 10000363 BOLT M8X1.25-L30 Available on backorder
€0,54
1
52 800043394 NAIL Available on backorder
€0,20
1
53 800037946 SPRING Available on backorder
€2,00
1
54 10000347 BOLT-M6XL14 Available on backorder
€0,22
1
