E07 - CRANKCASE ASSY

E01 - CYLINDER BODY E01 - CYLINDER BODY E02 - CYLINDER HEAD E02 - CYLINDER HEAD E03 - CRANKSHAFT E03 - CRANKSHAFT E04 - CLUTCH BODY E04 - CLUTCH BODY E05 - CAMSHAFT AXLE & CHAIN/TIMING E05 - CAMSHAFT AXLE & CHAIN/TIMING E06 - COVER/SPROCKET E06 - COVER/SPROCKET E07 - CRANKCASE ASSY E07 - CRANKCASE ASSY E08 - RIGHT CRANKCASE COVER E08 - RIGHT CRANKCASE COVER E09 - LEFT CRANKCASE COVER E09 - LEFT CRANKCASE COVER E10 - HOUSING/OIL PUMP E10 - HOUSING/OIL PUMP E12 - STARTING MOTOR E12 - STARTING MOTOR E13 - COMPLETE MAIN SHAFT E13 - COMPLETE MAIN SHAFT F01 - EFI F01 - EFI

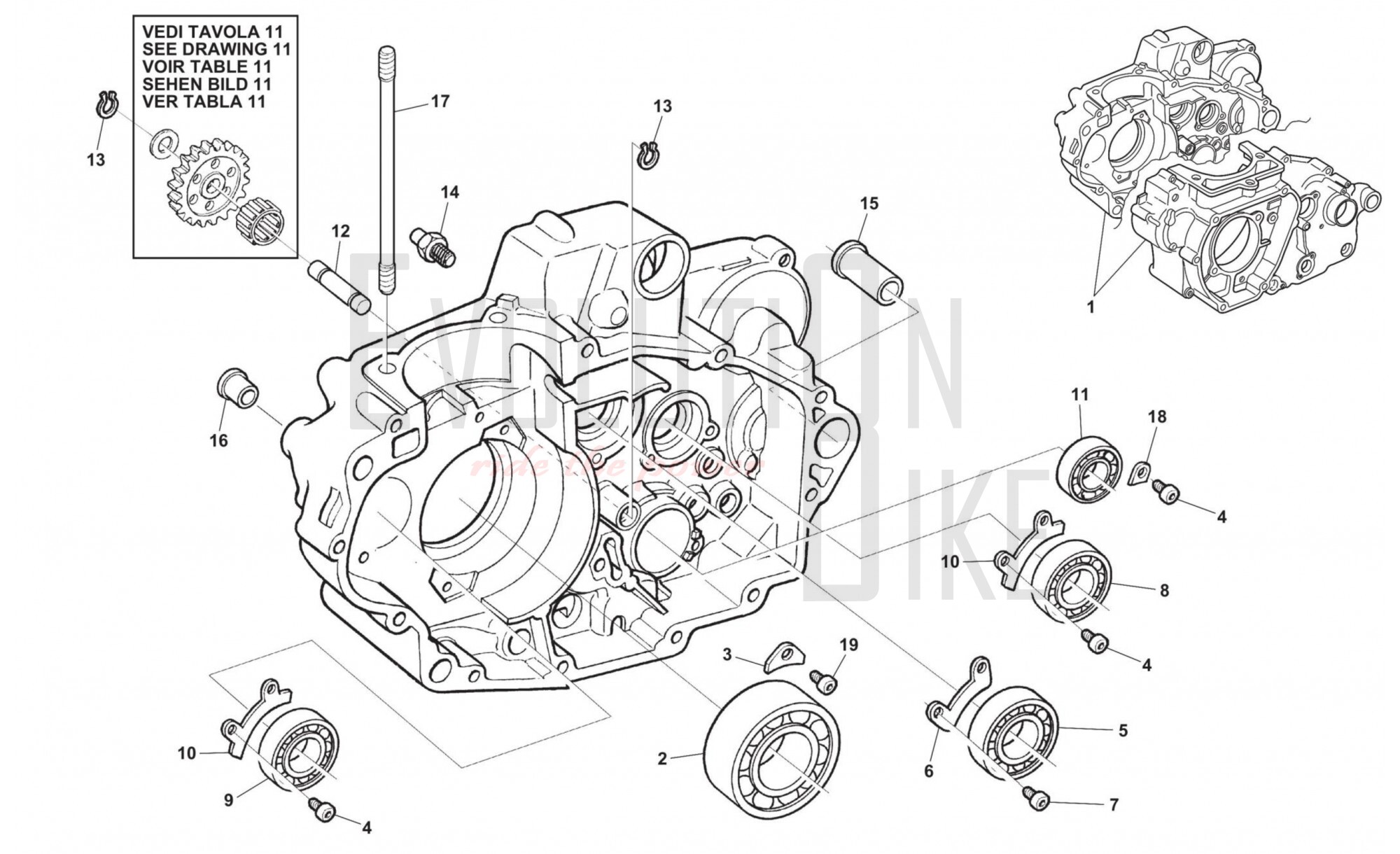

E07 - CRANKCASE ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 8A00A5665 CRANKCASE SET Available on backorder
€370,00
1
2 800099846 BEARING, BALL 30X72X19 MM In Stock
€40,00
1
3 800097941 RETAINER, BEARING Available on backorder
€1,90
1
4 YA0055241 SCREW TCEI M6X1X14 CH5 Available on backorder
€0,70
1
5 8A0043567 BEARING 25X52X15MM In Stock
€22,31
1
6 8A0042100 PLATE Available on backorder
€4,30
1
7 YB0055241 SCREW TCEI M6X1.00X10 CH5 Available on backorder
€1,00
1
8 800017040 BEARING, BALL 20X42X12 In Stock
€17,47
1
9 8A0019768 BEARING, BALL Available on backorder
€7,50
1
10 800091602 RETAINER, BEARING Available on backorder
€1,60
1
11 800085395 BEARING, BALL 25X42X9 Available on backorder
€15,00
1
12 8000A5662 AXLE, GEAR Available on backorder
€3,00
1
13 66N021312 CIRCLIP E-TYPE 18.5X9X1.1 MM In Stock
€0,10
1
14 M000P00686 PIN Available on backorder
€5,00
1
15 800073500 BUSHING, SWING ARM Available on backorder
€4,60
1
16 161077703 BUSH WITH COLLAR Available on backorder
€3,33
1
17 8D0081650 BOLT, STUD M10X193 Available on backorder
€4,50
1
18 800051746 RETAINER, BEARING Available on backorder
€9,50
1
19 Y00028327 SCREW TSEI M6X1X14 CH4 Available on backorder
€1,00
1
