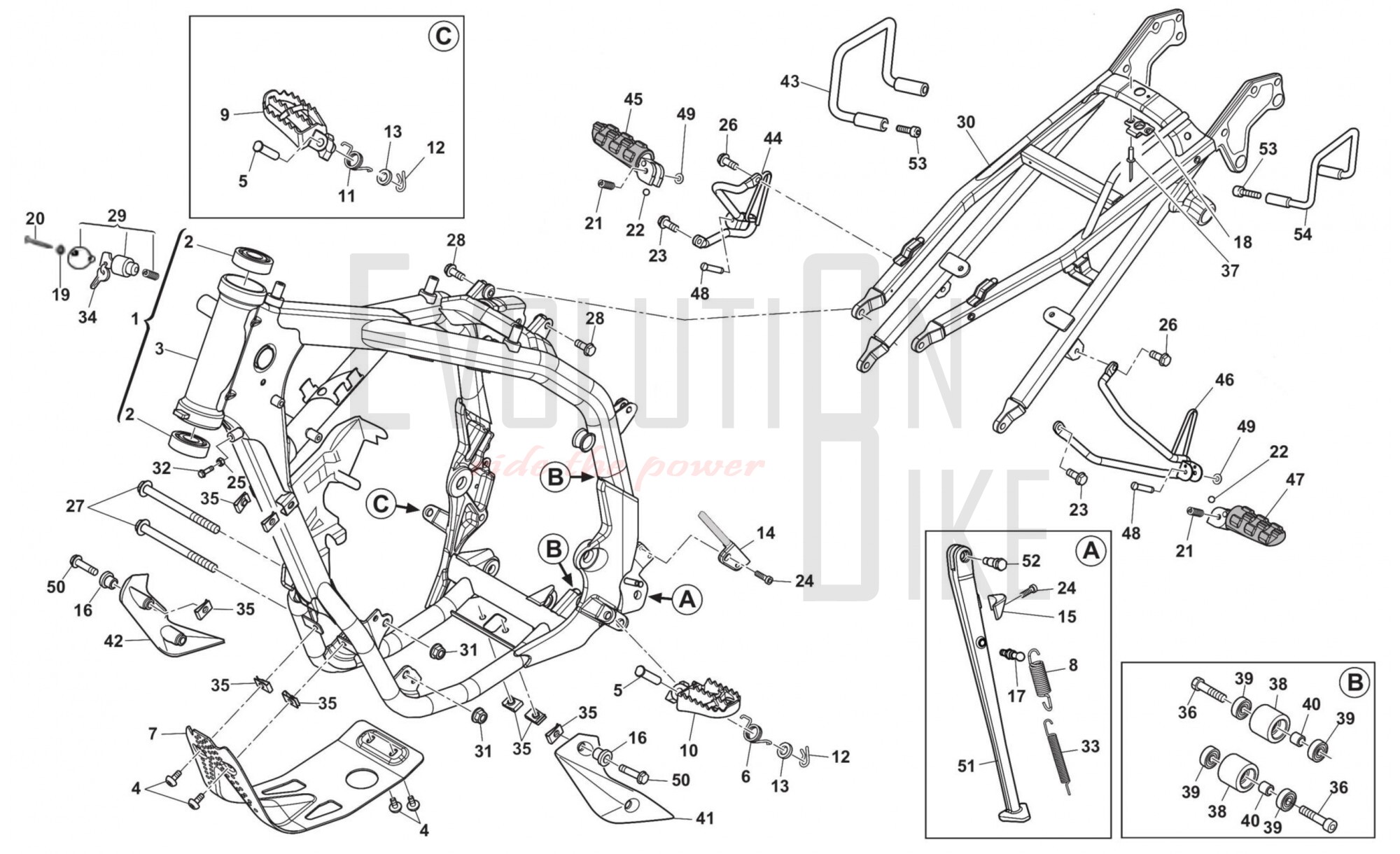

F04 - FRAME-FOOTREST

F03 - INTAKE F03 - INTAKE F04 - FRAME-FOOTREST F04 - FRAME-FOOTREST F05 - FRONT FORK F05 - FRONT FORK F06 - REAR SHOCK ABSORBER F06 - REAR SHOCK ABSORBER F07 - REAR CUSHION LEVER F07 - REAR CUSHION LEVER F08 - SWINGARM F08 - SWINGARM F09 - HANDLEBAR CONTROLS F09 - HANDLEBAR CONTROLS F10 - REAR BRAKING SYSTEM F10 - REAR BRAKING SYSTEM F11 - BRAKING SYSTEM ABS F11 - BRAKING SYSTEM ABS F12 - BODY-SEAT F12 - BODY-SEAT F13 - FUEL TANK-COVER RADIATOR F13 - FUEL TANK-COVER RADIATOR F14 - CANISTER EVAP F14 - CANISTER EVAP F15 - EXHAUST SYSTEM F15 - EXHAUST SYSTEM F16 - FRONT BRAKING SYSTEM F16 - FRONT BRAKING SYSTEM F17 - FRONT WHEEL F17 - FRONT WHEEL F18 - REAR WHEEL F18 - REAR WHEEL F21 - EMBLEM F21 - EMBLEM
F04 - FRAME-FOOTREST
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F0C0A02080 FRAME AND BEARINGS ASSY Available on backorder
€850,00
1
2 800087243 NEEDLE BEARING Available on backorder
€20,00
1
3 F0C0A02081 FRAME ASSY Available on backorder
€950,00
1
4 Y00060898 SCREW TTEI M6X1X15 CH5 In Stock
€1,50
1
5 Y00073140 PIN, FOOTREST Available on backorder
€2,00
1
6 800096907 LEFT FOOTREST SPRING In Stock
€0,90
1
7 8000B0157 ENGINE GUARD Available on backorder
€55,52
1
8 F000P03051 MOLLA EST.RICHIAMO GAMBA LAT. In Stock
€5,00
1
9 80A089953 FOOTREST, FRONT RIGHT Available on backorder
€29,90
1
10 80A089962 FOOTREST, FRONT LEFT In Stock
€29,90
1
11 800096908 RIGHT FOOTREST SPRING In Stock
€0,90
1
12 64ND20068 SPLIT PIN-L18-THK2.0 In Stock
€0,20
1
13 ZA0001815 WASHER 16X10.5X1 In Stock
€0,90
1
14 E000P01648 SENSOR SIDE STAND In Stock
€50,00
1
15 E000P01117 MAGNET In Stock
€9,00
1
16 8000H0822 BUSH In Stock
€0,50
1
17 8000H0235 SPRING PIN Available on backorder
€6,67
1
18 800069150 BRACKET, SEAT Available on backorder
€2,90
1
19 62N115763 WASHER Available on backorder
€0,20
1
20 800043394 NAIL Available on backorder
€0,20
1
21 800062655 MOLLA DI ARRESTO PEDANA POST. In Stock
€0,62
1
22 6BN021507 SFERA ACCIAIO D1/4" In Stock
€0,10
1
23 Z00062732 SCREW TEF M8X30 In Stock
€0,67
1
24 60ND02461 VITE TCEI M4X0,7-L10 Available on backorder
€0,11
1
25 Z00017810 NUT M8X1.25 H8 CH12 Available on backorder
€0,60
1
26 Z00069056 VITE TEF M8X1,25-CH12-L20 In Stock
€0,60
1
27 YG0073458 SCREW M8X150 Available on backorder
€5,70
1
28 Z00069056 VITE TEF M8X1,25-CH12-L20 In Stock
€0,60
1
29 800043391 LOCK, STEERING In Stock
€16,23
1
30 F000A02082 REAR FRAME Available on backorder
€432,59
1
31 Y00043928 NUT M8X1.25 H8 CH12 Available on backorder
€0,85
1
32 YC0092876 SCREW M8X30 Out of Stock
€0,00
33 F000P03052 MOLLA INT.RICHIAMO GAMBA LAT. In Stock
€3,48
1
34 800035531 KEY, BLANK In Stock
€1,80
1
35 U00046893 NUT CLAMP M6X1 Available on backorder
€1,00
1
36 60ND02559 SCREW TCEI M8X1,25X40 Available on backorder
€1,00
1
37 800033373 SHEAR RIVET 3.3X14 Available on backorder
€0,10
1
38 8AA059433 CHAIN GUIDE WHEEL Available on backorder
€3,50
1
39 800063312 CUSCINETTO RAD.A SFERE D22-D8-SP7 Available on backorder
€6,90
1
40 8A0059434 SPACER Available on backorder
€0,50
1
41 8000H0187 GUARD, LH CRANKCASE Available on backorder
€8,50
1
42 8000H0188 GUARD, RH CRANKCASE Available on backorder
€8,00
1
43 80A0H1852 RIGHT PASSENGER ARMREST Available on backorder
€16,02
1
44 F000A02131 RIGHT FOOTREST In Stock
€28,84
1
45 8A0085928 VULCANIZED RIGHT FOOTREST Available on backorder
€16,94
1
46 F000A02133 LEFT FOOTREST Available on backorder
€28,84
1
47 8A0085929 VULCANIZED LEFT FOOTREST In Stock
€16,94
1
48 ZB0053546 PIN, FOOTREST Available on backorder
€1,40
1
49 66ND21308 CIRCLIP 11X5X0,7 In Stock
€0,30
1
50 Z00062728 SCREW TEF M6X1X20 CH8 In Stock
€0,15
1
51 F000P02083 STAND, SIDE Available on backorder
€72,10
1
52 F000P01802 SCREW, SIDE STAND In Stock
€11,00
1
53 60ND02555 SCREW Available on backorder
€0,30
1
54 80A0H1853 LEFT PASSENGER ARMREST Available on backorder
€16,02
1
