E05 - LEFT CRANKCASE COVER

E01 - CYLINDER HEAD COVER E01 - CYLINDER HEAD COVER E02 - ROCKER ARM ASSY E02 - ROCKER ARM ASSY E03 - CYLINDER HEAD ASSY E03 - CYLINDER HEAD ASSY E04 - CYLINDER BLOCK E04 - CYLINDER BLOCK E05 - LEFT CRANKCASE COVER E05 - LEFT CRANKCASE COVER E06 - ELECTRIC STARTING SYSTEM E06 - ELECTRIC STARTING SYSTEM E07 - CLUTCH ASSY E07 - CLUTCH ASSY E08 - LEFT CRANKCASE ASSY E08 - LEFT CRANKCASE ASSY E09 - CRANKSHAFT CONNECTING ROD & PISTON E09 - CRANKSHAFT CONNECTING ROD & PISTON E10 - SHIFT CONTROL SYSTEM E10 - SHIFT CONTROL SYSTEM E11 - MAIN SHAFT & COUNTER SHAFT E11 - MAIN SHAFT & COUNTER SHAFT E12 - OIL PUMP ASSY E12 - OIL PUMP ASSY E13 - RIGHT CRANKCASE ASS. 1 E13 - RIGHT CRANKCASE ASS. 1 E14 - RIGHT CRANKCASE ASS. 2 E14 - RIGHT CRANKCASE ASS. 2 E15 - RIGHT CRANKCASE ASS. 3 E15 - RIGHT CRANKCASE ASS. 3 E16 - RIGHT CRANKCASE COVER E16 - RIGHT CRANKCASE COVER F01 - EFI SYSTEM F01 - EFI SYSTEM

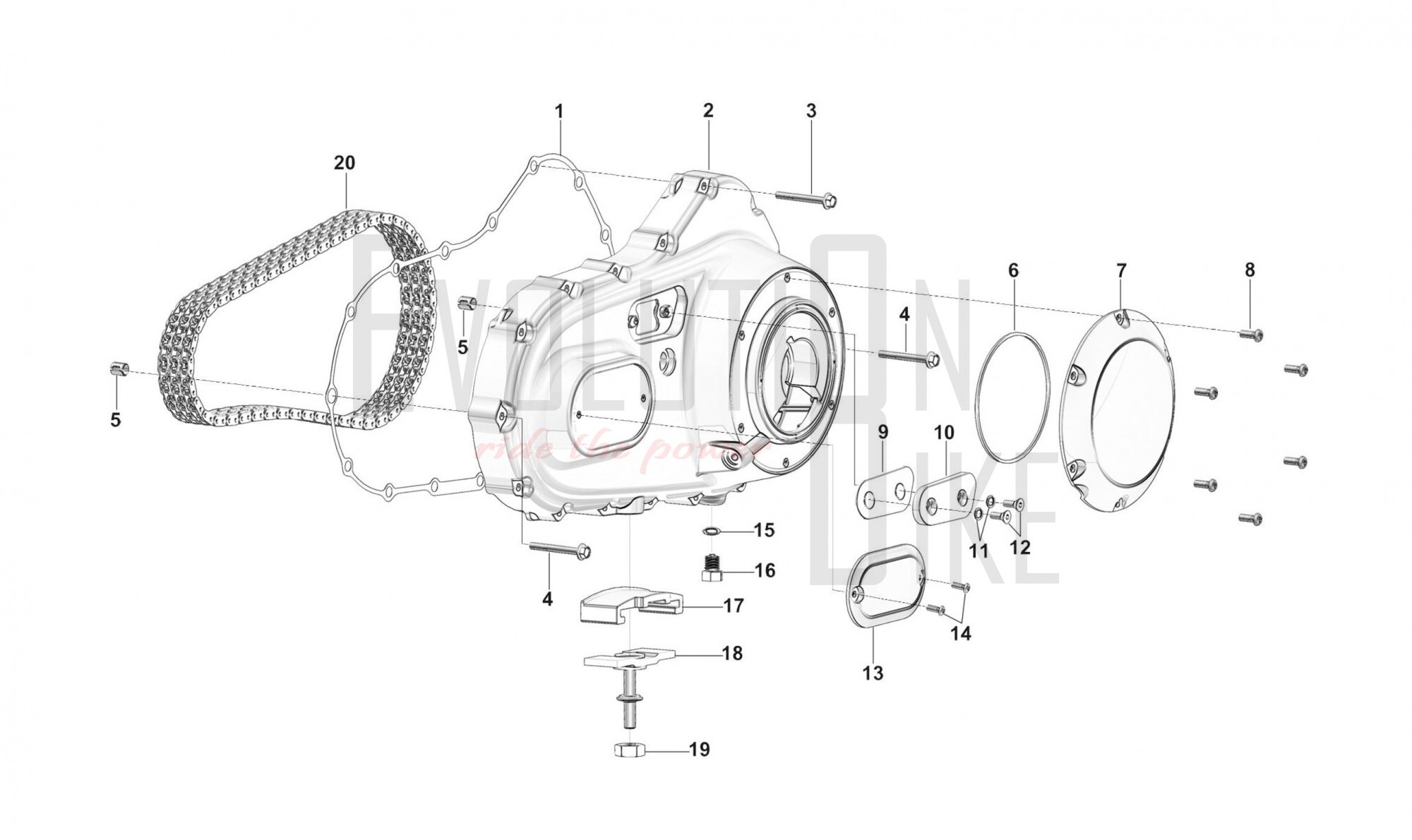

E05 - LEFT CRANKCASE COVER
Ref. SKU Description Notes Availability
Price (tax excl.)
1 72130735 GASKET-LEFT CRANKCASE COVER Available on backorder
€16,00
1
2 14011404 LEFT CRANKCASE COVER (POWDER SPRAYING) Available on backorder
€105,00
1
3 72030868 BOLT-M6X45 Available on backorder
€0,50
1
4 72030867 BOLT-M6X50 Available on backorder
€0,50
1
5 72060012 DOWEL PIN-8X14 Out of Stock
€0,60
6 73012755 RECTANG.RING,CLUTCH COVER-106X2.7X2.7 Available on backorder
€2,00
1
7 14040031 CLUTCH COVER (CHROME-PLATED) Available on backorder
€34,50
1
8 72030866 SCREW-M6X16 Available on backorder
€0,50
1
9 72130736 GASKET, CHAIN OBSERVATION COVER Available on backorder
€2,00
1
10 14040032 CHAIN OBSERVATION COVER POWDER SPRAYING Available on backorder
€4,00
1
11 72150192 O-RING-6.5X1.8 Available on backorder
€0,50
1
12 72030869 SCREW-M6X16 Available on backorder
€0,50
1
13 14040034 BRAND PLATE,LH CRANK.COVER CHROME Available on backorder
€9,50
1
14 72030970 SCREW-M5X12 Available on backorder
€0,50
1
15 72040510 WASHER-12.2X20X2 Out of Stock
€0,00
16 72011021 OIL DRAIN BOLT-M12X1.5X15 Available on backorder
€1,01
1
17 73012936 TENSION PLATE-CHAIN Out of Stock
€0,00
18 73131926 TENSIONER BRACKET Available on backorder
€9,50
1
19 72020625 NUT-M12X1.5 Available on backorder
€2,00
1
20 15160054 PRIMARY DRIVE CHAIN Available on backorder
€60,50
1
