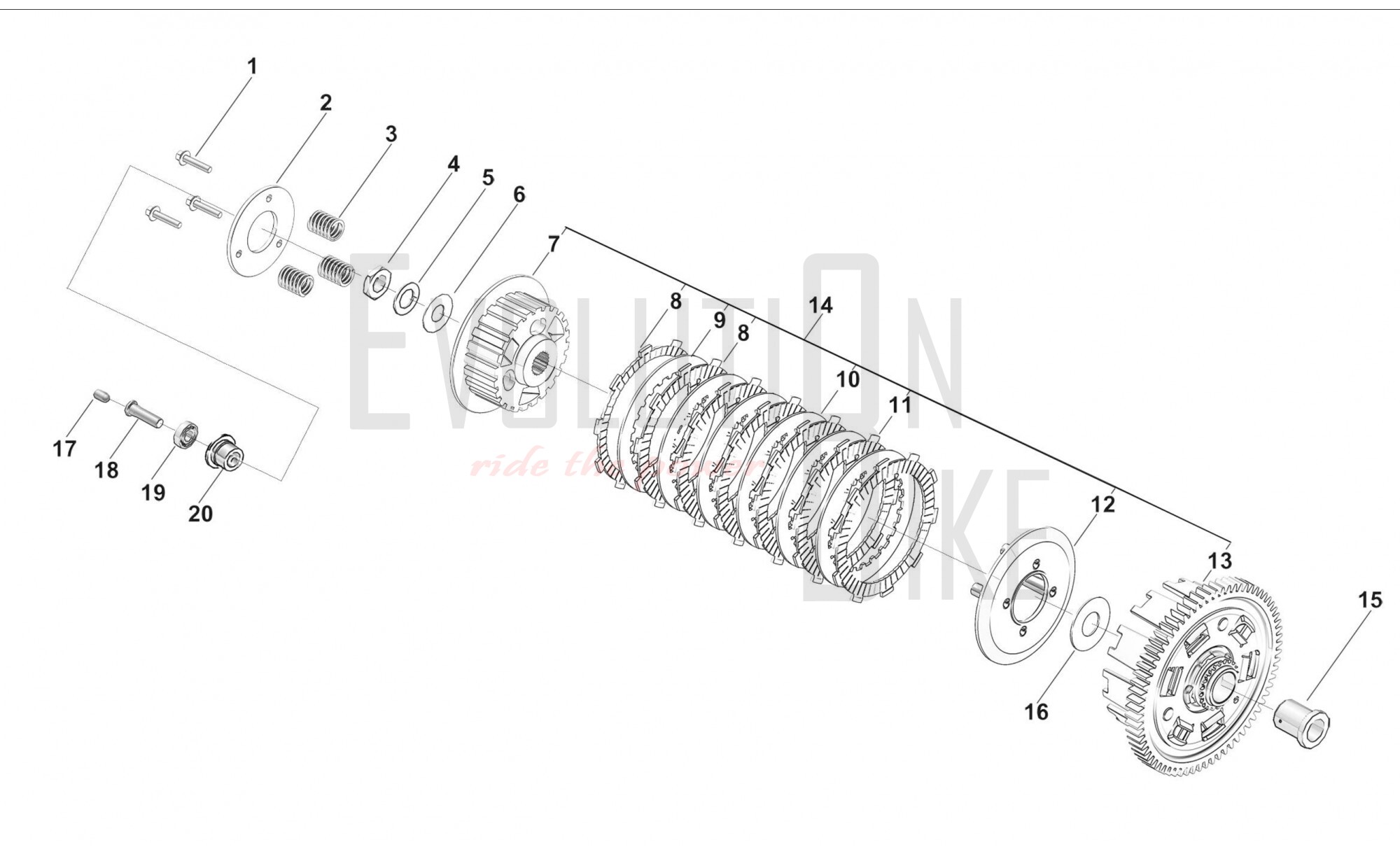

E09 - CLUTCH ASSY

E01 - CYLINDER HEAD COVER E01 - CYLINDER HEAD COVER E02 - CYLINDER HEAD E02 - CYLINDER HEAD E03 - CAMSHAFT E03 - CAMSHAFT E04 - VALVE SYSTEM E04 - VALVE SYSTEM E05 - LEFT CRANKCASE E05 - LEFT CRANKCASE E06 - RIGHT CRANKCASE COVER E06 - RIGHT CRANKCASE COVER E07 - RIGHT CRANKCASE COVER E07 - RIGHT CRANKCASE COVER E08 - PISTON E08 - PISTON E09 - CLUTCH ASSY E09 - CLUTCH ASSY E10 - SHIFT CONTROL SYSTEM E10 - SHIFT CONTROL SYSTEM E11 - MAIN SHAFT E11 - MAIN SHAFT E12 - LOWER CRANKCASE E12 - LOWER CRANKCASE E13 - WATER PUMP E13 - WATER PUMP F21 - THROTTLE BODY F21 - THROTTLE BODY F23 - GEARSHIFT F23 - GEARSHIFT
E09 - CLUTCH ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 24070400 BOLT-M6X30 Available on backorder
€1,00
1
2 24070399 LIFT-SLAB Available on backorder
€4,00
1
3 24070401 CLUTCH SPRING COMPRESSOR Available on backorder
€2,00
1
4 24070327 LOCKING NUT-M18 Available on backorder
€2,50
1
5 24070328 CLUTCH WASHER Available on backorder
€2,00
1
6 24070326 CLUTCH BODY Available on backorder
€1,50
1
7 24070393 CLUTCH PLATE ASSY Available on backorder
€36,00
1
8 24070394 FRICTION PLATE I Available on backorder
€30,50
1
9 24070396 DRIVEN PLATE I Available on backorder
€5,00
1
10 24070397 DRIVEN PLATE II Available on backorder
€4,50
1
11 24070395 FRICTION PLATE II Available on backorder
€33,00
1
12 24070398 PUSH DISC PLATE Available on backorder
€30,00
1
13 24070392 CLUTCH COVER Available on backorder
€194,50
1
14 24120171 CLUTCH WASHER Available on backorder
€330,00
1
15 24070331 CLUTCH SHAFT SLEEVE Available on backorder
€9,50
1
16 24070325 WASHER Available on backorder
€2,00
1
17 24070330 CLUTCH JACK-ROD Available on backorder
€3,00
1
18 24070329 CLUTCH PUSH ROD Available on backorder
€2,00
1
19 24070167 INPUT SHAFT BEARING Available on backorder
€2,50
1
20 24070332 SEPARATE BEARING SEAT Available on backorder
€2,50
1
