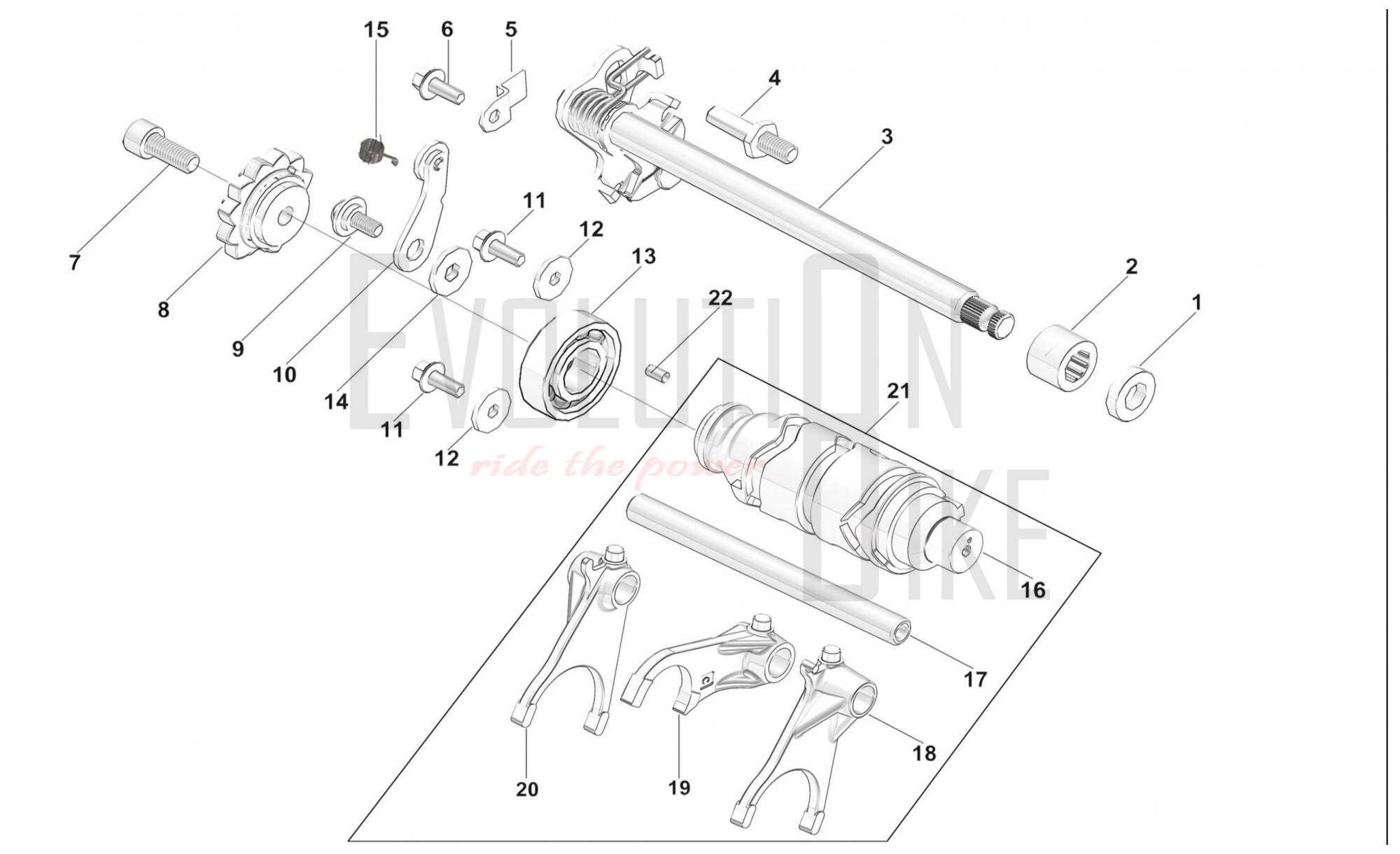

E10 - SHIFT CONTROL SYSTEM

E01 - CYLINDER HEAD COVER E01 - CYLINDER HEAD COVER E02 - CYLINDER HEAD E02 - CYLINDER HEAD E03 - CAMSHAFT E03 - CAMSHAFT E04 - VALVE SYSTEM E04 - VALVE SYSTEM E05 - LEFT CRANKCASE E05 - LEFT CRANKCASE E06 - RIGHT CRANKCASE COVER E06 - RIGHT CRANKCASE COVER E07 - RIGHT CRANKCASE COVER E07 - RIGHT CRANKCASE COVER E08 - PISTON E08 - PISTON E09 - CLUTCH ASSY E09 - CLUTCH ASSY E10 - SHIFT CONTROL SYSTEM E10 - SHIFT CONTROL SYSTEM E11 - MAIN SHAFT E11 - MAIN SHAFT E12 - LOWER CRANKCASE E12 - LOWER CRANKCASE E13 - WATER PUMP E13 - WATER PUMP F21 - THROTTLE BODY F21 - THROTTLE BODY F23 - GEARSHIFT F23 - GEARSHIFT
E10 - SHIFT CONTROL SYSTEM
Ref. SKU Description Notes Availability
Price (tax excl.)
1 72110105 OIL SEAL -14X22X5 Available on backorder
€2,50
1
2 70090260 NEEDLE BEARING-14X22X16 Available on backorder
€3,00
1
3 15070074 GEARSHIFT AXLE ASSY Available on backorder
€18,50
1
4 72011363 SCREW M8X41 Available on backorder
€1,00
1
5 73131869 SHIFT SHAFT LIMIT PRESSURE PLATE Available on backorder
€0,50
1
6 72010381 BOLT-M6X14 Available on backorder
€0,50
1
7 72012360 BOLT-M8X20 Available on backorder
€0,50
1
8 15090019 GEARSHIFT WHEEL Available on backorder
€12,00
1
9 72010468 BOLT-GEAR SHIFTING POSITIONING-M6X14 Available on backorder
€0,50
1
10 73131875 SHIFT POSITIONING PLATE Available on backorder
€2,00
1
11 72010157 BOLT-M6X16 In Stock
€1,00
1
12 72040736 WASHER-6X18X2 Available on backorder
€0,50
1
13 70090257 INPUT SHAFT BEARING Available on backorder
€3,00
1
14 72040167 WASHER 6.5X14.2X1 Available on backorder
€0,90
1
15 72120183 SPRING Available on backorder
€0,50
1
16 15180044 GEAR SHIFT CONTROL SHAFT Available on backorder
€25,00
1
17 15140077 PIN FORK Available on backorder
€3,00
1
18 15140074 LEFT FORK Available on backorder
€9,00
1
19 15140076 MIDDLE FORK Available on backorder
€9,00
1
20 15140075 RIGHT FORK Available on backorder
€9,00
1
21 15050085 GEAR SHIFT CONTROL SHAFT ASSY Available on backorder
€59,00
1
22 15180045 DOWEL PIN-D4X8 Available on backorder
€0,50
1
