034 - SIDE PANEL ASSY

016 - AIR FILTER ASSY 016 - AIR FILTER ASSY 017 - BRAKE SYSTEM FRONT 017 - BRAKE SYSTEM FRONT 018 - BRAKE SYSTEM REAR 018 - BRAKE SYSTEM REAR 019 - ANTI - LOCK BRAKING SYSTEM ABS 019 - ANTI - LOCK BRAKING SYSTEM ABS 020 - FOOTREST ASSY 020 - FOOTREST ASSY 021 - FRONT ALLOY WHEEL ASSY 021 - FRONT ALLOY WHEEL ASSY 022 - FUEL TANK ASSY 022 - FUEL TANK ASSY 023 - FRONT FENDER ASSY 023 - FRONT FENDER ASSY 024 - RADIATOR COOLING SYSTEM 024 - RADIATOR COOLING SYSTEM 025 - REAR FENDER ASSY 025 - REAR FENDER ASSY 026 - REAR ALLOY WHEEL ASSY 026 - REAR ALLOY WHEEL ASSY 027 - SEAT ASSY 027 - SEAT ASSY 028 - SILENCER ASSY 028 - SILENCER ASSY 029 - STEERING 029 - STEERING 030 - FRONT FORK ASSY 030 - FRONT FORK ASSY 031 - FRONT FORK MOUNTINGS 031 - FRONT FORK MOUNTINGS 032 - FAIRING ASSY 032 - FAIRING ASSY 034 - SIDE PANEL ASSY 034 - SIDE PANEL ASSY 035 - FRAME ASSY - FRAME - MOUNTINGS SIDE STAND 035 - FRAME ASSY - FRAME - MOUNTINGS SIDE STAND 036 - ENGINE MOUNTING SYSTEM 036 - ENGINE MOUNTING SYSTEM 037 - HANDLE BAR ASSY 037 - HANDLE BAR ASSY 038 - SWING ARM ASSY - REAR SHOCK ABSORBER 038 - SWING ARM ASSY - REAR SHOCK ABSORBER 041 - DECALS 041 - DECALS

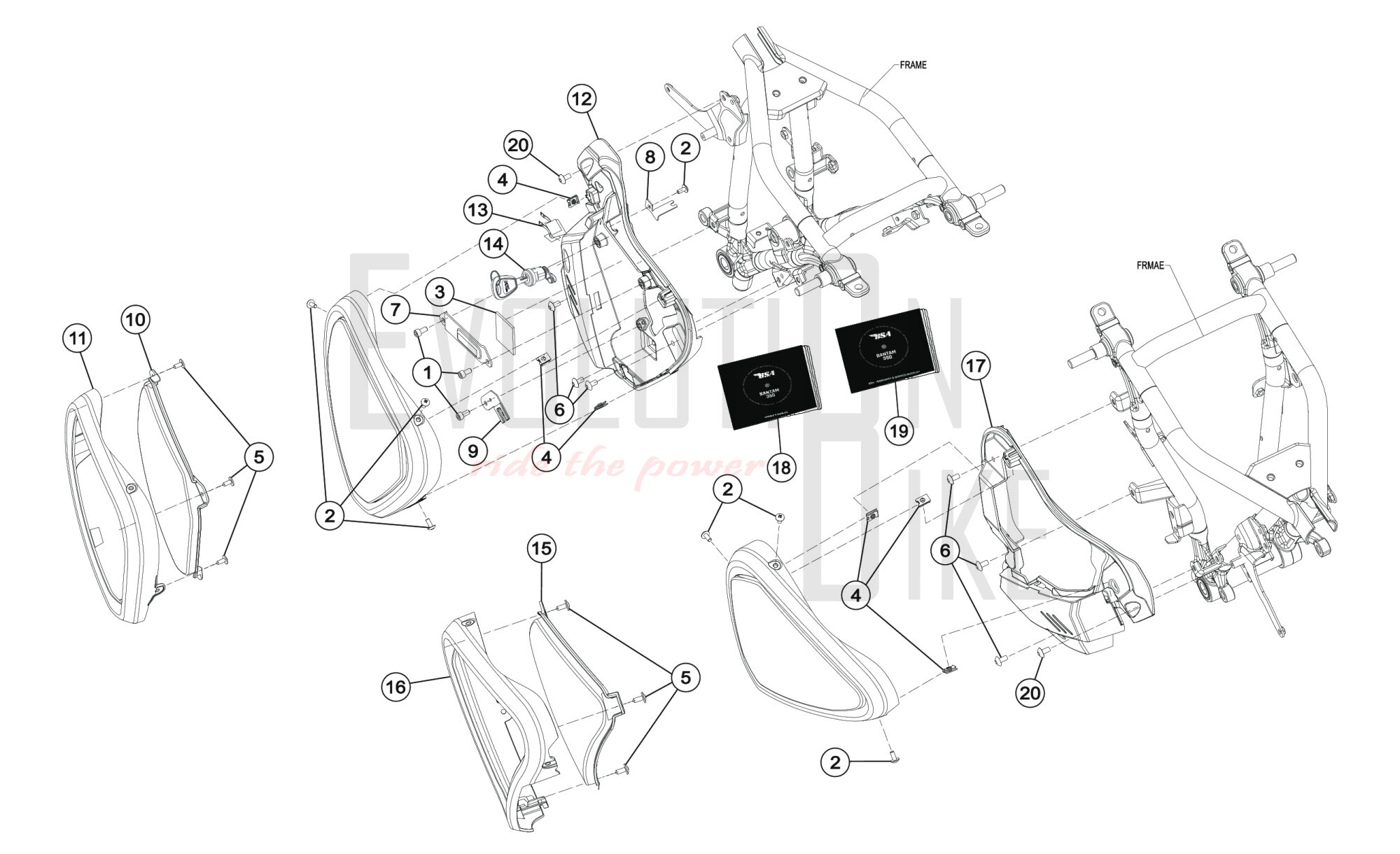

034 - SIDE PANEL ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 SP0306006 SCREW TCEI M6X12 UNI 5931 Available on backorder
€1,22
1
2 SF0212015 SCREW RDSKT M5X0.8X12XA2-70 Available on backorder
€0,30
1
3 T1503AKG0170E ECU PAD Available on backorder
€0,53
1
4 TSF0300022 NUT CLP 5MM (BLACK) Available on backorder
€0,25
1
5 SF0228003 SCR -TPRF CR ST 4.8X1.6X13 C Available on backorder
€0,18
1
6 SF0212037 SCREW RDSKT M6X1X12X8.8 Available on backorder
€0,32
1
7 T13070B10290N ECU MOUNTING BRACKET (B102) Available on backorder
€1,30
1
8 T13010B10250N SEAT LOCK CABLE BRACKET Available on backorder
€0,77
1
9 T13010B10240N FUSE BOX MOUNTING BRACKET Available on backorder
€1,06
1
10 T13010B10160A COVER SIDE PANEL LH RED GREY DT RED GREY DT Available on backorder
€39,12
1
10 T13010B10160F COVER SIDE PANEL LH BSA SILVER GLOSS BLUE SILVER DT Available on backorder
€39,12
1
10 T13010B10160W COVER SIDE PANEL LH MATT EBONY BLACK EBONY GLOSS BLACK ST Available on backorder
€40,03
1
10 T13010B10160X COVER SIDE PANEL LH IVORY GLOSS GREEN IVORY GLOSS DT Available on backorder
€39,12
1
10 T13010B10160D COVER SIDE PANEL LH YELLOW GLOSS RAL 1 YELLOW SILVER DT Available on backorder
€40,03
1
10 T13010B10160B COVER SIDE PANEL LH ADV WHITE GLOSS GREY WHITE DT Available on backorder
€39,12
1
11 T13010B10140E BOX SIDE PANEL LH GLOSS EBONY BLACK GLOSS EBONY BLACK ST & YELLOW SILVER DT Available on backorder
€40,21
1
11 T13010B10140G BOX SIDE PANEL LH OLIVE GREEN GLOSS GREEN IVORY GLOSS DT Available on backorder
€40,21
1
11 T13010B10140C BOX SIDE PANEL LH STEEL BLUE GLOSS BLUE SILVER DT Available on backorder
€40,21
1
11 T13010B10140L BOX SIDE PANEL LH RDS GREY GLOSS GREY WHITE DT & RED GREY DT Available on backorder
€40,21
1
12 T13010B10120N SIDE PANEL INNER LH Available on backorder
€21,45
1
13 T0901GKG1740D LOCK SPRING PLATE (SEAT LOCK) Available on backorder
€0,38
1
14 T09000B10030N SEAT LOCK WITH KEY (B102) Available on backorder
€129,74
1
15 T13010B10170F COVER SIDE PANEL RH BSA SILVER GLOSS BLUE SILVER DT Available on backorder
€39,12
1
15 T13010B10170D COVER SIDE PANEL RH YELLOW GLOSS RAL 10 YELLOW SILVER DT Available on backorder
€40,03
1
15 T13010B10170X COVER SIDE PANEL RH IVORY GLOSS GREEN IVORY GLOSS DT Available on backorder
€39,12
1
15 T13010B10170A COVER SIDE PANEL RH RED GREY DT RED GREY DT Available on backorder
€39,12
1
15 T13010B10170W COVER SIDE PANEL RH MATT EBONY BLACK EBONY GLOSS BLACK ST Available on backorder
€40,03
1
15 T13010B10170B COVER SIDE PANEL RH ADV WHITE GLOSS GREY WHITE DT Available on backorder
€39,12
1
16 T13010B10150E BOX SIDE PANEL RH GLOSS EBONY BLACK GLOSS EBONY BLACK ST & YELLOW SILVER DT Available on backorder
€40,21
1
16 T13010B10150G BOX SIDE PANEL RH OLIVE GREEN GLOSS GREEN IVORY GLOSS DT Available on backorder
€40,21
1
16 T13010B10150C BOX SIDE PANEL RH STEEL BLUE GLOSS BLUE SILVER DT Available on backorder
€40,21
1
16 T13010B10150L BOX SIDE PANEL RH RDS GREY GLOSS GREY WHITE DT & RED GREY DT Available on backorder
€40,21
1
17 T13010B10130N SIDE PANEL INNER RH Available on backorder
€22,66
1
18 T14090B10060N OWNERS MANUAL-BSA-BANTAM (B102) Available on backorder
€6,34
1
19 T14090B10030N BSA WARRANTY & SERVICE BOOKLET Available on backorder
€5,72
1
20 SF0212049 SCREW RDSKT M6X1X12X8.8 Available on backorder
€0,25
1
