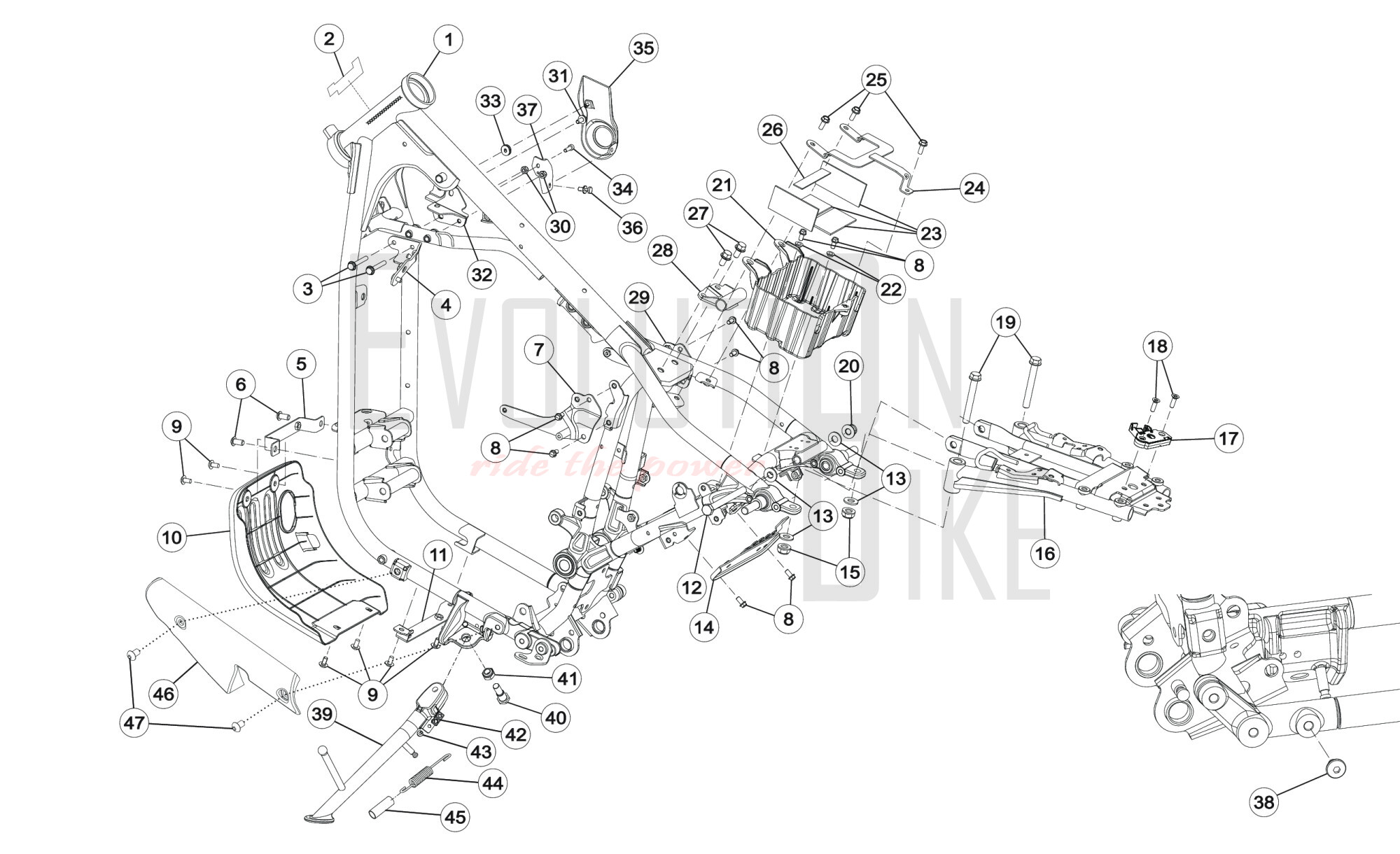

035 - FRAME ASSY - FRAME - MOUNTINGS SIDE STAND

Ref. SKU Description Notes Availability 1 T08000B10610N FRAME KIT WITH OUTER BALL RACE (B102) Available on backorder 2 T08000J10010N ANTI ABRASIVE TAPE HEAD PIPE Available on backorder 3 SF0102003 BOLT HEX FL M6X1X45X8.8XZN Available on backorder 4 T08000J20500N HORN MOUNTING BRACKET Available on backorder 5 T08000KW0800N BASH PLATE MOUNTING BRACKET Available on backorder 6 SF0212042 SCREW RDSKT M8X1.25X16X8.8 Available on backorder 7 T08000B10520N SIDE COVER MOUNTING LH BRACKET LOOSE Available on backorder 8 SP0906041 FLANGED HEAD BOLT-SH M6X12 Available on backorder 9 SF0212037 SCREW RDSKT M6X1X12X8.8 Available on backorder 10 T08000KW0630N BASH PLATE Available on backorder 11 T08000KW0830N BASH PLATE MOUNTING BRACKET LOWER Available on backorder 12 SF0101088 BOLT HEX M10X1.5X110X8.8XZN Available on backorder 13 TSF0401130 WASHER M10 (10X22X2.0) Available on backorder 14 T08000B10550N UNDERTRAY FRONT MOUNTING BRACKET LOOSE Available on backorder 15 TSF0318009 FLANGE U NUT M10X1 5 Available on backorder 16 T08000B10540N SUBFRAME ASSEMBLY Available on backorder 17 MF01450000400 SEAT LATCH (A02) Available on backorder 18 SF0211010 SCREW FTCS CR M6 X 1 - 20 Available on backorder 19 TSF0102301 FLANGE BOLT M10 X 75 Available on backorder 20 SF0315017 NUT HX NYL FL M10X1.50X13.5X10 Available on backorder 21 T08000KW0220N BATTERY BOX Available on backorder 22 MH01790003300 SPACER H=4 FOR M6 Available on backorder 23 T1503DKE0250N PAD BATTERY BOX Available on backorder 24 T08000KW0490N BATTREY CLAMP Available on backorder 25 95701-06016-00 BOLT FLANGE 6X16 Available on backorder 26 T15010KE0840N FOAM BATTERY CLAMP (J101) Available on backorder 27 SF0202234 BOLT HEX FL M8X1.25X16X10.9 Available on backorder 28 T1001BJ10010N FUEL TANK REAR MOUNTING BRACKET ASSEMBLY Available on backorder 29 T08000B10530N SIDE COVER MOUNTING RH BRACKET LOOSE Available on backorder 30 TSF0318007 M6 NYLOC NUT Available on backorder 31 TSF0102282 FLANGE BOLT M6*14 Available on backorder 32 T08000J10150N IGNITION SWITCH MTG BRKT Available on backorder 33 T13160J10110N GROMMET SPECIAL Available on backorder 34 SF0105067 HEX SOC CAP HEAD SCREW M5*16*0.8 Available on backorder 35 T13000J10040N IGNITION SWITCH COVER Available on backorder 36 T13000J20290N RIVET Available on backorder 37 T0401AJ10020N RADIATOR NECK MTG LOOSE BRKT Available on backorder 38 T13000Y50140N PLASTIC PLUG M8 Available on backorder 39 T2301AB10060E SIDE STAND BLACK Available on backorder 40 T2302BKW0020N STEP BOLT SIDE STAND JAWA Available on backorder 41 SF0302158 NYLOC NUT 10 MM Available on backorder 42 T1501MKW0050N SIDE STAND SWITCH ASSEMBLY Available on backorder 43 SF0225044 SCREW PAN 4X10 Available on backorder 44 T2302BKW0010N SPRING SIDE STAND JAWA Available on backorder 45 T20000KW0140N RUBBER SLEEVE RETURN SPRING Available on backorder 46 T13010B10210N FRAME BOTTOM COVER Available on backorder 47 SF0212046 SCREW RDSKT M8X1.25X12X8.8 Available on backorder
