HomeSWMOEM PartsSM 500R E5 VaTM MY24FrameF02 - RADIATOR ASSY

F02 - RADIATOR ASSY

F02 - RADIATOR ASSY F02 - RADIATOR ASSY F03 - AIR FILTER F03 - AIR FILTER F04 - FRAME ASSEMBLY F04 - FRAME ASSEMBLY F05 - FRONT FORK ASSEMBLY F05 - FRONT FORK ASSEMBLY F06 - REAR SHOCK ABSORBER ASSEMBLY F06 - REAR SHOCK ABSORBER ASSEMBLY F07 - EQUALIZER/TIE ROD F07 - EQUALIZER/TIE ROD F08 - FORK ASSY F08 - FORK ASSY F09 - HANDLEBAR AND CONTROLS F09 - HANDLEBAR AND CONTROLS F10 - REAR BRAKE PUMP COMBINATION F10 - REAR BRAKE PUMP COMBINATION F11 - ABS UNIT COMBINATION F11 - ABS UNIT COMBINATION F12 - FRONT FENDER/REAR FENDER ASSY F12 - FRONT FENDER/REAR FENDER ASSY F13 - FUEL TANK/FUEL PUMP COMBINATION F13 - FUEL TANK/FUEL PUMP COMBINATION F14 - CHARCOAL CANISTER/SOLENOID VALVE F14 - CHARCOAL CANISTER/SOLENOID VALVE F15 - EXHAUST SYSTEM F15 - EXHAUST SYSTEM F16 - MASTER CYLINDER COMBINATION F16 - MASTER CYLINDER COMBINATION F17 - FRONT WHEEL F17 - FRONT WHEEL F18 - REAR WHEEL F18 - REAR WHEEL F21 - OIL AND GAS SEPARATOR F21 - OIL AND GAS SEPARATOR F22 - DECAL F22 - DECAL

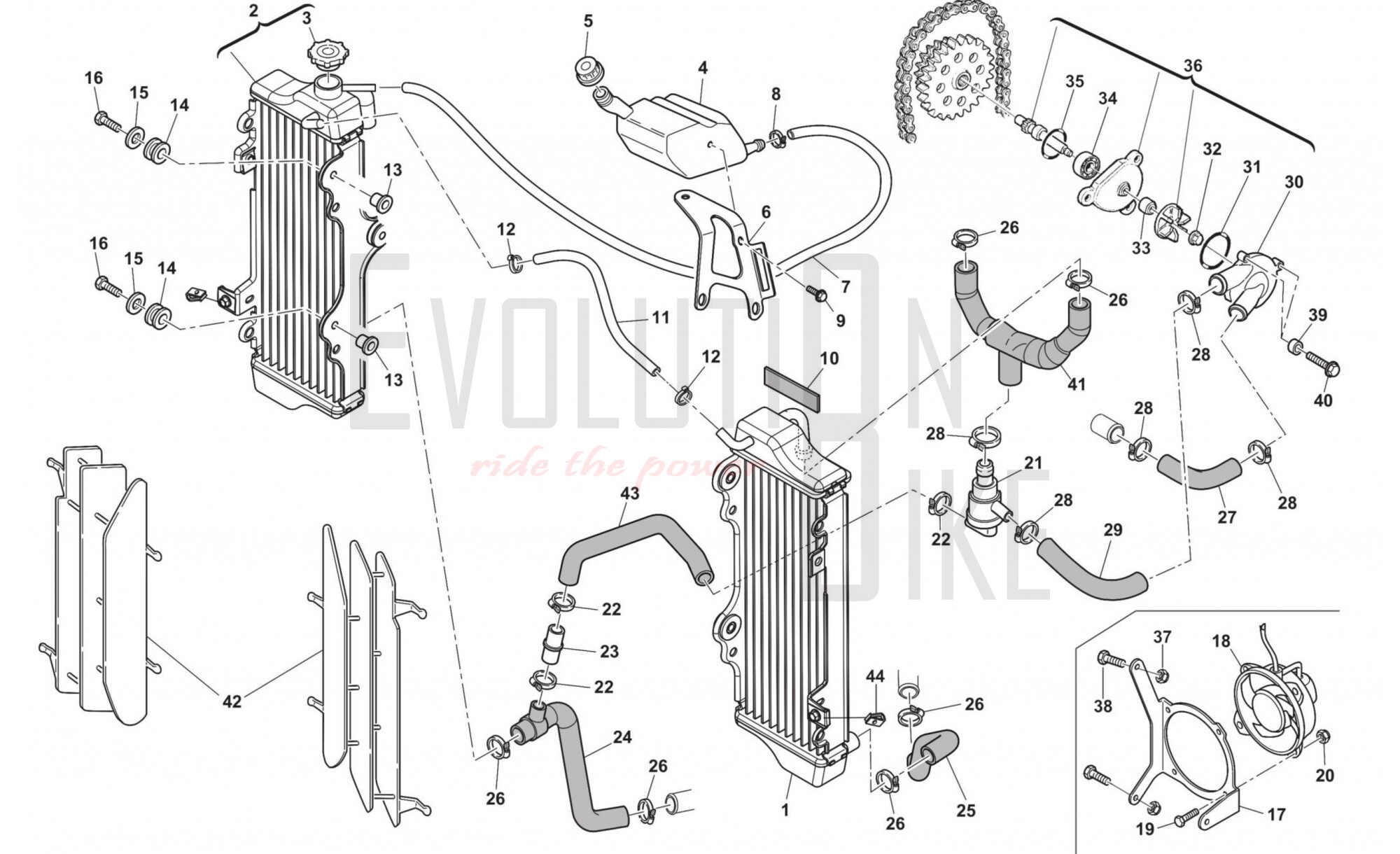

F02 - RADIATOR ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F000P00022 LEFT, RADIATOR Available on backorder
€141,67
1
2 F000P00023 RIGHT, RADIATOR In Stock
€147,82
1
3 F000P00717 WATER TANK COVER Available on backorder
€9,90
1
4 8000B0612 WATER RESERVOIR TANK Available on backorder
€18,48
1
5 800040427 WATER BOTTLE COVER In Stock
€2,40
1
6 8000B0611 BRACKET, WATER TANK Available on backorder
€5,60
1
7 8000A1281 HOSE Available on backorder
€3,00
1
8 8D0091687 CLAMP Available on backorder
€1,50
1
9 ZF0067997 SCREW TEF M5X0.8X6.5 Available on backorder
€0,70
1
10 800037140 CUSHION Available on backorder
€1,00
1
11 8000H1298 HOSE JOINT, RADIATOR Available on backorder
€0,80
1
12 8000H1981 CLAMP 13X5 MM Available on backorder
€1,10
1
13 800059802 BUSHING Available on backorder
€2,43
1
14 F000P00025 H-SHAPED RUBBER Available on backorder
€1,00
1
15 Z00059801 WASHER Available on backorder
€0,90
1
16 Z00062729 SCREW TEF M6X1X25 CH8 Available on backorder
€0,20
1
17 F000P00685 BRACKET-FAN Available on backorder
€11,20
1
18 8000A7715 FAN, WATER COOLER Available on backorder
€60,00
1
19 60ND01030 SCREW TE M4X0.7X25 Available on backorder
€0,20
1
20 Z00040717 NUT, SELF LOCKING M4X0.7 In Stock
€0,20
1
21 8B0075984 THERMOSTAT Available on backorder
€83,00
1
22 8A0092249 HOSE CLAMP R 96-175 MM Available on backorder
€1,50
1
23 800094680 JOINT, HOSE Available on backorder
€13,30
1
24 8000H1205 HOSE, WATER RH Available on backorder
€57,65
1
25 F000P00116 HOSE, WATER Available on backorder
€9,19
1
26 8A0099475 CLAMP HOP 8-12/22 MM Available on backorder
€5,50
1
27 800099708 HOSE WATER CYLINDER HEAD PUMP Available on backorder
€5,00
1
28 8B0099475 CLAMP HOP 8-16/27 MM Available on backorder
€6,00
1
29 F000P02110 HOSE PUMP THERMOSTAT VALVE Available on backorder
€8,29
1
30 8000H1958 CASE, WATER PUMP Available on backorder
€19,00
1
31 800027122 O-RING 3237 60X2.62 In Stock
€0,50
1
32 Z00056443 NUT, SELF LOCKING M5X0.8 H6 Available on backorder
€0,70
1
33 M000P01958 OIL SEAL 8X16X10 Available on backorder
€7,00
1
34 800034317 BEARING, BALL 12X28X8 Available on backorder
€11,00
1
35 800040007 O-RING 2125 In Stock
€0,30
1
36 M000A01955 WATER PUMP ASSY Available on backorder
€74,37
1
37 Z00044240 NUT, SELF LOCKING M6X1 CH10 In Stock
€0,50
1
38 Z00062727 SCREW TE M6X1X16 CH8 Available on backorder
€0,50
1
39 161795501 BUSH 8X6.4X6 Available on backorder
€1,10
1
40 Z00062730 SCREW TE M6X1X30 CH8 Available on backorder
€0,20
1
41 F000P02109 HOSE, WATER Available on backorder
€61,86
1
42 80A0A0872 RADIATOR GRILLE Available on backorder
€13,30
1
43 F000P02111 HOSE, BYPASS Available on backorder
€10,97
1
44 U00055134 NUT CLAMP M5 In Stock
€0,90
1
