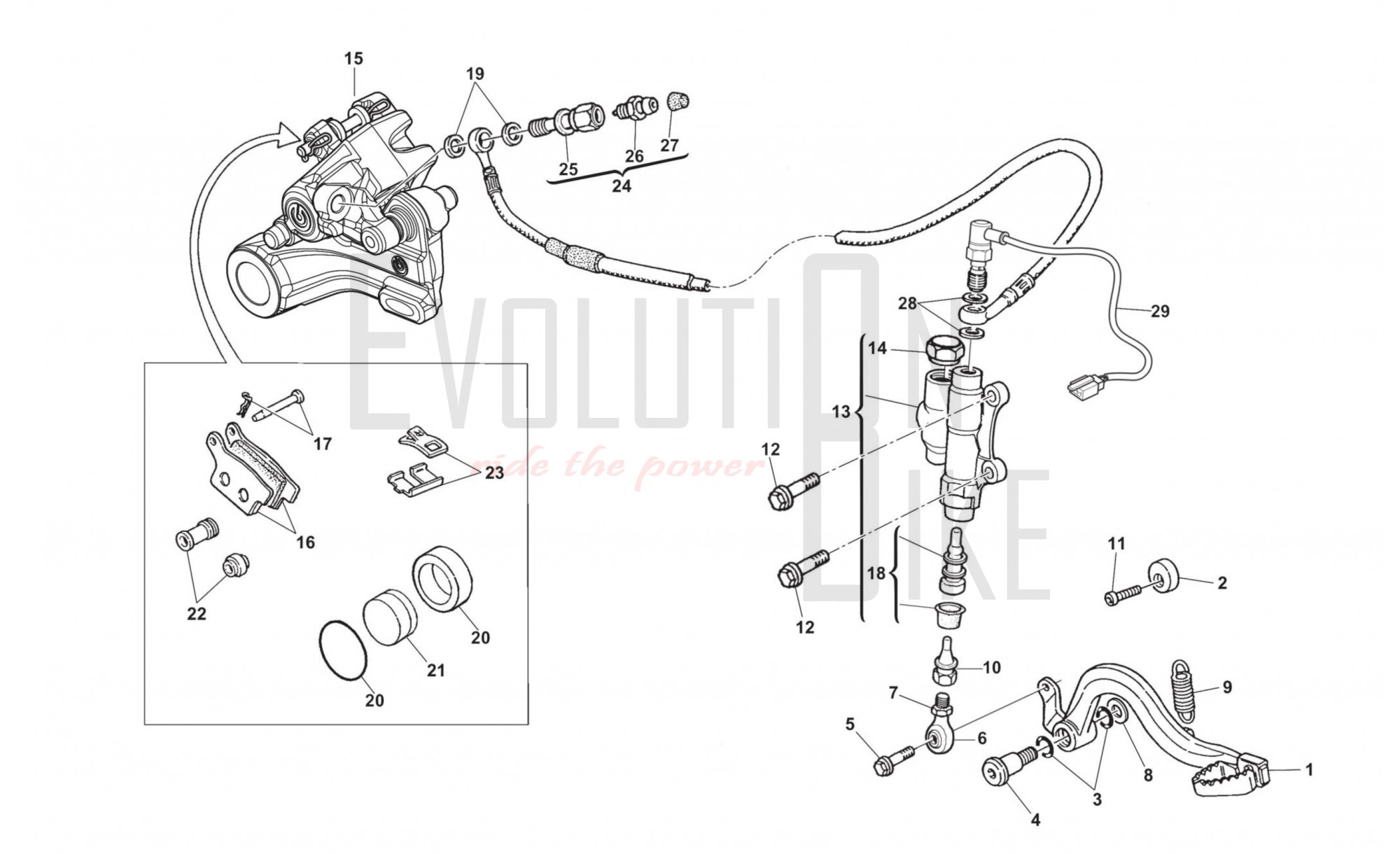

F10 - REAR BRAKE PUMP COMBINATION

F02 - RADIATOR ASSY F02 - RADIATOR ASSY F03 - AIR FILTER F03 - AIR FILTER F04 - FRAME ASSEMBLY F04 - FRAME ASSEMBLY F05 - FRONT FORK ASSEMBLY F05 - FRONT FORK ASSEMBLY F06 - REAR SHOCK ABSORBER ASSEMBLY F06 - REAR SHOCK ABSORBER ASSEMBLY F07 - EQUALIZER/TIE ROD F07 - EQUALIZER/TIE ROD F08 - FORK ASSY F08 - FORK ASSY F09 - HANDLEBAR AND CONTROLS F09 - HANDLEBAR AND CONTROLS F10 - REAR BRAKE PUMP COMBINATION F10 - REAR BRAKE PUMP COMBINATION F11 - ABS UNIT COMBINATION F11 - ABS UNIT COMBINATION F12 - FRONT FENDER/REAR FENDER ASSY F12 - FRONT FENDER/REAR FENDER ASSY F13 - FUEL TANK/FUEL PUMP COMBINATION F13 - FUEL TANK/FUEL PUMP COMBINATION F14 - CHARCOAL CANISTER/SOLENOID VALVE F14 - CHARCOAL CANISTER/SOLENOID VALVE F15 - EXHAUST SYSTEM F15 - EXHAUST SYSTEM F16 - MASTER CYLINDER COMBINATION F16 - MASTER CYLINDER COMBINATION F17 - FRONT WHEEL F17 - FRONT WHEEL F18 - REAR WHEEL F18 - REAR WHEEL F21 - OIL AND GAS SEPARATOR F21 - OIL AND GAS SEPARATOR F22 - DECAL F22 - DECAL
F10 - REAR BRAKE PUMP COMBINATION
Ref. SKU Description Notes Availability
Price (tax excl.)
1 8000A7634 REAR BRAKE ARM ASSEMBLY In Stock
€73,65
1
2 8A0069125 LIMIT WHEEL Available on backorder
€2,65
1
3 800022551 O-RING In Stock
€0,20
1
4 Y00055902 BOLT Available on backorder
€23,45
1
5 Z00062727 SCREW TE M6X1X16 CH8 Available on backorder
€0,50
1
6 8A0076055 BALL JOINT Available on backorder
€13,50
1
7 61ND15062 NUT M6X1 H4 CH10 Available on backorder
€0,15
1
8 8000H1412 WASHER 10,5X25X2 Available on backorder
€1,50
1
9 8000H5148 BRAKE PEDAL SPRING In Stock
€1,21
1
10 8000A7635 BRAKE PUSH ROD Available on backorder
€12,76
1
11 Y00055241 SCREW TSEI M6X1X20 CH5 Available on backorder
€0,50
1
12 Z00062726 SCREW TEF M6X1X14 In Stock
€1,00
1
13 8000A7633 CYLINDER, REAR MASTER Available on backorder
€89,00
1
14 8000A9447 PLUG BRAKE PUMP Available on backorder
€23,00
1
15 F000P02127 CALIPER, REAR BRAKE Available on backorder
€213,00
1
16 8000A2790 PADS SET, REAR BRAKE In Stock
€58,00
1
17 8000A2791 PAD PINS OVERHAUL SET Available on backorder
€8,40
1
18 8000A9448 ROD, BRAKE Available on backorder
€25,00
1
19 800021480 WASHER 14X10.2X1 MM Available on backorder
€0,90
1
20 8000A2794 KIT GASKET PISTON Available on backorder
€16,90
1
21 8000A2793 PISTON, CALIPER Available on backorder
€45,00
1
22 800079066 CAPS OVERHAUL SET Available on backorder
€16,90
1
23 8000A2792 SUPPORT, PAD Available on backorder
€8,90
1
24 8000A3975 SCREW, BLEED ASSY Available on backorder
€9,90
1
25 8000A3976 SCREW, BLEED Available on backorder
€5,00
1
26 8000A3977 VALVE, BREATHER Available on backorder
€1,50
1
27 800053259 CAP, BLEEDER SCREW Available on backorder
€1,00
1
28 8A0021480 COPPER WASHER -D14.7XD10XH2 Available on backorder
€2,00
1
29 10000416 REAR STOP SWITCH Available on backorder
€22,72
1
