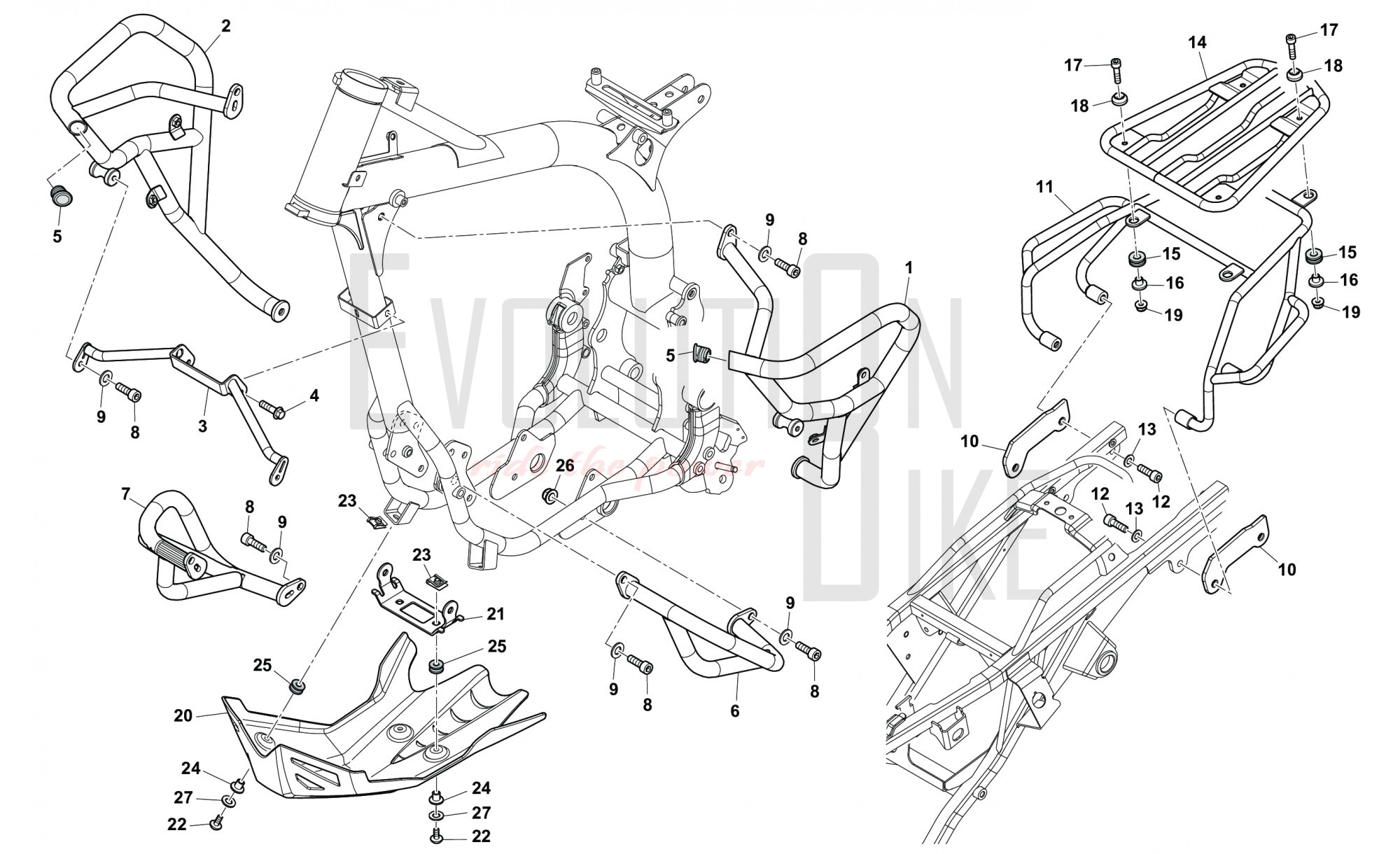

16B - FRAME FOOT RESTS
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F000P00934 COVER, FRAME LH Available on backorder
€38,00
1
2 F000P00935 COVER, FRAME RH Available on backorder
€38,00
1
3 F000P01136 HOLDER Available on backorder
€22,00
1
4 Z00062728 SCREW TEF M6X1X20 CH8 In Stock
€0,15
1
5 F000P01362 PLUG Available on backorder
€0,30
1
6 F000P00940 GUARD ENGINE LH Available on backorder
€28,00
1
7 F000P00941 GUARD ENGINE RH Available on backorder
€28,00
1
8 60ND02555 SCREW Available on backorder
€0,30
1
9 62ND15506 WASHER Available on backorder
€0,20
1
10 F000P01586 PLATE Available on backorder
€7,57
1
11 F000P01587 HANDLE, PILLION RIDER Available on backorder
€77,17
1
12 60ND02556 SCREW TCEI M8X25 Available on backorder
€0,30
1
13 Z00056377 WASHER 16X8.3X1 Available on backorder
€1,00
1
14 F000P00938 CARRIER Available on backorder
€62,61
1
15 800041862 PAD, VIBRATION DAMPER In Stock
€0,60
1
16 8000B2799 SPACER In Stock
€0,90
1
17 60ND02510 SCREW TCEI M6X25 Available on backorder
€0,50
1
18 F000P00768 WASHER, CONICAL SPRING Available on backorder
€3,50
1
19 Z00044240 NUT, SELF LOCKING M6X1 CH10 In Stock
€0,50
1
20 F000P02544 GUARD, ENGINE Available on backorder
€161,61
1
21 F000P01529 BRACKET, ENGINE GUARD Available on backorder
€10,24
1
22 Z00062729 SCREW TEF M6X1X25 CH8 Available on backorder
€0,20
1
23 U00046893 NUT CLAMP M6X1 Available on backorder
€1,00
1
24 8B00B2799 SPACER Available on backorder
€2,00
1
25 8000H3250 GROMMET Available on backorder
€0,50
1
26 Y00043928 NUT M8X1.25 H8 CH12 Available on backorder
€0,85
1
27 Z00048814 WASHER 18X6.4X2 MM Available on backorder
€0,90
1
