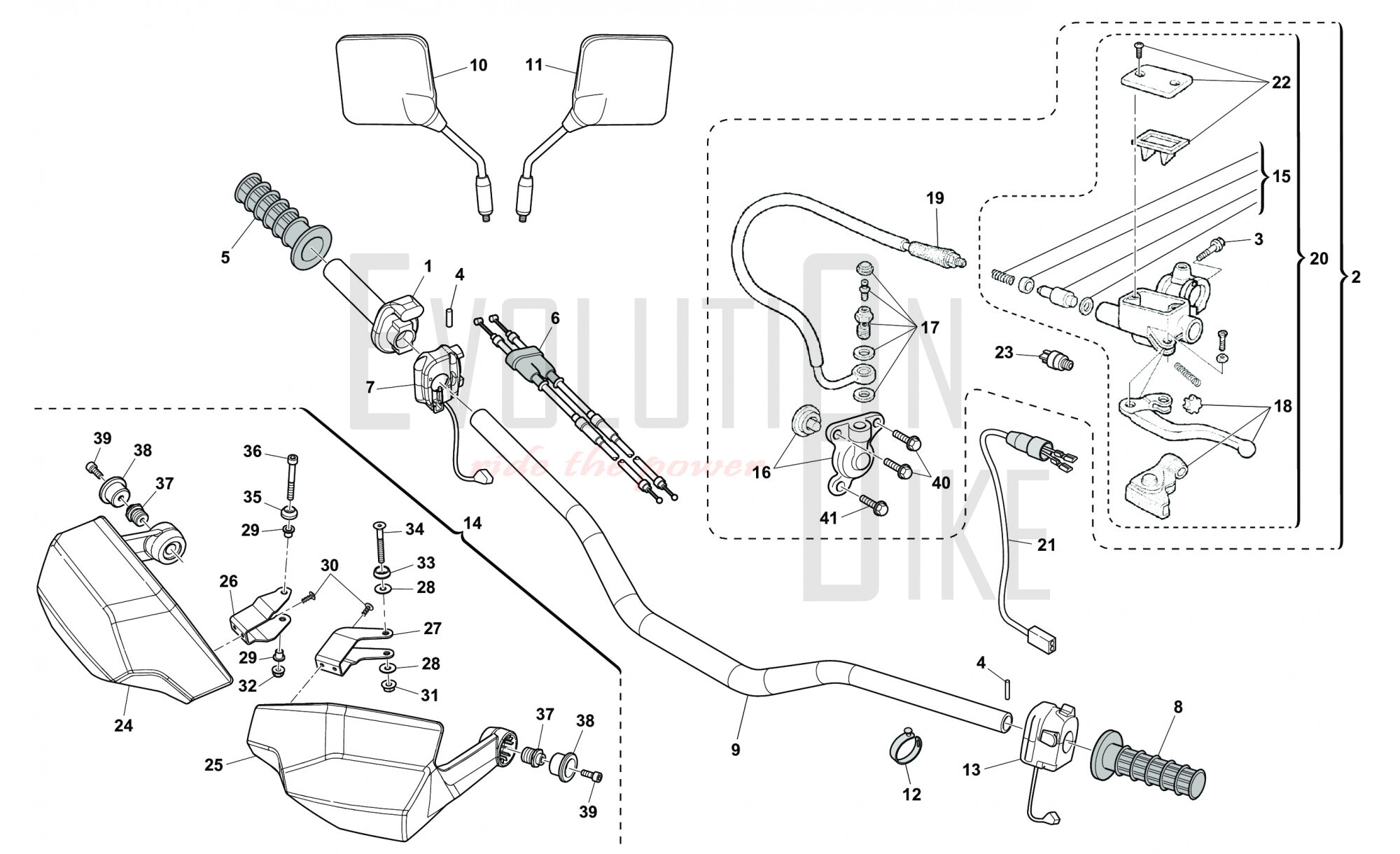

021 - HANDLEBAR AND CONTROLS
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F000A02009 THROTTLE CONTROL Available on backorder
€21,00
1
2 F000A01921 CLUTCH CONTROL ASSY Available on backorder
€185,00
1
3 Z00062727 SCREW TE M6X1X16 CH8 Available on backorder
€0,50
1
4 8000A1074 RUBBER PIN Available on backorder
€0,60
1
5 F000P00943 GRIP RH Available on backorder
€7,50
1
6 F000P02158 CABLE, THROTTLE Available on backorder
€33,00
1
7 E000P02185 HANDLE SWITCH, RIGHT Available on backorder
€23,00
1
8 F000P00944 GRIP, LH Available on backorder
€7,50
1
9 F000P01543 HANDLEBAR Available on backorder
€110,25
1
10 F000P01471 RIGHT REARVIEW MIRROR Available on backorder
€22,60
1
11 FA00P01471 LEFT REARVIEW MIRROR Available on backorder
€22,60
1
12 800071578 CLAMP 78 MM Available on backorder
€1,10
1
13 E000P02149 LEFT HANDLEBAR SWITCHES Available on backorder
€49,00
1
14 A000A00929 GUARD, KNUCKLE KIT Available on backorder
€52,00
1
15 F000A00797 CYLINDER KIT MASTER CLUTCH Available on backorder
€28,00
1
16 F000A00798 KIT SPINGIFRIZIONE IDRAULICO Available on backorder
€124,00
1
17 F000A00799 SCREW, BLEED Available on backorder
€5,50
1
18 F000A00800 LEVER, CLUTCH In Stock
€23,00
1
19 F000P00801 HOSE, CLUTCH OIL Available on backorder
€68,61
1
20 F000A01922 CLUTCH MASTER CYLINDER Available on backorder
€130,00
1
21 800075477 CABLE, STOP SWITCH Available on backorder
€4,60
1
22 F000A01923 COVER, CLUTCH MASTER CYLINDER Available on backorder
€29,90
1
23 F000P00804 MICROSWITCH Available on backorder
€6,90
1
24 F000P01415 GUARD, KNUCKLE, RH In Stock
€24,00
1
25 F000P01416 GUARD, KNUCKLE, LH Available on backorder
€24,00
1
26 F000P01467 BRACKET, RH Available on backorder
€8,83
1
27 F000P01468 BRACKET, LH Available on backorder
€8,83
1
28 62ND15548 WASHER Available on backorder
€0,15
1
29 8000H0822 BUSH In Stock
€0,50
1
30 F000P03911 HEX SOCKET THREAD CUT. SCREW-D4-L10 Available on backorder
€0,30
1
31 61ND15192 NUT, SELF LOCKING M5X0,8 CH8 Available on backorder
€0,10
1
32 Z00044240 NUT, SELF LOCKING M6X1 CH10 In Stock
€0,50
1
33 F000P01536 BUSH Available on backorder
€3,90
1
34 ZA0026970 SCREW M5X40 Available on backorder
€0,40
1
35 F000P00768 WASHER, CONICAL SPRING Available on backorder
€3,50
1
36 60ND02515 SCREW TCEI M6X50 Available on backorder
€0,50
1
37 F000P01470 SCREW M16X1.5 Available on backorder
€7,00
1
38 F000P01469 PLUG Available on backorder
€6,31
1
39 60ND02509 VITE TCEI M6X1-CH5-L20 Available on backorder
€0,20
1
40 Z00062728 SCREW TEF M6X1X20 CH8 In Stock
€0,15
1
41 ZE0067545 SCREW TEF M6X1X40 CH8 Available on backorder
€0,25
1
