019 - REAR SUSPENSION LINKAGE

16A - FRAME FOOT RESTS 16A - FRAME FOOT RESTS 16B - FRAME FOOT RESTS 16B - FRAME FOOT RESTS 017 - FRONT FORK ASSEMBLY 017 - FRONT FORK ASSEMBLY 018 - REAR SWING ARM 018 - REAR SWING ARM 019 - REAR SUSPENSION LINKAGE 019 - REAR SUSPENSION LINKAGE 020 - REAR SUSPENSION 020 - REAR SUSPENSION 021 - HANDLEBAR AND CONTROLS 021 - HANDLEBAR AND CONTROLS 022 - BODY 022 - BODY 023 - COVER RADIATOR-FUEL TANK 023 - COVER RADIATOR-FUEL TANK 024 - EXHAUST SYSTEM 024 - EXHAUST SYSTEM 025 - FRONT BRAKING SYSTEM 025 - FRONT BRAKING SYSTEM 25A - BRAKING SYSTEM ABS 25A - BRAKING SYSTEM ABS 026 - REAR BRAKING SYSTEM 026 - REAR BRAKING SYSTEM 027 - FRONT WHEEL SUPERDUAL T 027 - FRONT WHEEL SUPERDUAL T 27A - FRONT WHEEL SUPERDUAL X 27A - FRONT WHEEL SUPERDUAL X 028 - WHEEL REAR SUPERDUAL T 028 - WHEEL REAR SUPERDUAL T 28A - WHEEL REAR SUPERDUAL X 28A - WHEEL REAR SUPERDUAL X 031 - TRANSFER 031 - TRANSFER 029 - LOCK SET METERS 029 - LOCK SET METERS

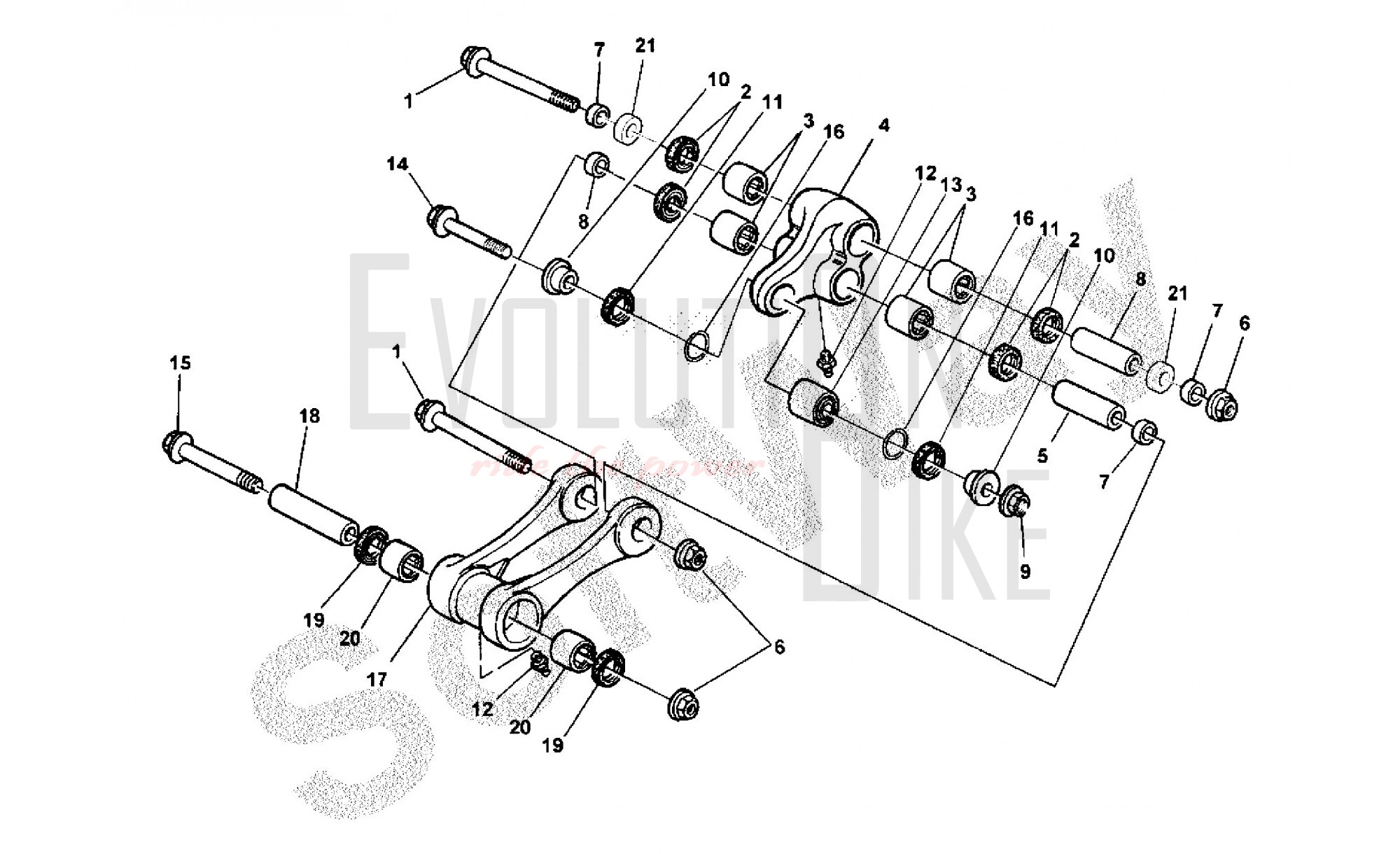

019 - REAR SUSPENSION LINKAGE
Ref. SKU Description Notes Availability
Price (tax excl.)
1 800093124 AXLE M12X1.25X103 MM Available on backorder
€7,00
1
2 800086137 SEAL, OIL 34X26X4 Available on backorder
€4,50
1
3 800086136 BEARING, NEEDLE HK2216 Available on backorder
€9,00
1
4 800097051 SWINGARM, CUSHION RELAY Available on backorder
€79,72
1
5 800086176 WRIST PIN 22X15X50.4 Available on backorder
€13,50
1
6 Z00042023 NUT M12X1.25 Available on backorder
€4,00
1
7 8000H3015 BUSH 26X15X5 Available on backorder
€2,50
1
8 8D0086176 PIN Available on backorder
€12,50
1
9 Z00042022 NUT M10X1.25 H10 CH14 Available on backorder
€0,95
1
10 151133302 BUSH Available on backorder
€2,80
1
11 800038767 GROMMET 26X15X3 Available on backorder
€3,50
1
12 800001412 NIPPLE, GREASE M6X1 Available on backorder
€1,50
1
13 800072168 BALL JOINT 12X26X16 Available on backorder
€13,90
1
14 ZD0062797 SCREW TE M10X1.25X47 CH14 Available on backorder
€1,80
1
15 8B0093124 SCREW M12X1.25X131 Available on backorder
€8,00
1
16 800090561 CIRCLIP RB26 DIN 7993 Available on backorder
€0,40
1
17 8A0097053 ARM RELAY, REAR CUSHION LEVER Available on backorder
€71,14
1
18 800097050 PIN Available on backorder
€15,00
1
19 800038521 SEAL RING Available on backorder
€5,50
1
20 8000A4427 BEARING, NEEDLE 28X 22X20 Available on backorder
€5,50
1
21 8A0086177 SPACER Available on backorder
€4,15
1
