018 - REAR SWING ARM

16A - FRAME FOOT RESTS 16A - FRAME FOOT RESTS 16B - FRAME FOOT RESTS 16B - FRAME FOOT RESTS 017 - FRONT FORK ASSEMBLY 017 - FRONT FORK ASSEMBLY 018 - REAR SWING ARM 018 - REAR SWING ARM 019 - REAR SUSPENSION LINKAGE 019 - REAR SUSPENSION LINKAGE 020 - REAR SUSPENSION 020 - REAR SUSPENSION 021 - HANDLEBAR AND CONTROLS 021 - HANDLEBAR AND CONTROLS 022 - BODY 022 - BODY 023 - COVER RADIATOR-FUEL TANK 023 - COVER RADIATOR-FUEL TANK 024 - EXHAUST SYSTEM 024 - EXHAUST SYSTEM 025 - FRONT BRAKING SYSTEM 025 - FRONT BRAKING SYSTEM 25A - BRAKING SYSTEM ABS 25A - BRAKING SYSTEM ABS 026 - REAR BRAKING SYSTEM 026 - REAR BRAKING SYSTEM 027 - FRONT WHEEL SUPERDUAL T 027 - FRONT WHEEL SUPERDUAL T 27A - FRONT WHEEL SUPERDUAL X 27A - FRONT WHEEL SUPERDUAL X 028 - WHEEL REAR SUPERDUAL T 028 - WHEEL REAR SUPERDUAL T 28A - WHEEL REAR SUPERDUAL X 28A - WHEEL REAR SUPERDUAL X 031 - TRANSFER 031 - TRANSFER 029 - LOCK SET METERS 029 - LOCK SET METERS

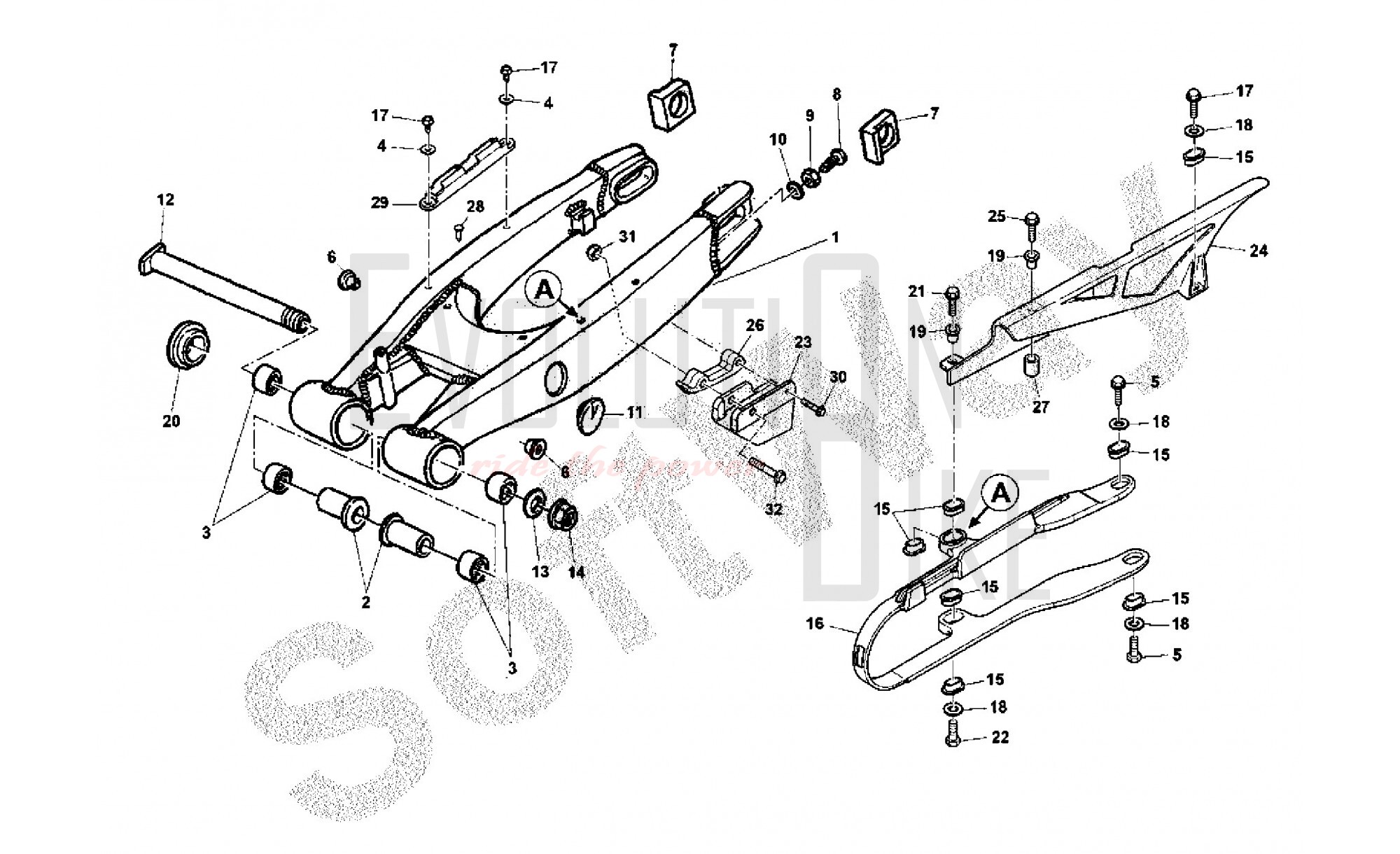

018 - REAR SWING ARM
Ref. SKU Description Notes Availability
Price (tax excl.)
1 8000H3735 REAR SWING ARM ASSY Available on backorder
€832,95
1
2 800083904 BUSH 27.5X17X45 Available on backorder
€8,50
1
3 800076283 BEARING, NEEDLE 22X28X11 Available on backorder
€7,50
1
4 800069282 BUSH 14X7X5.25 MM In Stock
€0,60
1
5 Z00020536 SCREW SELF-TAPPING 4.8X13 Available on backorder
€0,10
1
6 8A0087810 BUSH, LEFT 13MM Available on backorder
€4,00
1
7 800096941 ADJUSTER, CHAIN LH Available on backorder
€8,06
1
7 800096944 CHAIN BAR ADJUSTER Available on backorder
€8,32
1
8 ZC0061121 SCREW TE M8X1.25 Available on backorder
€0,70
1
9 Z00017810 NUT M8X1.25 H8 CH12 Available on backorder
€0,60
1
10 Z00008536 WASHER 13X8.4X2 Available on backorder
€0,90
1
11 80B074388 PLUG Available on backorder
€3,40
1
12 F000P00173 AXLE REAR SWING ARM Available on backorder
€49,02
1
13 800032388 WASHER 26X17.2X1.5 Available on backorder
€1,00
1
14 Z00071623 NUT FLANGE M16X1.5 Available on backorder
€2,80
1
15 8000H3033 OVAL-SHAPED WASHER Available on backorder
€2,00
1
16 8000H1320 BUFFER, CHAIN TOUCH DEFENSE Available on backorder
€9,50
1
17 Z00020536 SCREW SELF-TAPPING 4.8X13 Available on backorder
€0,10
1
18 Z00036137 WASHER 11X5.5X1.5 MM Available on backorder
€0,90
1
19 8A0069282 SPACER 14X7X5.25 MM In Stock
€0,60
1
20 800087027 CAP, PIVOT COVER Available on backorder
€1,80
1
21 ZA0067997 SCREW TEF M5X0.8X16 CH8 In Stock
€0,20
1
22 Z00067997 SCREW TEF M5X0.8X12 CH8 Available on backorder
€0,20
1
23 F000P00595 CHAIN OUTER GUIDE PLATE Available on backorder
€12,50
1
24 8A00A5311 GUARD, CHAIN Available on backorder
€15,90
1
25 60ND01059 SCREW TE M5X35 Available on backorder
€0,15
1
26 F000P00594 GUIDE, CHAIN INNER Available on backorder
€9,00
1
27 800097025 BUSH Available on backorder
€4,53
1
28 800075160 RIVET Available on backorder
€0,50
1
29 8000B1166 TUBE GUIDE LEDGE Available on backorder
€5,00
1
30 Z00062729 SCREW TEF M6X1X25 CH8 Available on backorder
€0,20
1
31 Y00043928 NUT M8X1.25 H8 CH12 Available on backorder
€0,85
1
32 Z00062795 SCREW TEF M8X1.25X50 CH12 Available on backorder
€3,00
1
