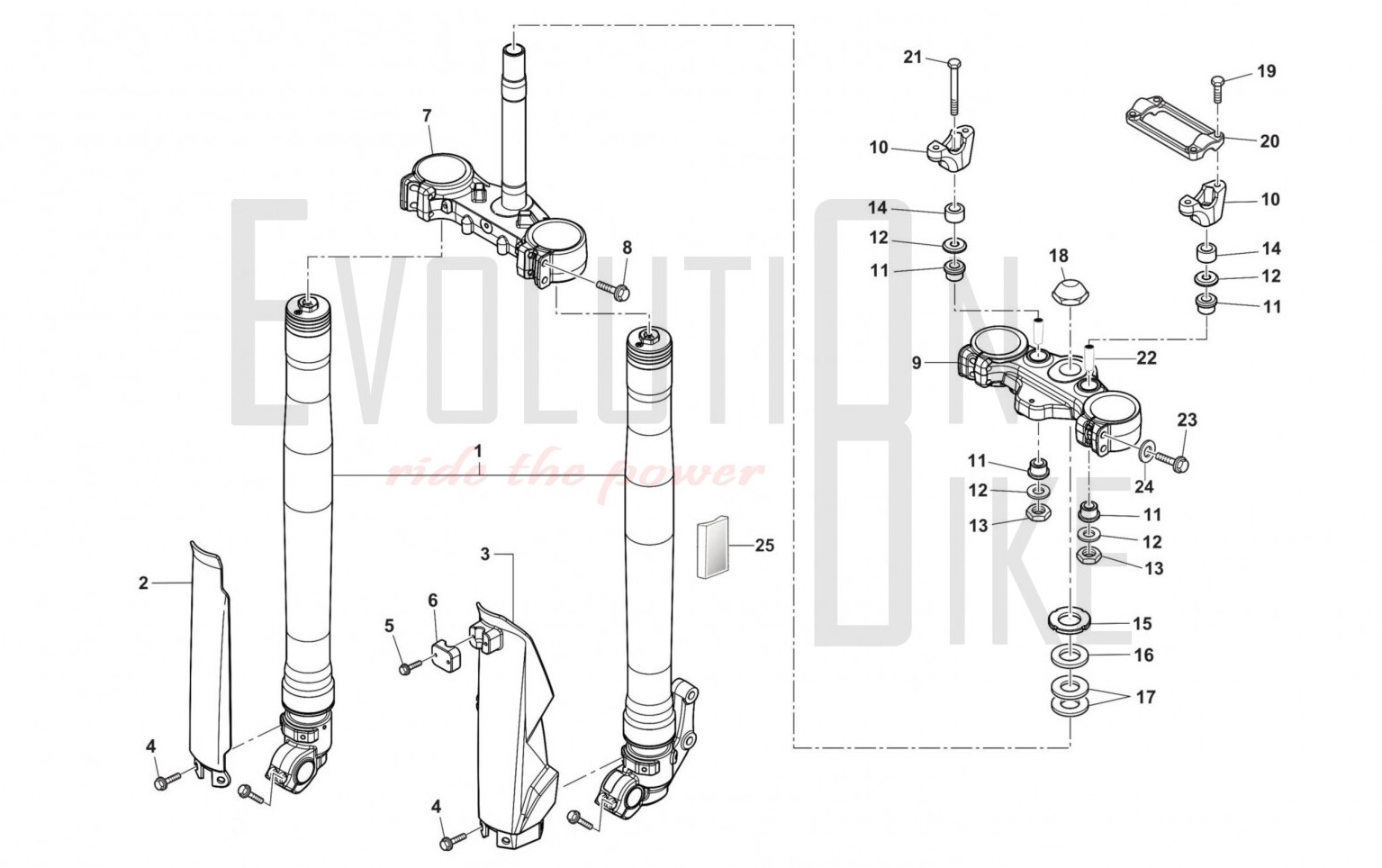

F09 - FRONT FORK ASSEMBLY

F02 - AIR FILTER F02 - AIR FILTER F04 - FUEL TANK F04 - FUEL TANK F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F06 - FRAME/FOOT RESTS F06 - FRAME/FOOT RESTS F07 - FRAME/PROTECTIONS F07 - FRAME/PROTECTIONS F08 - HANDLEBAR AND CONTROLS F08 - HANDLEBAR AND CONTROLS F09 - FRONT FORK ASSEMBLY F09 - FRONT FORK ASSEMBLY F10 - REAR SWING ARM F10 - REAR SWING ARM F11 - REAR SUSPENSION LINKAGE F11 - REAR SUSPENSION LINKAGE F12 - REAR SUSPENSION F12 - REAR SUSPENSION F13 - FRONT WHEEL F13 - FRONT WHEEL F14 - REAR WHEEL F14 - REAR WHEEL F15 - FRONT HYDRAULIC BRAKE F15 - FRONT HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F17 - ABS SYSTEM F17 - ABS SYSTEM F18 - EXHAUST SYSTEM F18 - EXHAUST SYSTEM F21 - TRANSFER F21 - TRANSFER F22 - ACCESSORIES F22 - ACCESSORIES
F09 - FRONT FORK ASSEMBLY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F000A01947 FRONT LEGS ASSY Available on backorder
€900,00
1
2 F0A0P01013 RIGHT SHOCK ABSORBER GUARD Available on backorder
€11,56
1
3 F0A0P01012 LEFT SHOCK ABSORBER GUARD Available on backorder
€11,50
1
4 8000A8423 VITE TE CON COLLETTO M6X1-CH8-L8 Available on backorder
€1,50
1
5 ZA0084658 SELF TAPPING SCREW-M5XL20 Available on backorder
€0,20
1
6 80F0A0633 OIL PIPE FIXING PLATE Available on backorder
€12,00
1
7 F000A01670 STEM, STEERING Available on backorder
€218,09
1
8 ZA0062733 VITE TE M8X1,25-CH12-L40 Available on backorder
€0,83
1
9 F000P02162 HEAD, STEERING STEM Available on backorder
€163,84
1
10 8000H2355 HOLDER, HANDLE LOWER Available on backorder
€31,37
1
11 800060233 DAMPER Available on backorder
€0,90
1
12 800060234 WASHER 28X22X10.5X2.5 MM Available on backorder
€0,60
1
13 C800061314 SELF-LOCKING NUT-M10X1.5 CH14 Available on backorder
€1,50
1
14 8A00A6683 SPACER 32X10X13,5 MM Available on backorder
€13,10
1
15 8A0087717 NUT Available on backorder
€11,99
1
16 800087736 WASHER Available on backorder
€2,50
1
17 800087745 WASHER Available on backorder
€4,20
1
18 F000P01004 NUT M26 Available on backorder
€13,22
1
19 10000363 BOLT M8X1.25-L30 Available on backorder
€0,54
1
20 8000B0522 HANDLEBAR BRACKET, UPPER Available on backorder
€28,90
1
21 60ND01222 SCREW TE M10X1,5X8 Available on backorder
€1,20
1
22 8000H3016 SPACER - D12-D10.1-L34 Available on backorder
€0,65
1
23 ZA0069056 SCREW TEF M8X45 Available on backorder
€0,90
1
24 72040236 WASHER 8 Out of Stock
€0,00
25 800074842 REFLEX REFLECTOR, SIDE Available on backorder
€2,92
1
