F11 - REAR SUSPENSION LINKAGE

F02 - AIR FILTER F02 - AIR FILTER F04 - FUEL TANK F04 - FUEL TANK F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F06 - FRAME/FOOT RESTS F06 - FRAME/FOOT RESTS F07 - FRAME/PROTECTIONS F07 - FRAME/PROTECTIONS F08 - HANDLEBAR AND CONTROLS F08 - HANDLEBAR AND CONTROLS F09 - FRONT FORK ASSEMBLY F09 - FRONT FORK ASSEMBLY F10 - REAR SWING ARM F10 - REAR SWING ARM F11 - REAR SUSPENSION LINKAGE F11 - REAR SUSPENSION LINKAGE F12 - REAR SUSPENSION F12 - REAR SUSPENSION F13 - FRONT WHEEL F13 - FRONT WHEEL F14 - REAR WHEEL F14 - REAR WHEEL F15 - FRONT HYDRAULIC BRAKE F15 - FRONT HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F17 - ABS SYSTEM F17 - ABS SYSTEM F18 - EXHAUST SYSTEM F18 - EXHAUST SYSTEM F21 - TRANSFER F21 - TRANSFER F22 - ACCESSORIES F22 - ACCESSORIES

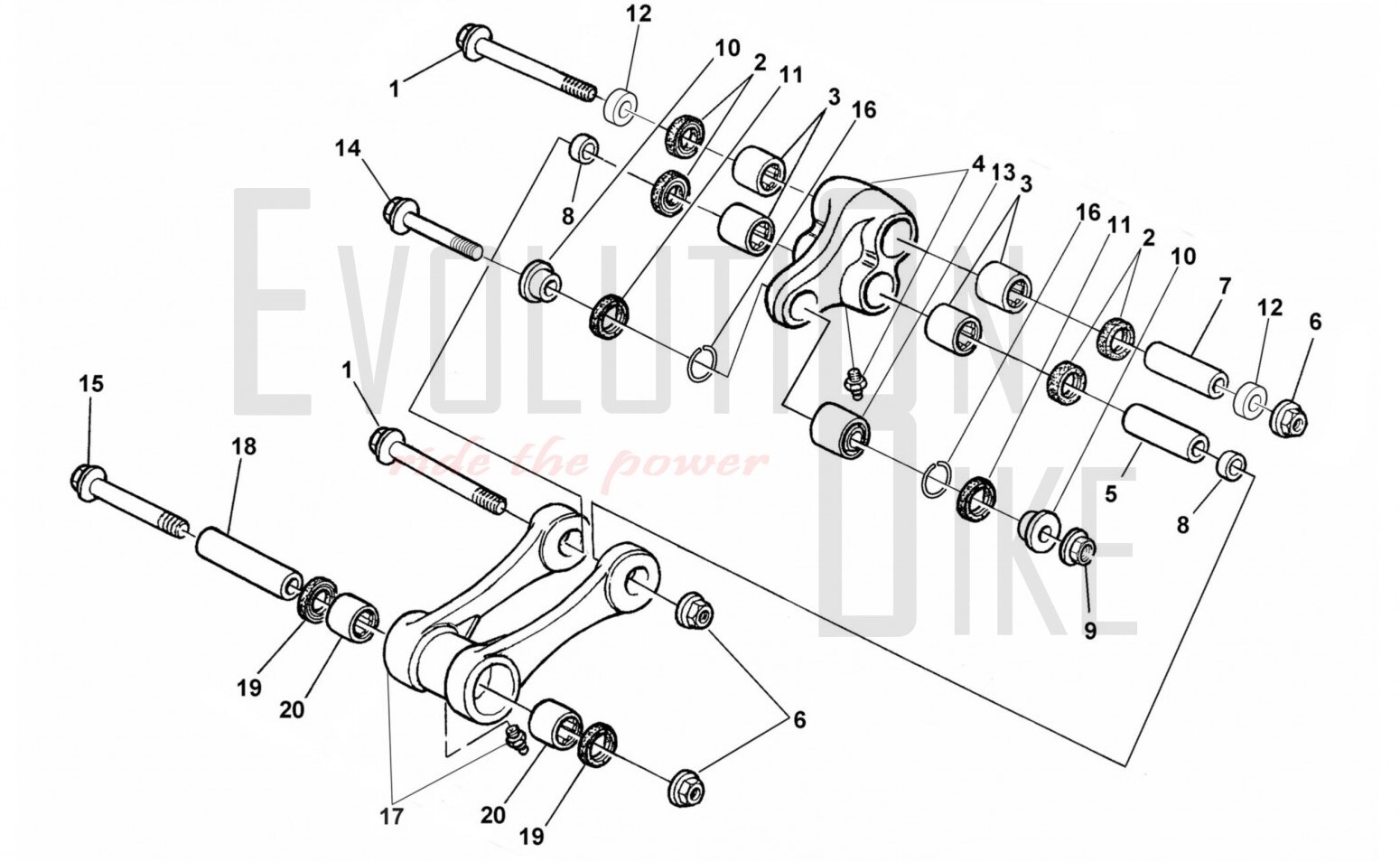

F11 - REAR SUSPENSION LINKAGE
Ref. SKU Description Notes Availability
Price (tax excl.)
1 800093124 AXLE M12X1.25X103 MM Available on backorder
€7,00
1
2 800086137 SEAL, OIL 34X26X4 Available on backorder
€4,50
1
3 800086136 BEARING, NEEDLE HK2216 Available on backorder
€9,00
1
4 800097051 SWINGARM, CUSHION RELAY Available on backorder
€79,72
1
5 800086176 WRIST PIN 22X15X50.4 Available on backorder
€13,50
1
6 10000336 NUT-M12 Available on backorder
€1,55
1
7 8D0086176 PIN Available on backorder
€12,50
1
8 8000H3015 BUSH 26X15X5 Available on backorder
€2,50
1
9 10000335 SELF-LOCKING NUT M10XSP10 Available on backorder
€2,05
1
10 151133302 BUSH Available on backorder
€2,80
1
11 800038767 GROMMET 26X15X3 Available on backorder
€3,50
1
12 8A0086177 SPACER Available on backorder
€4,15
1
13 800072168 BALL JOINT 12X26X16 Available on backorder
€13,90
1
14 10000367 BOLT-M10XL47 Available on backorder
€1,27
1
15 8B0093124 SCREW M12X1.25X131 Available on backorder
€8,00
1
16 800090561 CIRCLIP RB26 DIN 7993 Available on backorder
€0,40
1
17 8A0097053 ARM RELAY, REAR CUSHION LEVER Available on backorder
€71,14
1
18 800097050 PIN Available on backorder
€15,00
1
19 800038521 SEAL RING Available on backorder
€5,50
1
20 8000A4427 BEARING, NEEDLE 28X 22X20 Available on backorder
€5,50
1
