HomeSWMOEM PartsSUPERDUAL T 650 EURO 5 MY24FrameF07 - FRAME/PROTECTIONS

F07 - FRAME/PROTECTIONS

F02 - AIR FILTER F02 - AIR FILTER F04 - FUEL TANK F04 - FUEL TANK F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F06 - FRAME/FOOT RESTS F06 - FRAME/FOOT RESTS F07 - FRAME/PROTECTIONS F07 - FRAME/PROTECTIONS F08 - HANDLEBAR AND CONTROLS F08 - HANDLEBAR AND CONTROLS F09 - FRONT FORK ASSEMBLY F09 - FRONT FORK ASSEMBLY F10 - REAR SWING ARM F10 - REAR SWING ARM F11 - REAR SUSPENSION LINKAGE F11 - REAR SUSPENSION LINKAGE F12 - REAR SUSPENSION F12 - REAR SUSPENSION F13 - FRONT WHEEL F13 - FRONT WHEEL F14 - REAR WHEEL F14 - REAR WHEEL F15 - FRONT HYDRAULIC BRAKE F15 - FRONT HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F17 - ABS SYSTEM F17 - ABS SYSTEM F18 - EXHAUST SYSTEM F18 - EXHAUST SYSTEM F21 - TRANSFER F21 - TRANSFER F22 - ACCESSORIES F22 - ACCESSORIES

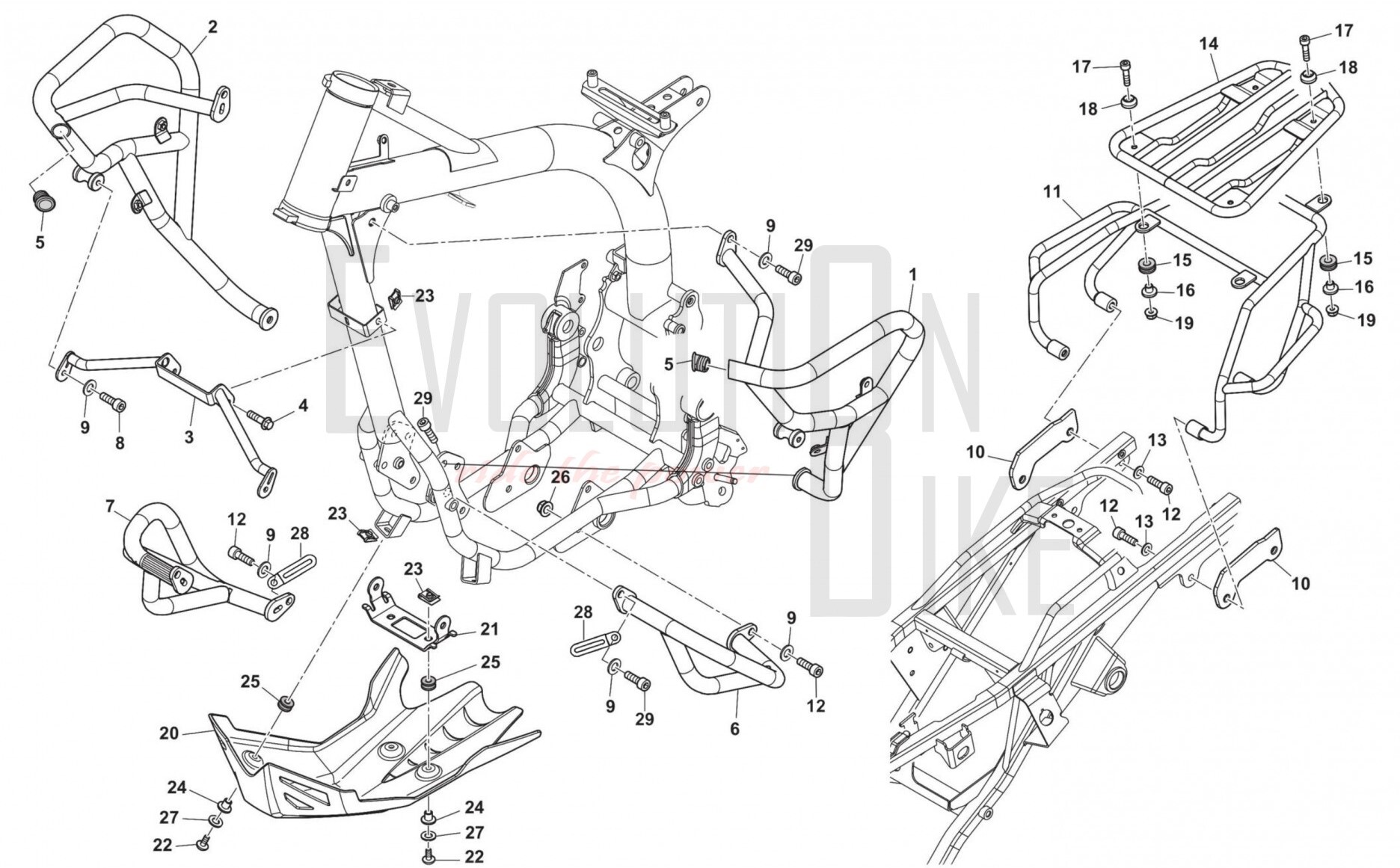

F07 - FRAME/PROTECTIONS
Ref. SKU Description Notes Availability
Price (tax excl.)
1 F000P00934 COVER, FRAME LH Available on backorder
€38,00
1
2 F000P00935 COVER, FRAME RH Available on backorder
€38,00
1
3 F000P01136 HOLDER Available on backorder
€22,00
1
4 10000350 BOLT-M6XL25 Available on backorder
€0,25
1
5 F000P01362 PLUG Available on backorder
€0,30
1
6 F000P00940 GUARD ENGINE LH Available on backorder
€28,00
1
7 F000P00941 GUARD ENGINE RH Available on backorder
€28,00
1
8 10000347 BOLT-M6XL14 Available on backorder
€0,22
1
9 62ND15506 WASHER Available on backorder
€0,20
1
10 F000P01586 PLATE Available on backorder
€7,57
1
11 F000P01587 HANDLE, PILLION RIDER Available on backorder
€77,17
1
12 10000598 SCREW-M8X1.25 L25 DIN912 Available on backorder
€0,50
1
13 Z00056377 WASHER 16X8.3X1 Available on backorder
€1,00
1
14 F000P00938 CARRIER Available on backorder
€62,61
1
15 73012537 GOMMINO ANTIVIBRANTE * VEDI 800041862 Available on backorder
€0,50
1
16 C8000B2799 BOCCOLA FLANGIATA-?6.2* * VEDI 8000B2799 Available on backorder
€3,00
1
17 10000599 BOLT-M6X1 L25 DIN912 Available on backorder
€0,50
1
18 F000P00768 WASHER, CONICAL SPRING Available on backorder
€3,50
1
19 10000340 SELF-LOCKING NUT-M6-SP7 Available on backorder
€0,40
1
20 F000P02544 GUARD, ENGINE Available on backorder
€161,61
1
21 F000P01529 BRACKET, ENGINE GUARD Available on backorder
€10,24
1
22 Z00061070 SCREW-M6X1 L25 Out of Stock
€0,00
23 U00046893 NUT CLAMP M6X1 Available on backorder
€1,00
1
24 8B00B2799 SPACER Available on backorder
€2,00
1
25 8000H3250 GROMMET Available on backorder
€0,50
1
26 10000339 NUT-M8 Available on backorder
€1,65
1
27 10000341 WASHER-D18-D6.4-H2 Available on backorder
€0,38
1
28 10000167 FASCETTA METALLICA RIVESTITA Available on backorder
€1,00
1
29 10000317 BOLT M8X1.25XL20 Available on backorder
€0,38
1
