F10 - REAR SWING ARM

F02 - AIR FILTER F02 - AIR FILTER F04 - FUEL TANK F04 - FUEL TANK F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F06 - FRAME/FOOT RESTS F06 - FRAME/FOOT RESTS F07 - FRAME/PROTECTIONS F07 - FRAME/PROTECTIONS F08 - HANDLEBAR AND CONTROLS F08 - HANDLEBAR AND CONTROLS F09 - FRONT FORK ASSEMBLY F09 - FRONT FORK ASSEMBLY F10 - REAR SWING ARM F10 - REAR SWING ARM F11 - REAR SUSPENSION LINKAGE F11 - REAR SUSPENSION LINKAGE F12 - REAR SUSPENSION F12 - REAR SUSPENSION F13 - FRONT WHEEL F13 - FRONT WHEEL F14 - REAR WHEEL F14 - REAR WHEEL F15 - FRONT HYDRAULIC BRAKE F15 - FRONT HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F17 - ABS SYSTEM F17 - ABS SYSTEM F18 - EXHAUST SYSTEM F18 - EXHAUST SYSTEM F21 - TRANSFER F21 - TRANSFER F22 - ACCESSORIES F22 - ACCESSORIES

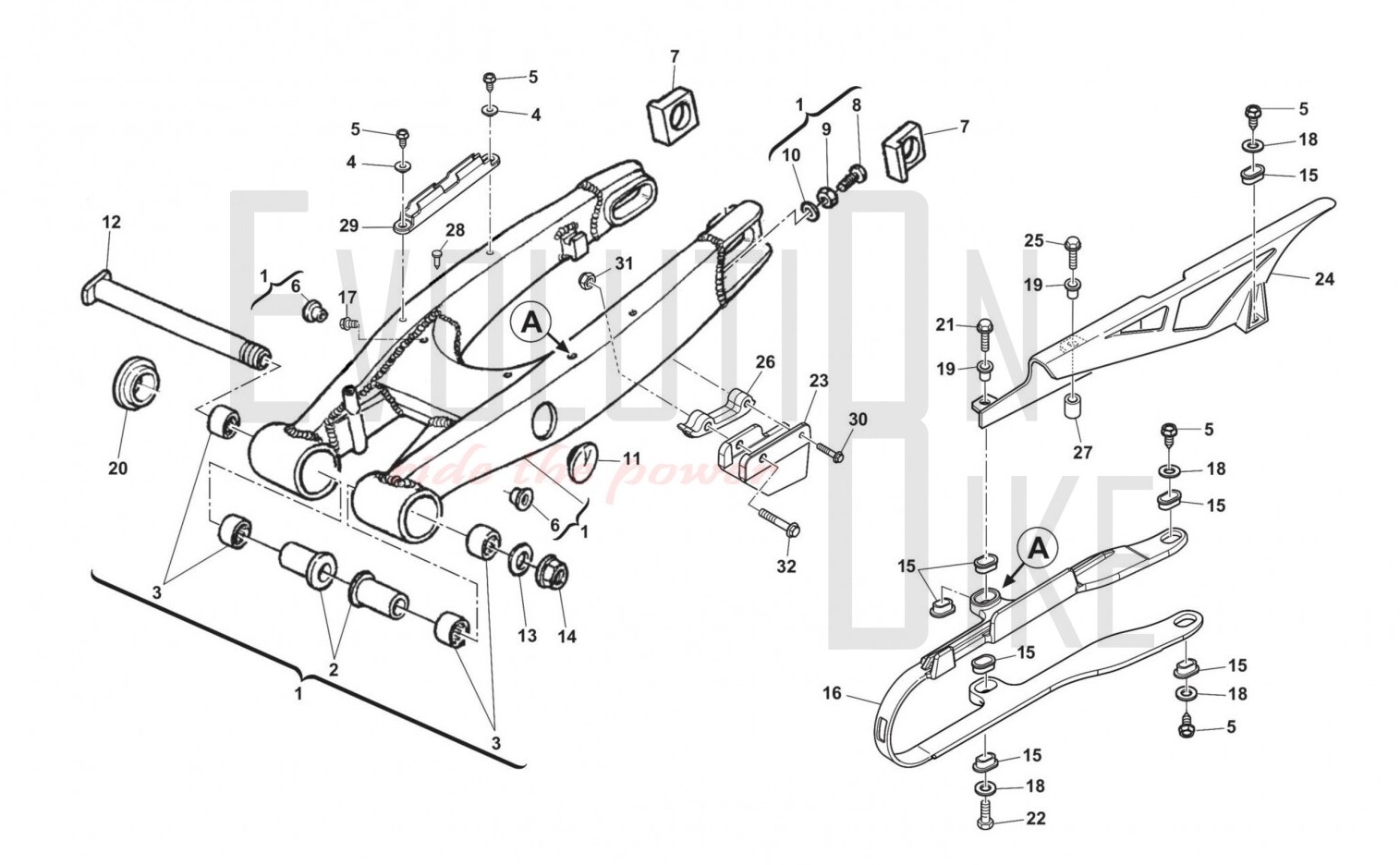

F10 - REAR SWING ARM
Ref. SKU Description Notes Availability
Price (tax excl.)
1 8000H3735 REAR SWING ARM ASSY Available on backorder
€832,95
1
2 800083904 BUSH 27.5X17X45 Available on backorder
€8,50
1
3 800076283 BEARING, NEEDLE 22X28X11 Available on backorder
€7,50
1
4 10000372 FLANGED BUSH-5.25X7X14XH4.8 Available on backorder
€3,73
1
5 10000326 SCREW-D4.8XL13 Available on backorder
€0,22
1
6 8A0087810 BUSH, LEFT 13MM Available on backorder
€4,00
1
7 800096944 CHAIN BAR ADJUSTER Available on backorder
€8,32
1
8 10000365 BOLT-M8XL50 Available on backorder
€0,73
1
9 10000325 NUT M8 Available on backorder
€0,28
1
10 10000324 WASHER-D13-D8.4-H2 Available on backorder
€0,25
1
11 80B074388 PLUG Available on backorder
€3,40
1
12 F000P00173 AXLE REAR SWING ARM Available on backorder
€49,02
1
13 10000329 WASHER-D26-D17.2-H1.5 Available on backorder
€0,44
1
14 72020489 NUT M16 Available on backorder
€0,73
1
15 8000H3033 OVAL-SHAPED WASHER Available on backorder
€2,00
1
16 8B00H1320 PROTECT CLIP-CHAIN Out of Stock
€23,00
17 72012627 BOLT-M5X0.8-L8-CH8 Available on backorder
€0,50
1
18 10000330 WASHER-D11-D5.5-H1.5 Available on backorder
€0,25
1
19 10000383 BUSH-5X7X14XH7.8 Available on backorder
€3,98
1
20 800087027 CAP, PIVOT COVER Available on backorder
€1,80
1
21 10000361 BOLT M5X0.8-L16-CH8 Available on backorder
€0,21
1
22 10000355 BOLT-M5XL12 Available on backorder
€0,20
1
23 F000P00595 CHAIN OUTER GUIDE PLATE Available on backorder
€12,50
1
24 8A00A5311 GUARD, CHAIN Available on backorder
€15,90
1
25 10000600 BOLT-M5X0.8-L35-DIN933 Available on backorder
€0,50
1
26 F000P00594 GUIDE, CHAIN INNER Available on backorder
€9,00
1
27 800097025 BUSH Available on backorder
€4,53
1
28 8000A1074 RUBBER PIN Available on backorder
€0,60
1
29 8000B1166 TUBE GUIDE LEDGE Available on backorder
€5,00
1
30 10000350 BOLT-M6XL25 Available on backorder
€0,25
1
31 10000339 NUT-M8 Available on backorder
€1,65
1
32 10000353 BOLT-M8XL50 Available on backorder
€0,62
1
