HomeSWMOEM PartsSUPERDUAL T 650 EURO 5 MY24FrameF04 - FUEL TANK

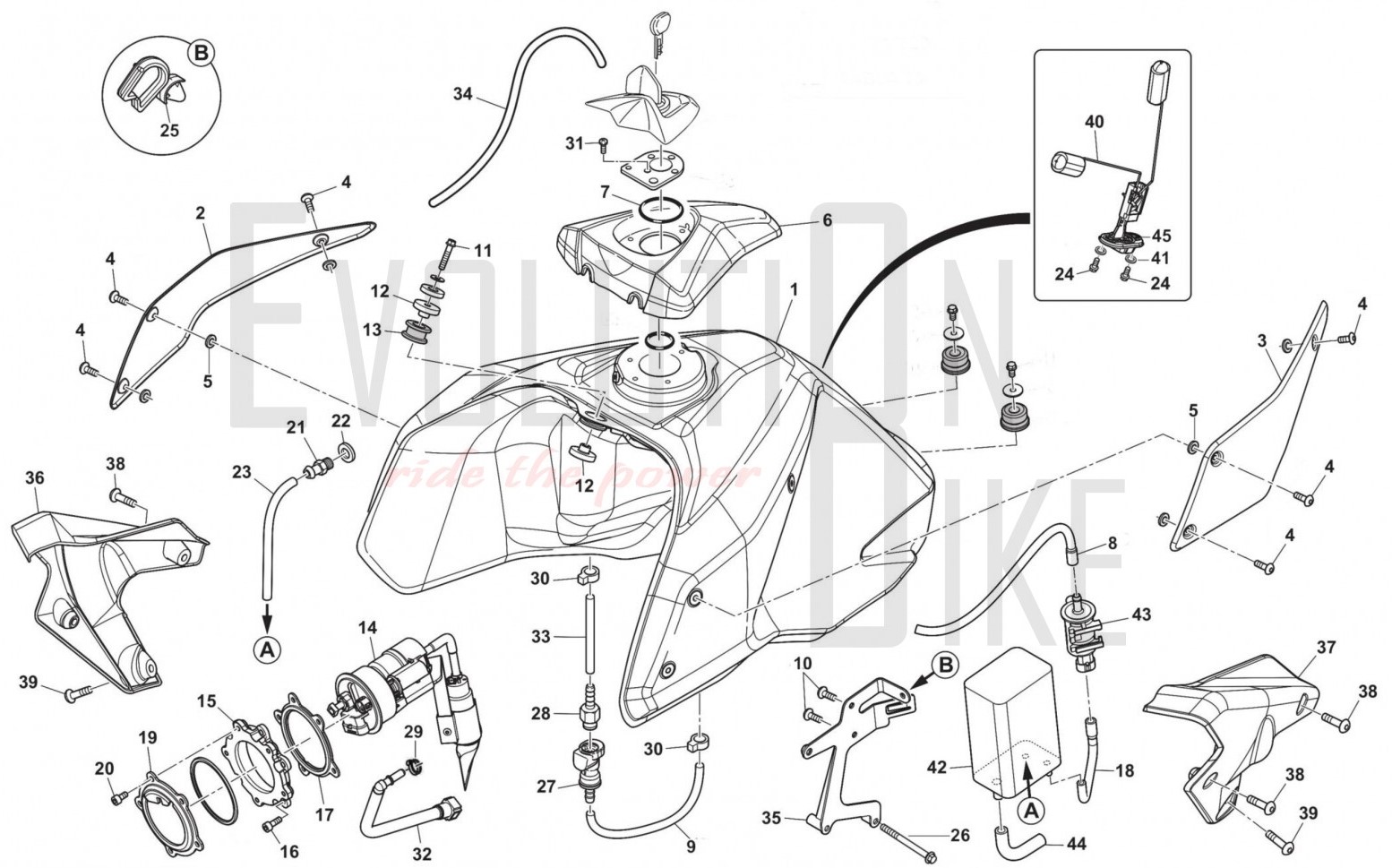

F04 - FUEL TANK

F02 - AIR FILTER F02 - AIR FILTER F04 - FUEL TANK F04 - FUEL TANK F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F05 - LEFT & RIGHT SIDE COVER/MUDGUARD F06 - FRAME/FOOT RESTS F06 - FRAME/FOOT RESTS F07 - FRAME/PROTECTIONS F07 - FRAME/PROTECTIONS F08 - HANDLEBAR AND CONTROLS F08 - HANDLEBAR AND CONTROLS F09 - FRONT FORK ASSEMBLY F09 - FRONT FORK ASSEMBLY F10 - REAR SWING ARM F10 - REAR SWING ARM F11 - REAR SUSPENSION LINKAGE F11 - REAR SUSPENSION LINKAGE F12 - REAR SUSPENSION F12 - REAR SUSPENSION F13 - FRONT WHEEL F13 - FRONT WHEEL F14 - REAR WHEEL F14 - REAR WHEEL F15 - FRONT HYDRAULIC BRAKE F15 - FRONT HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F16 - REAR HYDRAULIC BRAKE F17 - ABS SYSTEM F17 - ABS SYSTEM F18 - EXHAUST SYSTEM F18 - EXHAUST SYSTEM F21 - TRANSFER F21 - TRANSFER F22 - ACCESSORIES F22 - ACCESSORIES
F04 - FUEL TANK
Ref. SKU Description Notes Availability
Price (tax excl.)
1 10000865 FUEL TANK Available on backorder
€340,00
1
2 F0B0P01020 SWM LOGO R.H. PLATE Available on backorder
€47,50
1
3 F0B0P01021 SWM LOGO L.H PLATE Available on backorder
€47,50
1
4 ZA0059572 SCREW TBEI M5X0,8X12 Available on backorder
€3,00
1
5 800035112 INSULATING WASHER Available on backorder
€0,90
1
6 F000P01154 COVER, FUEL TANK Available on backorder
€30,00
1
7 F000P01576 O-RING Available on backorder
€9,05
1
8 F000P01944 PIPE Available on backorder
€3,00
1
9 10000644 PIPE L=210 Available on backorder
€5,50
1
10 C800055699 BOLT-M6X1 CH5 L10 Available on backorder
€0,50
1
11 8A00B1959 BOLT M8XL30 Available on backorder
€0,80
1
12 F000P02163 BUSH Available on backorder
€2,80
1
13 800089302 H-SHAPED RUBBER FOR MUFFLER In Stock
€4,50
1
14 10000570 FUEL PUMP Out of Stock
€0,00
15 F000P01230 BRACKET, FUEL PUMP Available on backorder
€16,23
1
16 10000320 BOLT M6XL16 Available on backorder
€0,24
1
17 F000P02488 GASKET Available on backorder
€4,00
1
18 F000P01943 PIPE Available on backorder
€3,00
1
19 F000P01377 FLANGE Available on backorder
€5,10
1
20 10000315 BOLT M6XL12 Available on backorder
€0,22
1
21 8000A4031 THREADED NIPPLE Available on backorder
€5,60
1
22 62N015673 WASHER, ALUMINIUM 11X6.1X1 Out of Stock
€0,20
23 10000642 PIPE L= 0.96M Available on backorder
€16,00
1
24 10000348 BOLT-M6XL16 Available on backorder
€0,24
1
25 F000P02200 CLIP Available on backorder
€0,70
1
26 ZF0067545 SCREW TE M6X1X80 In Stock
€3,00
1
27 10000687 UNION Out of Stock
€0,00
28 10000686 UNION Out of Stock
€0,00
29 10000698 CLAMP-15.7 Out of Stock
€1,00
30 10000539 STAINLESS STEEL HOOP Out of Stock
€0,00
31 Z00065535 SCREW TCEI M5X0.8X14 Available on backorder
€0,10
1
32 F000P01575 HOSE, FUEL DELIVERY Available on backorder
€20,76
1
33 10000643 PIPE L=140 Available on backorder
€3,50
1
34 F000P02472 PIPE 1380 MM Available on backorder
€16,00
1
35 F000P01945 HOLDER Available on backorder
€8,50
1
36 F000P01420 RADIATOR SCOOP RH Available on backorder
€45,00
1
37 FA00P01420 RADIATOR SCOOP LH Available on backorder
€45,00
1
38 60ND02508 SCREW TCEI M6X18 Available on backorder
€0,30
1
39 10000316 VITE TCEI M6X1-CH5-L20 * VEDI 60ND02509 Available on backorder
€0,25
1
40 FA00A01948 SENSORE LIVELLO BENZINA Available on backorder
€16,21
1
41 10000341 WASHER-D18-D6.4-H2 Available on backorder
€0,38
1
42 E000P04447 CANISTER ASSY Available on backorder
€27,64
1
43 31350090 SOLENOID VALVE Available on backorder
€54,08
1
44 F000P02151 PIPE CANISTER-SOLENOID VALVE Available on backorder
€5,00
1
45 10000898 FUEL SENSOR SEALING RUBBER Available on backorder
€4,00
1
