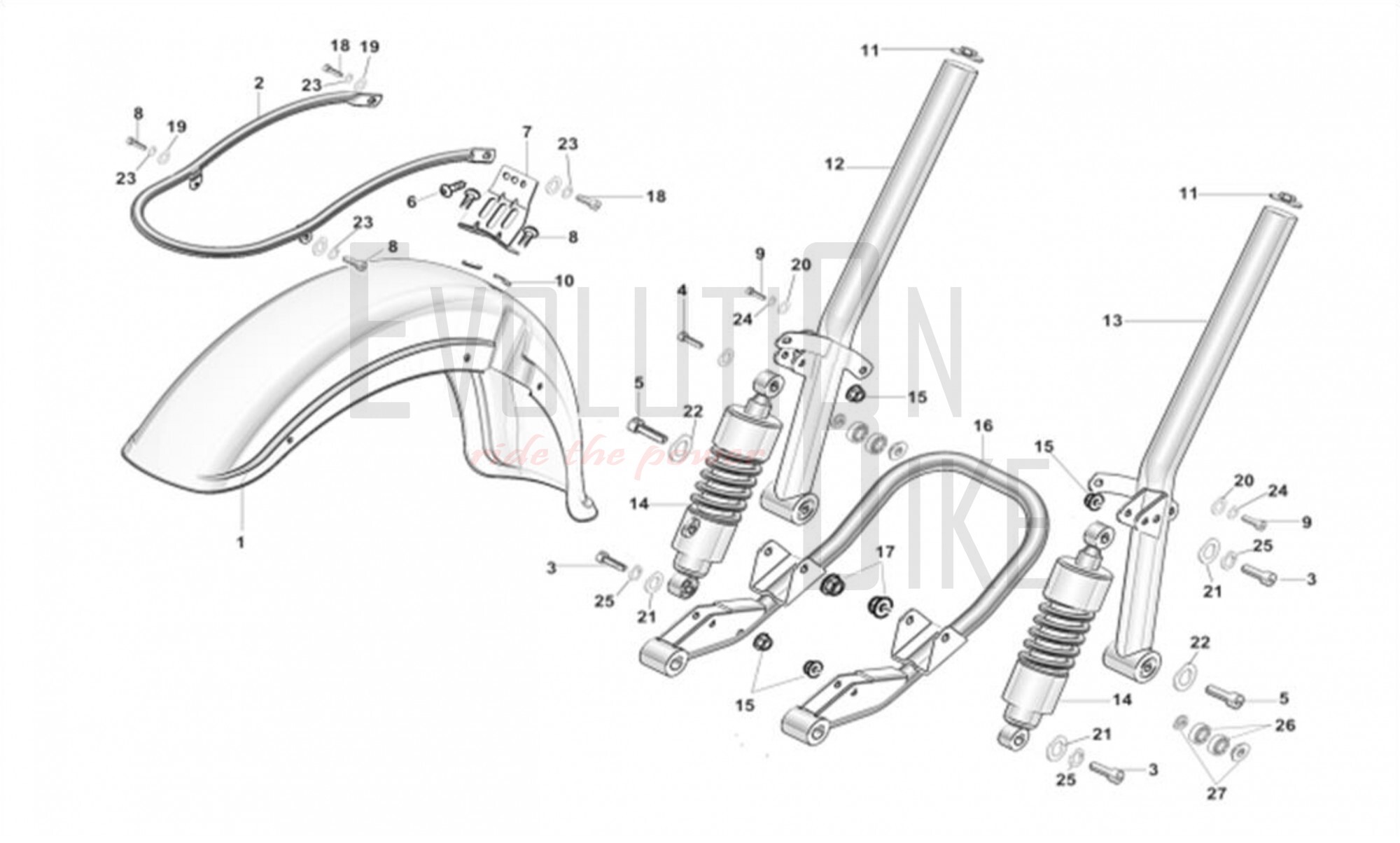

F08 - FRONT FORK ASSEMBLY

F02 - AIR CLEANER ASSY F02 - AIR CLEANER ASSY F03 - FUEL TANK FUEL PUMP COMBINATION F03 - FUEL TANK FUEL PUMP COMBINATION F04 - FRAME ASSEMBLY I F04 - FRAME ASSEMBLY I F05 - HANDLEBAR AND CONTROLS F05 - HANDLEBAR AND CONTROLS F06 - FRAME ASSEMBLY II F06 - FRAME ASSEMBLY II F08 - FRONT FORK ASSEMBLY F08 - FRONT FORK ASSEMBLY F09 - REAR FENDER ASSY F09 - REAR FENDER ASSY F10 - FOOTPEGS AND REARSETS F10 - FOOTPEGS AND REARSETS F11 - SEAT ASSY F11 - SEAT ASSY F12 - FORK ASSY F12 - FORK ASSY F13 - WHEELS F13 - WHEELS F14 - EXHAUST SYSTEM F14 - EXHAUST SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F16 - RADIATOR ASSY F16 - RADIATOR ASSY F17 - SIDE CAR FENDER F17 - SIDE CAR FENDER F18 - BASKET ABSORBER F18 - BASKET ABSORBER F19 - SIDE CAR FRAME F19 - SIDE CAR FRAME F20 - BASKET ASSY F20 - BASKET ASSY F21 - LOWER BODY/BASKET SEAT F21 - LOWER BODY/BASKET SEAT F22 - GOOD SHELVES F22 - GOOD SHELVES F23 - BULLET BOX F23 - BULLET BOX F25A - DECAL (SILVER GREY) F25A - DECAL (SILVER GREY) F25B - DECAL (WHITE) F25B - DECAL (WHITE)
F08 - FRONT FORK ASSEMBLY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 53013637 FRONT FENDER WHITE Out of Stock
€0,00
1 53013636 FRONT FENDER SILVER GREY Out of Stock
€0,00
2 73033049 BRACKET I-FRONT FENDER Out of Stock
€0,00
3 72031050 SCREW M10X1.25X45 Out of Stock
€0,00
4 72031051 SCREW-M10X1.25X60 Out of Stock
€0,00
5 72031052 SCREW-M12X1.25X75 Out of Stock
€0,00
6 72031030 SCREW M6X12 Out of Stock
€0,00
7 73033023 BRACKET II-FRONT FENDER Out of Stock
€0,00
8 72031031 BOLT M6×16 Out of Stock
€0,00
9 72031038 BOLT-M8×20 Out of Stock
€0,00
10 73012426 RUBBER FLAT PAD (6X16) Out of Stock
€0,00
11 41250101 COVER,FRONT FORK Out of Stock
€0,00
12 41250146 R.FRONT FORK Out of Stock
€0,00
13 41250145 L.FRONT FORK Out of Stock
€0,00
14 41050952 FRONT SIDE FORK Out of Stock
€0,00
15 72020651 NUT M10×1.25 Out of Stock
€0,00
16 41250136 CRADLE FRONT FORK Out of Stock
€0,00
17 72020652 NUT M12×1.25 Out of Stock
€0,00
18 72031039 SCREW-M8×25 Out of Stock
€0,00
19 72040836 WASHER-6MM Out of Stock
€0,00
20 72040837 WASHER 8MM Out of Stock
€0,00
21 72040838 WASHER-D10 Out of Stock
€0,00
22 72040839 WASHER D12 Out of Stock
€0,00
23 72040843 SPRING WASHER D6 Out of Stock
€0,00
24 72040844 SPRING WASHER D8 Out of Stock
€0,00
25 2040845 SPRING WASHER D10 Out of Stock
€0,00
26 70090297 DEEP GROOVE BALL BEARING 6301 Out of Stock
€0,00
27 70120470 FRONT FORK TUBE BUSHING Out of Stock
€0,00
