F15 - HYDRAULIC BRAKE ABS SYSTEM

F02 - AIR CLEANER ASSY F02 - AIR CLEANER ASSY F03 - FUEL TANK FUEL PUMP COMBINATION F03 - FUEL TANK FUEL PUMP COMBINATION F04 - FRAME ASSEMBLY I F04 - FRAME ASSEMBLY I F05 - HANDLEBAR AND CONTROLS F05 - HANDLEBAR AND CONTROLS F06 - FRAME ASSEMBLY II F06 - FRAME ASSEMBLY II F08 - FRONT FORK ASSEMBLY F08 - FRONT FORK ASSEMBLY F09 - REAR FENDER ASSY F09 - REAR FENDER ASSY F10 - FOOTPEGS AND REARSETS F10 - FOOTPEGS AND REARSETS F11 - SEAT ASSY F11 - SEAT ASSY F12 - FORK ASSY F12 - FORK ASSY F13 - WHEELS F13 - WHEELS F14 - EXHAUST SYSTEM F14 - EXHAUST SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F16 - RADIATOR ASSY F16 - RADIATOR ASSY F17 - SIDE CAR FENDER F17 - SIDE CAR FENDER F18 - BASKET ABSORBER F18 - BASKET ABSORBER F19 - SIDE CAR FRAME F19 - SIDE CAR FRAME F20 - BASKET ASSY F20 - BASKET ASSY F21 - LOWER BODY/BASKET SEAT F21 - LOWER BODY/BASKET SEAT F22 - GOOD SHELVES F22 - GOOD SHELVES F23 - BULLET BOX F23 - BULLET BOX F25A - DECAL (SILVER GREY) F25A - DECAL (SILVER GREY) F25B - DECAL (WHITE) F25B - DECAL (WHITE)

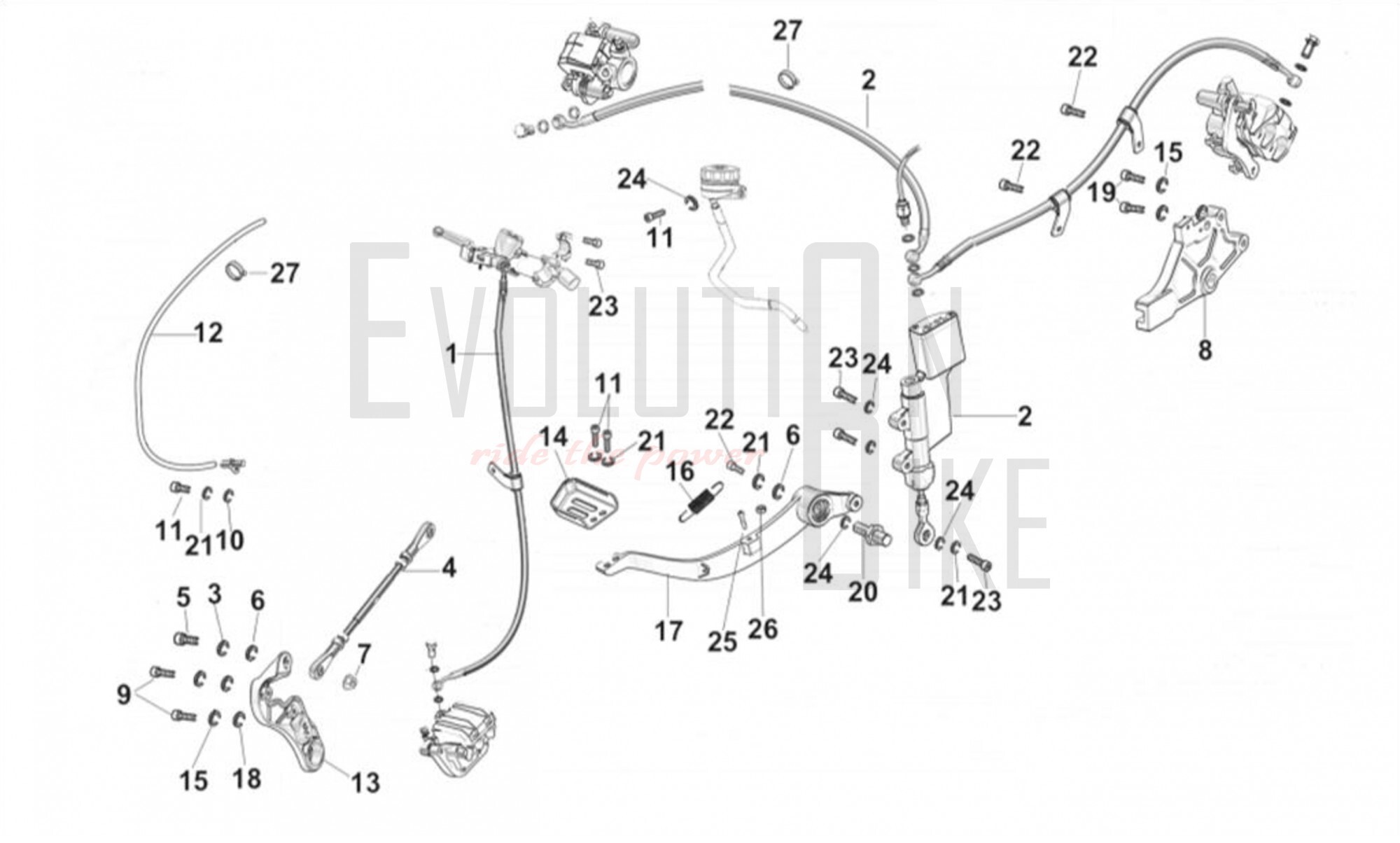

F15 - HYDRAULIC BRAKE ABS SYSTEM
Ref. SKU Description Notes Availability
Price (tax excl.)
1 55020501 FRONT BRAKE ASSY Out of Stock
€0,00
2 55050257 REAR ARRESTER ASSY Out of Stock
€0,00
3 72040845 SPRING WASHER D10 Out of Stock
€0,00
4 55080192 FRONT BRAKE ROD ASSEMBLY Out of Stock
€0,00
5 72031050 SCREW M10X1.25X45 Out of Stock
€0,00
6 72040838 WASHER-D10 Out of Stock
€0,00
7 72020651 NUT M10×1.25 Out of Stock
€0,00
8 55120495 BRACKET,SUB-CYLINDER, REAR BRAKE Out of Stock
€0,00
9 72031040 SCREW M10X1.25X45 Out of Stock
€0,00
10 72040836 WASHER-6MM Out of Stock
€0,00
11 72031031 BOLT M6×16 Out of Stock
€0,00
12 37050072 FRONT SPEED SENSOR Out of Stock
€0,00
13 55120584 BRACKET,SUB-CYLINDER, FRONT BRAKE Out of Stock
€0,00
14 73032895 BRACKET,REAR BRAKE PEDAL Out of Stock
€0,00
15 72040844 SPRING WASHER D8 Out of Stock
€0,00
16 72050622 RETURN SPRING, REAR BRAKE PEDAL Out of Stock
€0,00
17 55070471 REAR BRAKE PEDAL Out of Stock
€0,00
18 72040837 WASHER 8MM Out of Stock
€0,00
19 72031041 SCREW -M8X45 Out of Stock
€0,00
20 73032909 REAR BRAKE PEDAL MOUNTING SEAT Out of Stock
€0,00
21 72040843 SPRING WASHER D6 Out of Stock
€0,00
22 72031030 SCREW M6X12 Out of Stock
€0,00
23 72031033 SCREW M6X25 Out of Stock
€0,00
24 72040841 WASHER D6 Out of Stock
€0,00
25 72012598 BOLT-M5X30 Out of Stock
€0,00
26 72020657 NUT -M5 Out of Stock
€0,00
27 73012544 CLAMP Available on backorder
€1,15
