F10 - FOOTPEGS AND REARSETS

F02 - AIR CLEANER ASSY F02 - AIR CLEANER ASSY F03 - FUEL TANK FUEL PUMP COMBINATION F03 - FUEL TANK FUEL PUMP COMBINATION F04 - FRAME ASSEMBLY I F04 - FRAME ASSEMBLY I F05 - HANDLEBAR AND CONTROLS F05 - HANDLEBAR AND CONTROLS F06 - FRAME ASSEMBLY II F06 - FRAME ASSEMBLY II F08 - FRONT FORK ASSEMBLY F08 - FRONT FORK ASSEMBLY F09 - REAR FENDER ASSY F09 - REAR FENDER ASSY F10 - FOOTPEGS AND REARSETS F10 - FOOTPEGS AND REARSETS F11 - SEAT ASSY F11 - SEAT ASSY F12 - FORK ASSY F12 - FORK ASSY F13 - WHEELS F13 - WHEELS F14 - EXHAUST SYSTEM F14 - EXHAUST SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F16 - RADIATOR ASSY F16 - RADIATOR ASSY F17 - SIDE CAR FENDER F17 - SIDE CAR FENDER F18 - BASKET ABSORBER F18 - BASKET ABSORBER F19 - SIDE CAR FRAME F19 - SIDE CAR FRAME F20 - BASKET ASSY F20 - BASKET ASSY F21 - LOWER BODY/BASKET SEAT F21 - LOWER BODY/BASKET SEAT F22 - GOOD SHELVES F22 - GOOD SHELVES F23 - BULLET BOX F23 - BULLET BOX F25A - DECAL (SILVER GREY) F25A - DECAL (SILVER GREY) F25B - DECAL (WHITE) F25B - DECAL (WHITE)

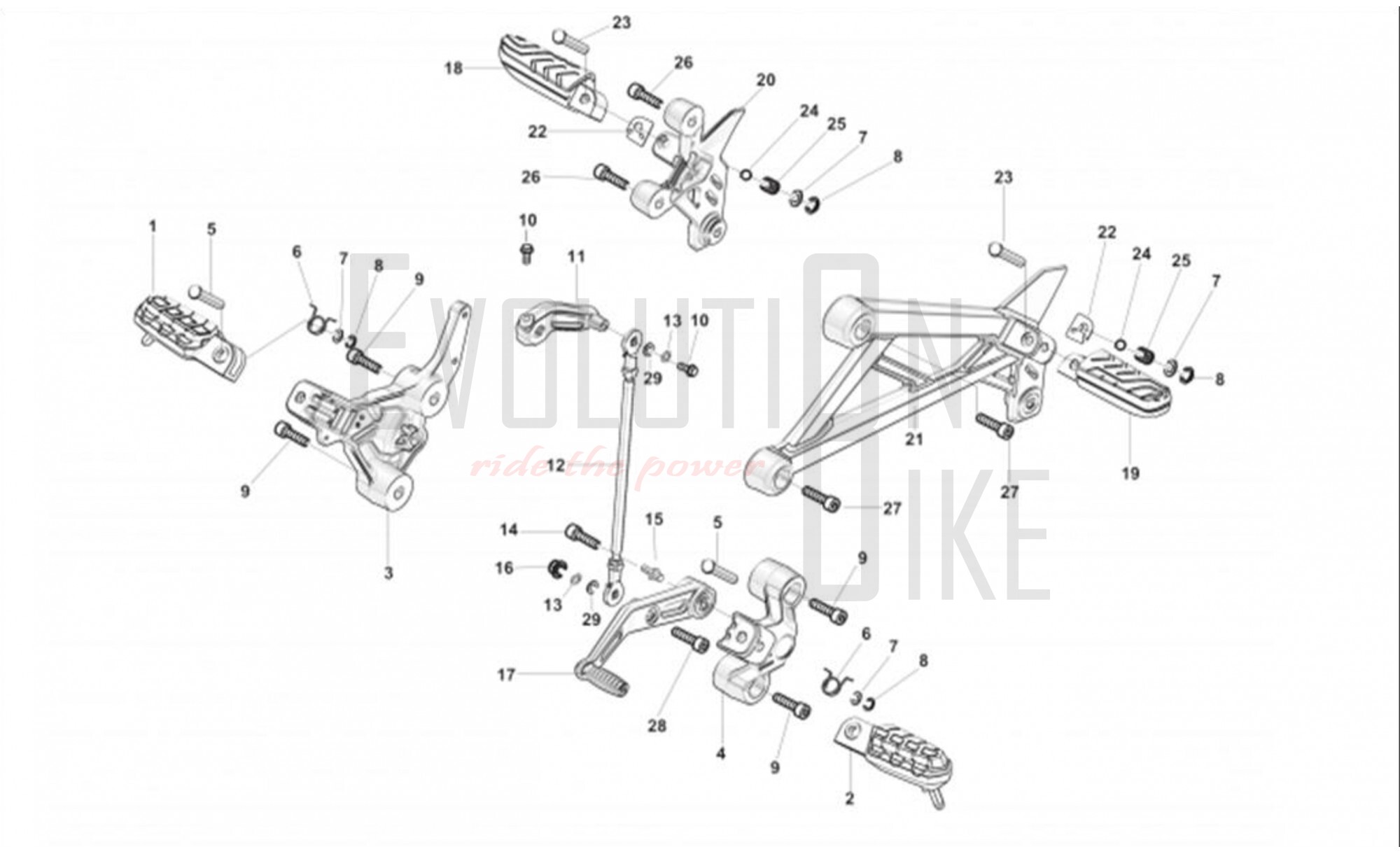

F10 - FOOTPEGS AND REARSETS
Ref. SKU Description Notes Availability
Price (tax excl.)
1 41120324 DRIVER FOOTREST (R.H.) Out of Stock
€0,00
2 41130227 DRIVER FOOTREST (L.H.) Out of Stock
€0,00
3 41170216 RH. FOOTREST SUPPORT PLATE Out of Stock
€0,00
4 41180217 LH. FOOTREST SUPPORT PLATE Out of Stock
€0,00
5 72060201 FOOTREST PIN-D8X43 Available on backorder
€1,00
1
6 72050617 FOOTREST SPRING Available on backorder
€1,00
1
7 72080172 WASHER Available on backorder
€0,50
1
8 73012787 WASHER Available on backorder
€0,50
1
9 72031049 SCREW M10X1.25X40 Out of Stock
€0,00
10 72012597 BOLT- M×25 Available on backorder
€0,50
1
11 73032888 SHIFT PEDAL ON THE BRACKET Out of Stock
€0,00
12 45080441 SHIFT PEDAL ADJUSTMENT ROD ASSEMBLY Out of Stock
€0,00
13 72040843 SPRING WASHER D6 Out of Stock
€0,00
14 72031030 SCREW M6X12 Out of Stock
€0,00
15 73032909 REAR BRAKE PEDAL MOUNTING SEAT Out of Stock
€0,00
16 72020658 NUT M6 Out of Stock
€0,00
17 73032889 SHIFT PEDAL LOWER BRACKET Out of Stock
€0,00
18 41150460 PASSENGER R.H. FOOTREST Out of Stock
€0,00
19 41140474 PASSENGER L.H. FOOTREST Out of Stock
€0,00
20 41150459 RH PASSENGER FOOTREST SUPPORT Out of Stock
€0,00
21 41140473 LH PASSENGER FOOTREST SUPPORT Out of Stock
€0,00
22 73032891 RH PASSENGER FOOTREST PLATE Out of Stock
€0,00
23 72060202 FOOTREST PIN-D8X36 Out of Stock
€0,00
24 41420068 STEEL BALL Out of Stock
€0,00
25 72050618 REST SPRING Out of Stock
€0,00
26 72031047 SCREW M10X25 Out of Stock
€0,00
27 72031048 SCREW- M10X1.25X30 Out of Stock
€0,00
28 72031036 SCREW- M6X40 Out of Stock
€0,00
29 72040841 WASHER D6 Out of Stock
€0,00
