F04 - FRAME ASSEMBLY I

F02 - AIR CLEANER ASSY F02 - AIR CLEANER ASSY F03 - FUEL TANK FUEL PUMP COMBINATION F03 - FUEL TANK FUEL PUMP COMBINATION F04 - FRAME ASSEMBLY I F04 - FRAME ASSEMBLY I F05 - HANDLEBAR AND CONTROLS F05 - HANDLEBAR AND CONTROLS F06 - FRAME ASSEMBLY II F06 - FRAME ASSEMBLY II F08 - FRONT FORK ASSEMBLY F08 - FRONT FORK ASSEMBLY F09 - REAR FENDER ASSY F09 - REAR FENDER ASSY F10 - FOOTPEGS AND REARSETS F10 - FOOTPEGS AND REARSETS F11 - SEAT ASSY F11 - SEAT ASSY F12 - FORK ASSY F12 - FORK ASSY F13 - WHEELS F13 - WHEELS F14 - EXHAUST SYSTEM F14 - EXHAUST SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F16 - RADIATOR ASSY F16 - RADIATOR ASSY F17 - SIDE CAR FENDER F17 - SIDE CAR FENDER F18 - BASKET ABSORBER F18 - BASKET ABSORBER F19 - SIDE CAR FRAME F19 - SIDE CAR FRAME F20 - BASKET ASSY F20 - BASKET ASSY F21 - LOWER BODY/BASKET SEAT F21 - LOWER BODY/BASKET SEAT F22 - GOOD SHELVES F22 - GOOD SHELVES F23 - BULLET BOX F23 - BULLET BOX F25A - DECAL (SILVER GREY) F25A - DECAL (SILVER GREY) F25B - DECAL (WHITE) F25B - DECAL (WHITE)

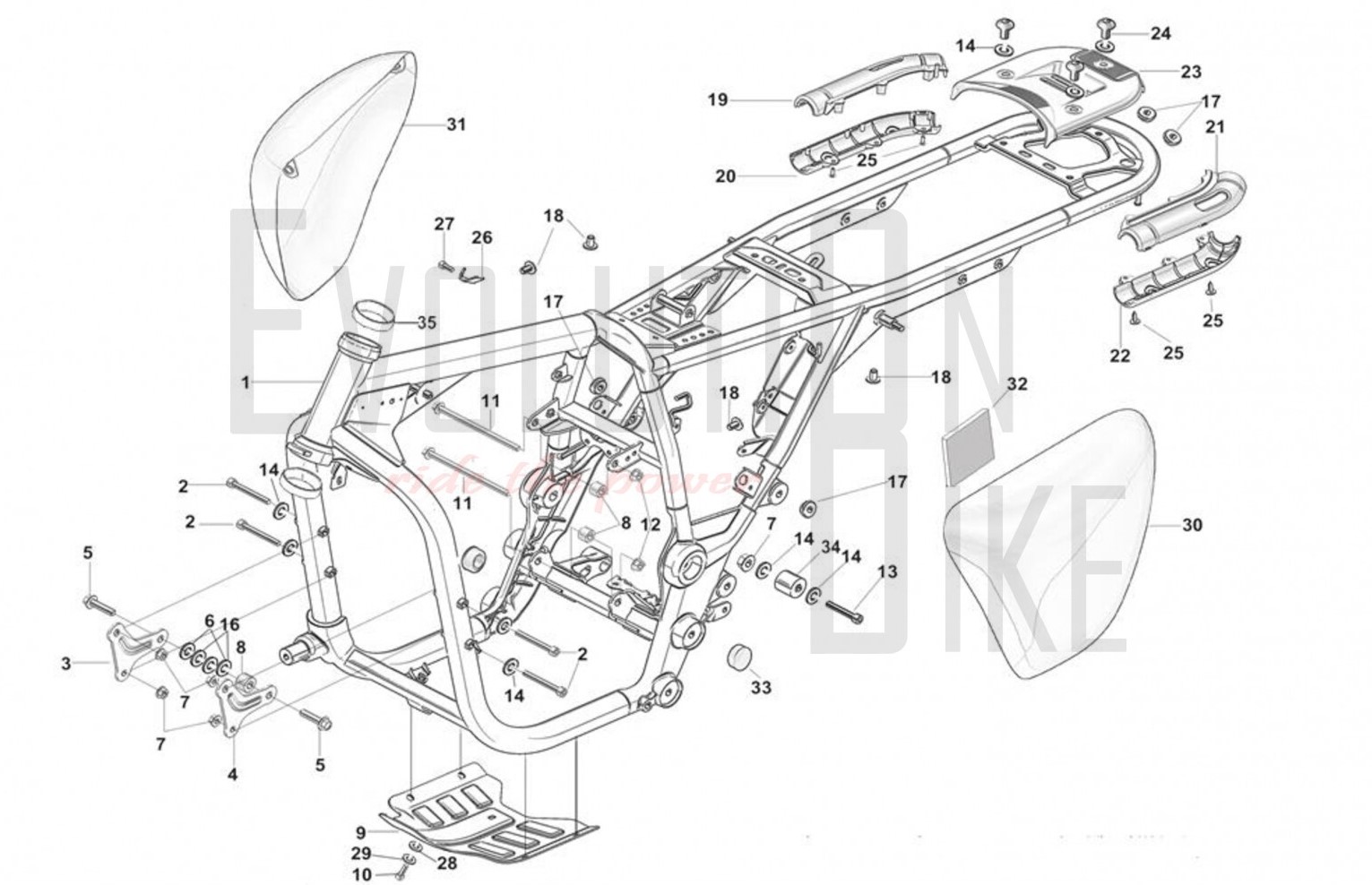

F04 - FRAME ASSEMBLY I
Ref. SKU Description Notes Availability
Price (tax excl.)
1 41012085 FRAME WELDING ASSY Out of Stock
€0,00
2 72031044 SCREW M8X70 Out of Stock
€0,00
3 73070916 FRONT CONNECTING BOARD, R Out of Stock
€0,00
4 73070915 FRONT CONNECTING BOARD, L Out of Stock
€0,00
5 72031051 SCREW-M10X1.25X60 Out of Stock
€0,00
6 72040838 WASHER-D10 Out of Stock
€0,00
7 72020650 NUT M8X18 Out of Stock
€0,00
8 70120451 BUSHD24XD10.5X16.5 Out of Stock
€0,00
9 73033031 ENGINE GUARD Out of Stock
€0,00
10 72031031 BOLT M6×16 Out of Stock
€0,00
11 70020070 BOLT- M10X1.25X165 Out of Stock
€0,00
12 72020651 NUT M10×1.25 Out of Stock
€0,00
13 72031042 SCREW- M8X50 Out of Stock
€0,00
14 72040827 WASHER-8M Out of Stock
€0,00
16 72040842 WASHER D10 Out of Stock
€0,00
17 73010065 SIDE COVER RUBBER RING In Stock
€0,19
1
18 73012510 PAD, VIBRATION DAMPER In Stock
€2,65
1
19 73021495 TRIM PANEL UPPER RIGHT MOUNTING BLOCK Out of Stock
€0,00
20 73021496 TRIM PANEL LOWER RIGHT MOUNTING BLOCK Out of Stock
€0,00
21 73021493 TRIM PLATE LEFT UPPER MOUNTING BLOCK Out of Stock
€0,00
22 73021494 TRIM PLATE LOWER LEFT MOUNTING BLOCK Out of Stock
€0,00
23 73021448 REAR FRAME TRIM PLATE Out of Stock
€0,00
24 72031037 BOLT-M8X16 Out of Stock
€0,00
25 72031058 SELF TAPPING SCREW ST4.2X12 Out of Stock
€0,00
26 73032911 BRACKET,FUEL FILTER Out of Stock
€0,00
27 72031030 SCREW M6X12 Out of Stock
€0,00
28 72040841 WASHER D6 Out of Stock
€0,00
29 72040843 SPRING WASHER D6 Out of Stock
€0,00
30 53026691 LEFT SIDE COVER WHITE Out of Stock
€0,00
30 53026686 LEFT SIDE COVER SILVER GREY Out of Stock
€0,00
31 53036401 RIGHT SIDE COVER WHITE Out of Stock
€0,00
31 53036397 RIGHT SIDE COVER SILVER GREY Out of Stock
€0,00
32 73012461 LEFT SIDE COVER RUBBER PAD I Available on backorder
€1,85
1
33 73012864 FLAT FORKLIFT FRAME DECORATION HOLE Out of Stock
€0,00
34 54320016 TENSION WHEEL ASSY Out of Stock
€0,00
35 46110011 LOWER BEARING UPPER COVER Out of Stock
€0,00
