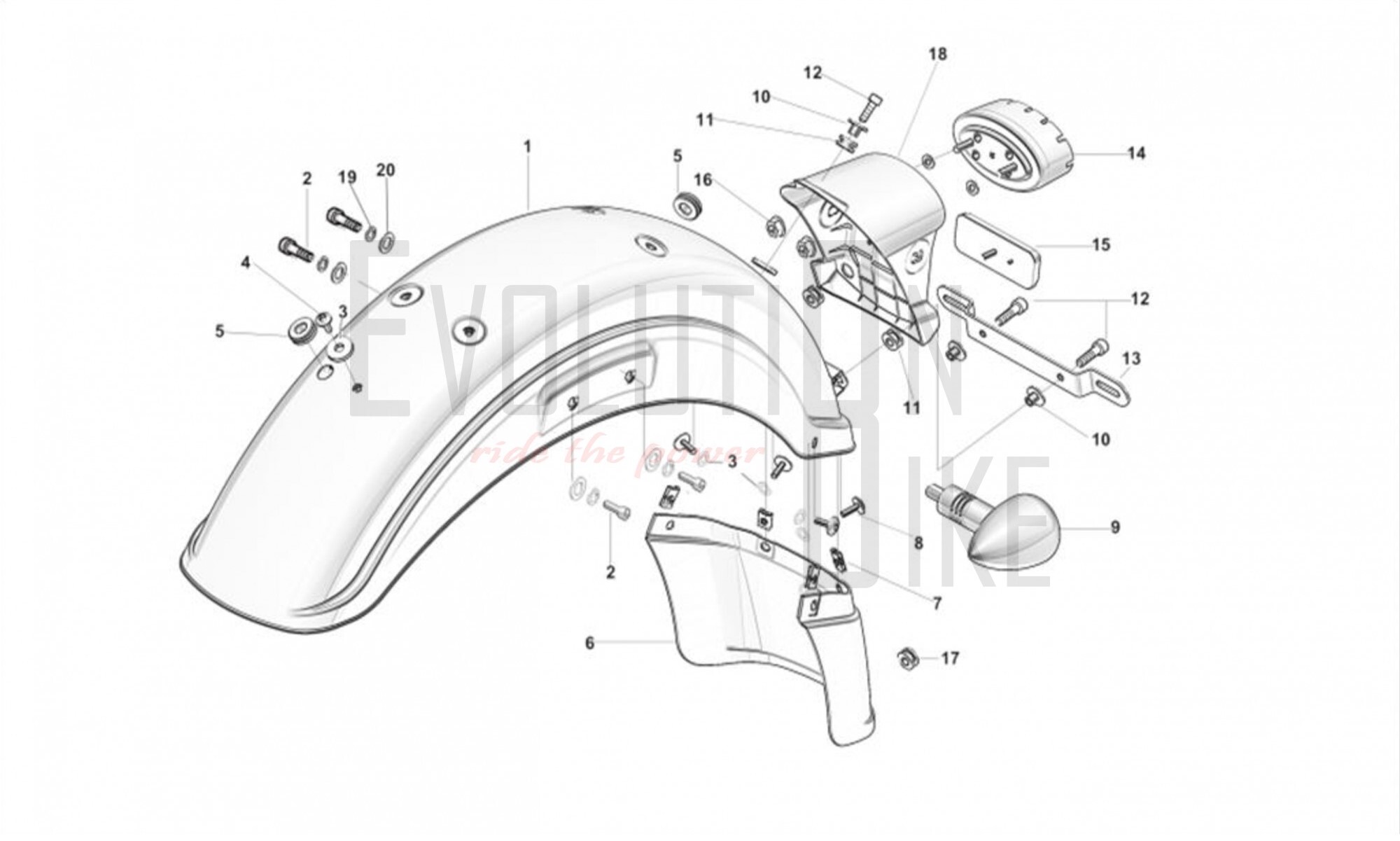

F09 - REAR FENDER ASSY

F02 - AIR CLEANER ASSY F02 - AIR CLEANER ASSY F03 - FUEL TANK FUEL PUMP COMBINATION F03 - FUEL TANK FUEL PUMP COMBINATION F04 - FRAME ASSEMBLY I F04 - FRAME ASSEMBLY I F05 - HANDLEBAR AND CONTROLS F05 - HANDLEBAR AND CONTROLS F06 - FRAME ASSEMBLY II F06 - FRAME ASSEMBLY II F08 - FRONT FORK ASSEMBLY F08 - FRONT FORK ASSEMBLY F09 - REAR FENDER ASSY F09 - REAR FENDER ASSY F10 - FOOTPEGS AND REARSETS F10 - FOOTPEGS AND REARSETS F11 - SEAT ASSY F11 - SEAT ASSY F12 - FORK ASSY F12 - FORK ASSY F13 - WHEELS F13 - WHEELS F14 - EXHAUST SYSTEM F14 - EXHAUST SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F16 - RADIATOR ASSY F16 - RADIATOR ASSY F17 - SIDE CAR FENDER F17 - SIDE CAR FENDER F18 - BASKET ABSORBER F18 - BASKET ABSORBER F19 - SIDE CAR FRAME F19 - SIDE CAR FRAME F20 - BASKET ASSY F20 - BASKET ASSY F21 - LOWER BODY/BASKET SEAT F21 - LOWER BODY/BASKET SEAT F22 - GOOD SHELVES F22 - GOOD SHELVES F23 - BULLET BOX F23 - BULLET BOX F25A - DECAL (SILVER GREY) F25A - DECAL (SILVER GREY) F25B - DECAL (WHITE) F25B - DECAL (WHITE)
F09 - REAR FENDER ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 53170943 REAR MUDGUARD WHITE Out of Stock
€0,00
1 53170944 REAR MUDGUARD SILVER GREY Out of Stock
€0,00
2 72031041 SCREW -M8X45 Out of Stock
€0,00
3 72040841 WASHER D6 Out of Stock
€0,00
4 72031031 BOLT M6×16 Out of Stock
€0,00
5 73012329 GUIDE, CABLE Available on backorder
€0,20
1
6 73021453 REAR SECTION OF REAR MUDGUARD Out of Stock
€0,00
7 72160025 NUT CLAMP M6 Out of Stock
€0,00
8 72031030 SCREW M6X12 Out of Stock
€0,00
9 32050247 RH REAR INDICATOR Out of Stock
€0,00
10 70120469 FLANGED BUSH6.5X18X8 Out of Stock
€0,00
11 73012806 H-SHAPED GASKET Out of Stock
€0,00
12 72031032 SCREW M6X20 Out of Stock
€0,00
13 73280121 BRACKET, REAR LICENSE PLATE Out of Stock
€0,00
14 32060578 TAILLIGHT Out of Stock
€0,00
15 73060100 REAR REFLECTOR Out of Stock
€0,00
16 72020658 NUT M6 Out of Stock
€0,00
17 73012164 GROMMET Available on backorder
€0,20
1
18 73220114 BRACKET, TAILLIGHT Out of Stock
€0,00
19 72040844 SPRING WASHER D8 Out of Stock
€0,00
20 72040837 WASHER 8MM Out of Stock
€0,00
