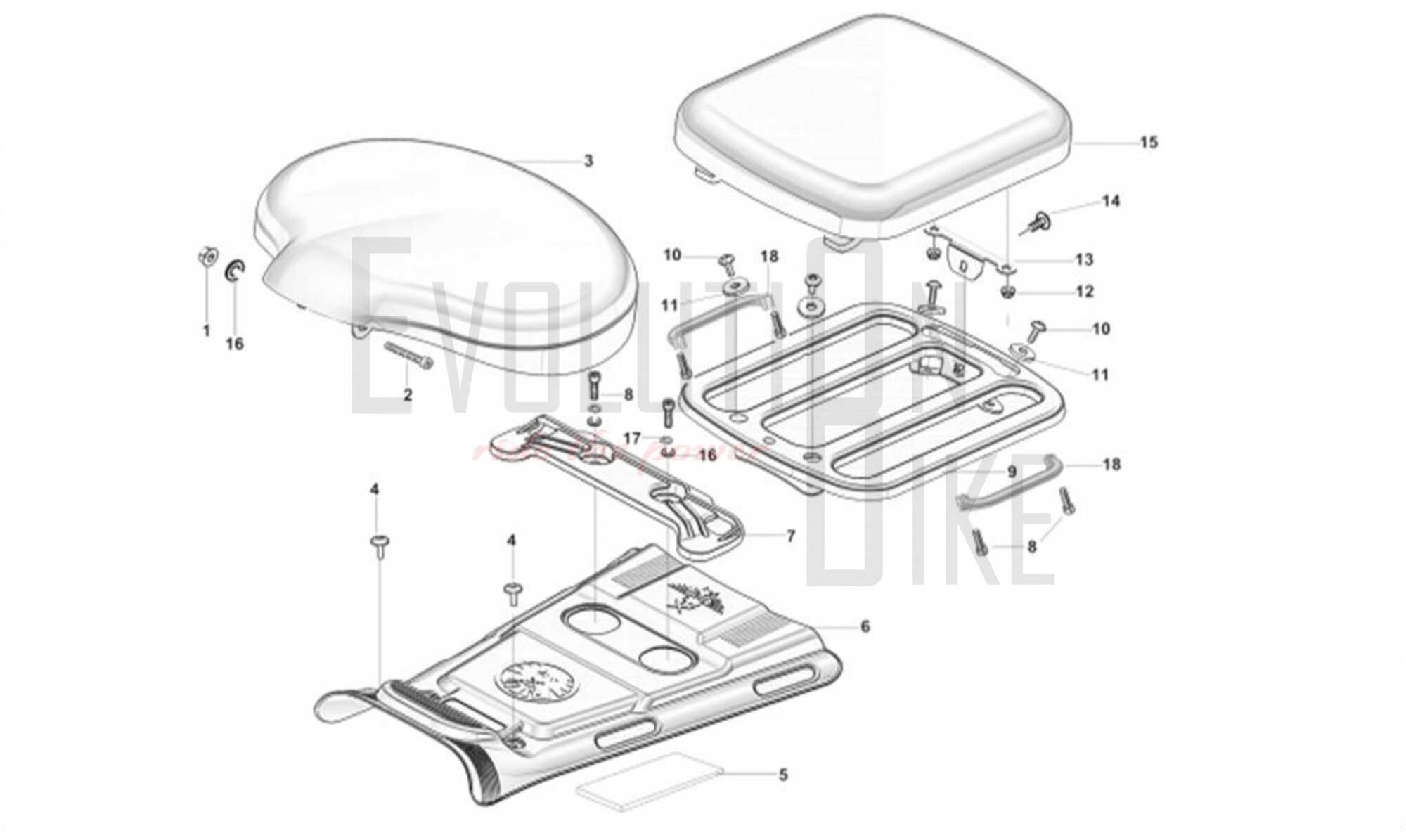

F11 - SEAT ASSY

F02 - AIR CLEANER ASSY F02 - AIR CLEANER ASSY F03 - FUEL TANK FUEL PUMP COMBINATION F03 - FUEL TANK FUEL PUMP COMBINATION F04 - FRAME ASSEMBLY I F04 - FRAME ASSEMBLY I F05 - HANDLEBAR AND CONTROLS F05 - HANDLEBAR AND CONTROLS F06 - FRAME ASSEMBLY II F06 - FRAME ASSEMBLY II F08 - FRONT FORK ASSEMBLY F08 - FRONT FORK ASSEMBLY F09 - REAR FENDER ASSY F09 - REAR FENDER ASSY F10 - FOOTPEGS AND REARSETS F10 - FOOTPEGS AND REARSETS F11 - SEAT ASSY F11 - SEAT ASSY F12 - FORK ASSY F12 - FORK ASSY F13 - WHEELS F13 - WHEELS F14 - EXHAUST SYSTEM F14 - EXHAUST SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F15 - HYDRAULIC BRAKE ABS SYSTEM F16 - RADIATOR ASSY F16 - RADIATOR ASSY F17 - SIDE CAR FENDER F17 - SIDE CAR FENDER F18 - BASKET ABSORBER F18 - BASKET ABSORBER F19 - SIDE CAR FRAME F19 - SIDE CAR FRAME F20 - BASKET ASSY F20 - BASKET ASSY F21 - LOWER BODY/BASKET SEAT F21 - LOWER BODY/BASKET SEAT F22 - GOOD SHELVES F22 - GOOD SHELVES F23 - BULLET BOX F23 - BULLET BOX F25A - DECAL (SILVER GREY) F25A - DECAL (SILVER GREY) F25B - DECAL (WHITE) F25B - DECAL (WHITE)
F11 - SEAT ASSY
Ref. SKU Description Notes Availability
Price (tax excl.)
1 72020650 NUT M8X18 Out of Stock
€0,00
2 72031045 SCREW M8X80 Out of Stock
€0,00
3 41161902 FRONT SEAT WHITE Out of Stock
€0,00
3 41161919 FRONT SEAT SILVER GREY Out of Stock
€0,00
4 72031030 SCREW M6X12 Out of Stock
€0,00
5 73012461 LEFT SIDE COVER RUBBER PAD I Available on backorder
€1,85
1
6 41350176 PLATE BASE,FRONT SEAT Out of Stock
€0,00
7 41350150 FRONT SEAT CUSHION ADAPTER PLATE Out of Stock
€0,00
8 72031038 BOLT-M8×20 Out of Stock
€0,00
9 41081060 REAR GOODS SHELF Out of Stock
€0,00
10 72031031 BOLT M6×16 Out of Stock
€0,00
11 73012426 RUBBER FLAT PAD (6X16) Out of Stock
€0,00
12 72020658 NUT M6 Out of Stock
€0,00
13 73033025 SEAT CUSHION BACK SUPPORT Out of Stock
€0,00
14 72040836 WASHER-6MM Out of Stock
€0,00
15 41161903 REAR SEAT WHITE Out of Stock
€0,00
15 41161920 REAR SEAT SILVER GREY Out of Stock
€0,00
16 72040837 WASHER 8MM Out of Stock
€0,00
17 72040843 SPRING WASHER D6 Out of Stock
€0,00
18 41081066 REAR ARMREST Out of Stock
€0,00
